Xdepe Electrical Enclosures Achieve IP67 Certification

Introduction

Xdepe's outdoor electrical enclosures have officially completed IP67 protection testing in accordance with IEC 60529 standards. The evaluation was conducted and certified by an independent third-party testing laboratory, confirming complete dust protection and resistance to temporary water immersion.

The certified product range includes custom low-voltage control panels, PLC/VFD cabinets, and power distribution boxes configured for outdoor utility, marine, and industrial applications.

Understanding IP67: IP65 vs IP66 vs IP67

The Ingress Protection (IP) standard uses two numbers to classify enclosure sealing performance. The first digit (6) indicates complete protection against solid dust ingress. The second digit (7) certifies that the cabinet prevents water entry when submerged in fresh water at a depth of 1 meter for 30 minutes.

Unlike IP65 and IP66 enclosures, which are tested against low and high-pressure directional water jets, IP67 enclosures are rated for temporary submersion. This makes them suitable for installations exposed to standing water, heavy rain, or high water levels.

Comparison of Standard IP Ingress Ratings

Laboratory Test Procedure

To verify compliance with the IP67 standard, sample units from Xdepe's production line underwent standard laboratory test procedures:

● Dust Chamber Test: Enclosures were placed in a circulating dust environment for 8 hours under internal negative pressure, resulting in zero dust accumulation inside the cabinet.

● Water Immersion Test: Sealed units were submerged under 1 meter of fresh water for 30 minutes. Subsequent internal inspection verified zero water penetration.

● Electrical Safety Verification: Post-test insulation resistance and dielectric testing confirmed that internal electrical isolation remained fully intact.

Structural Engineering for IP67 Sealing

Achieving an IP67 seal relies on specific manufacturing controls and enclosure design choices:

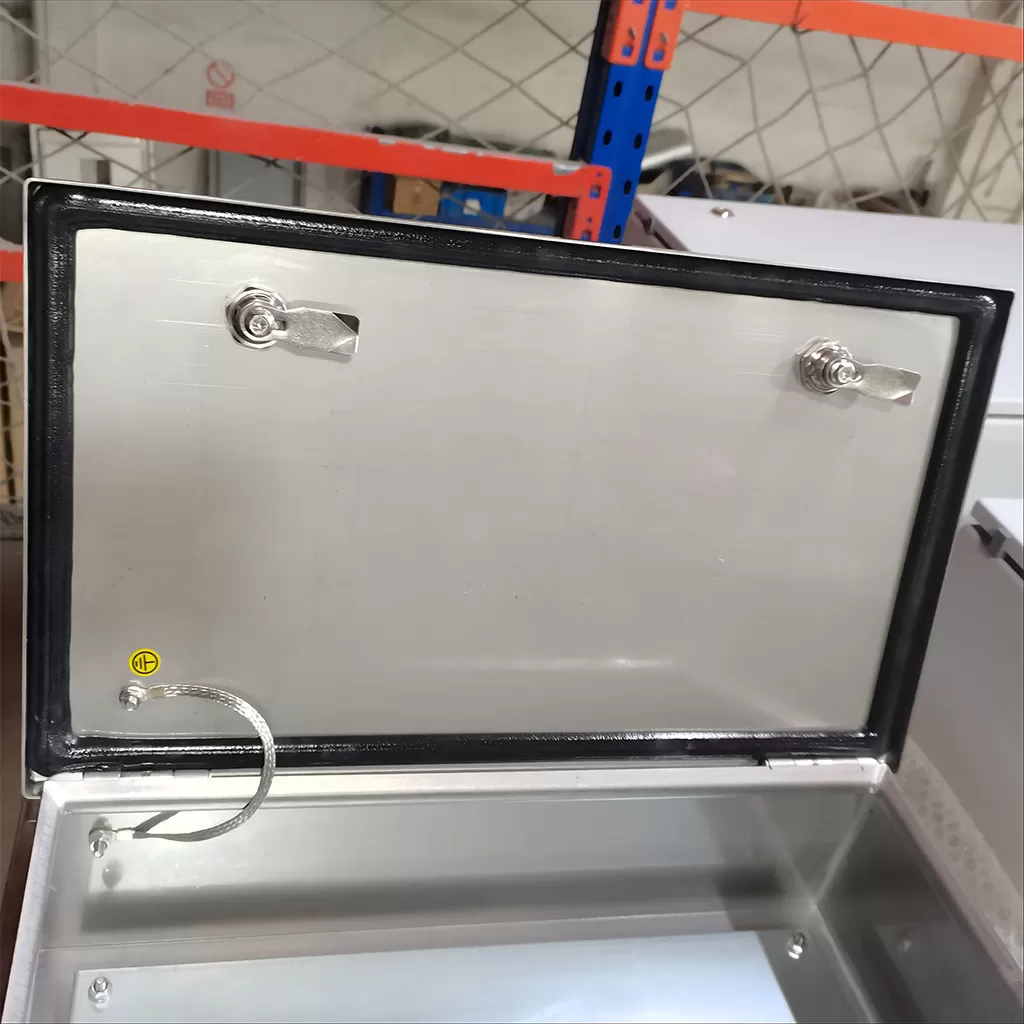

● Poured-in-Place Polyurethane Gasket: A continuous polyurethane gasket is applied along the inner door channel using automated CNC foaming equipment to ensure even compression.

● Multi-Point Latching: 3-point or 4-point door locking mechanisms distribute clamping force evenly across the gasket surface to prevent edge deflection.

● Seamless Welded Enclosures: Outer enclosure seams are continuously welded and ground smooth to eliminate micro-gaps along joint corners.

● IP67 Cable Entry System: Cable glands and entry plates are fitted with matched seals and thread O-rings to maintain the ingress rating at wire penetration points.

Material Options for Corrosive Environments

In addition to liquid sealing, long-term enclosure durability depends on selecting housing materials compatible with local site conditions.

Xdepe offers IP67 enclosures in 304 and 316L stainless steel, as well as powder-coated galvanized steel. Grade 316L stainless steel is recommended for marine and chemical processing environments where airborne salts or chemical vapors cause surface corrosion on standard metals.

Field Applications

IP67-rated electrical cabinets prevent water-related equipment failures across several demanding operating environments:

● Solar PV and Energy Storage: Combiner boxes and battery management enclosures installed in open field locations.

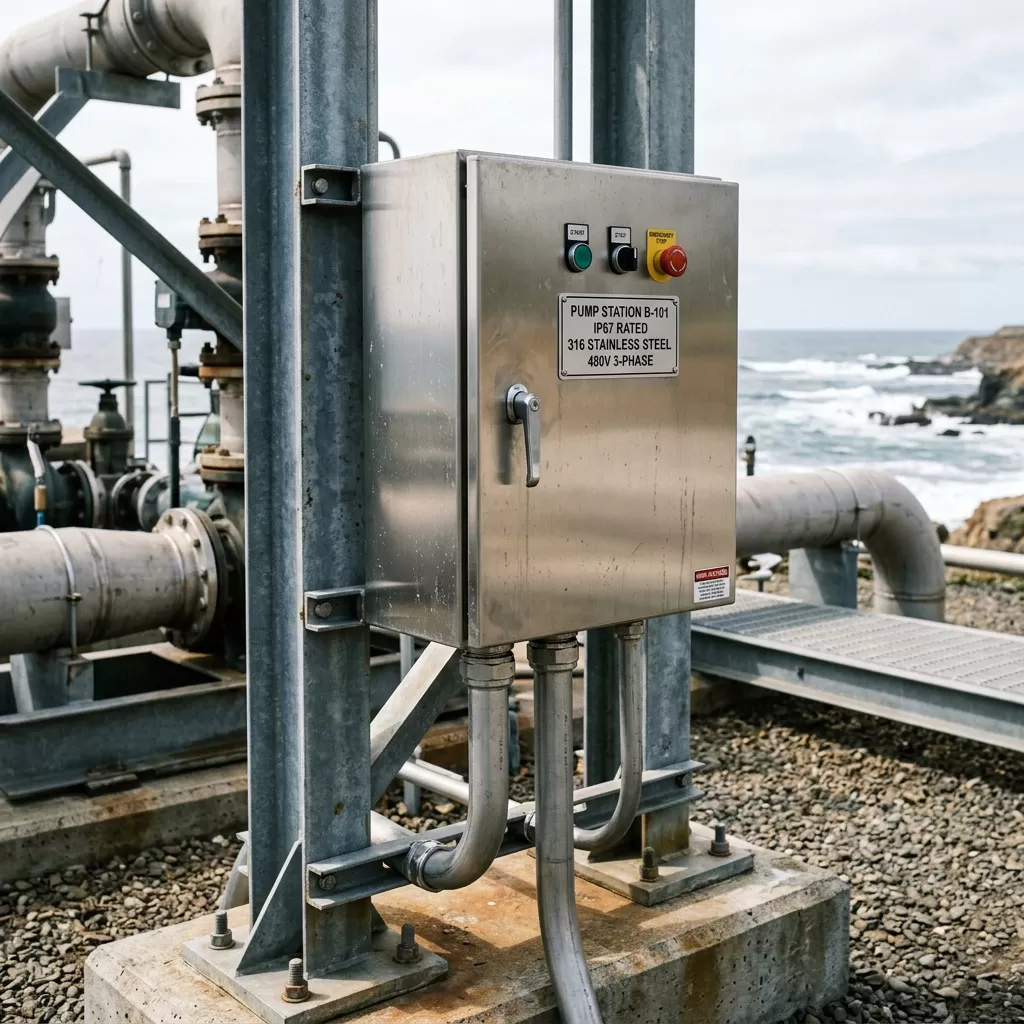

● Coastal and Port Infrastructure: Dockside power distribution, pump control systems, and desalination facilities.

● Wastewater and Drainage Facilities: Pumping stations, underground utility vaults, and water treatment plants subject to periodic flooding.

● Food and Beverage Processing: Automated equipment enclosures regularly exposed to liquid clean-in-place procedures.

Technical Documentation and Custom Manufacturing

Xdepe manufactures custom electrical enclosures, low-voltage switchgear, and automation control panels based on customer-provided CAD or EPLAN schematics.

Complete third-party IP67 test reports, dimensional drawings, and material specification sheets are available upon request for engineering submittals. Contact our technical team to discuss project specifications or request a detailed quotation.
