The Challenges Faced by the Food Processing Plant
Catastrophic Power Outages: Frequent unexpected power outages and localized grid fluctuations caused massive disruptions in their continuous food processing lines. These unpredictable electrical drops resulted in severe product spoilage, missed delivery deadlines, and massive financial losses daily.
Dangerous System Overloads: The facility operated diverse heavy-duty equipment, including large air compressors and automated packaging machines. Their outdated electrical framework lacked adequate capacity, frequently triggering dangerous overloads during peak production hours and threatening worker safety.
Inefficient Fault Diagnosis: Diagnosing electrical faults was a nightmare due to messy, undocumented wiring and a lack of real-time monitoring. Maintenance teams wasted hours tracing basic short circuits, causing agonizingly long machine downtimes and crippling productivity.
Severe Environmental Damage: The food processing environment is notoriously harsh, constantly exposing electrical panels to high moisture, corrosive cleaning chemicals, and dense airborne dust. Standard cabinets quickly rusted, leading to severe internal electrical failures and safety hazards.
Our Engineered Solutions
Tiered Protection Architecture: We implemented a comprehensive four-tier power protection system, isolating faults from the main incoming cabinet down to terminal boxes. This ensures that a localized short circuit never triggers a catastrophic, full-factory electrical blackout.
Custom Capacity Matching: Our customized low-voltage power distribution box perfectly matches various load requirements. From the massive 4000A incoming cabinet to precise 100A terminal boxes, the system handles heavy machinery safely without risking any dangerous overloads.

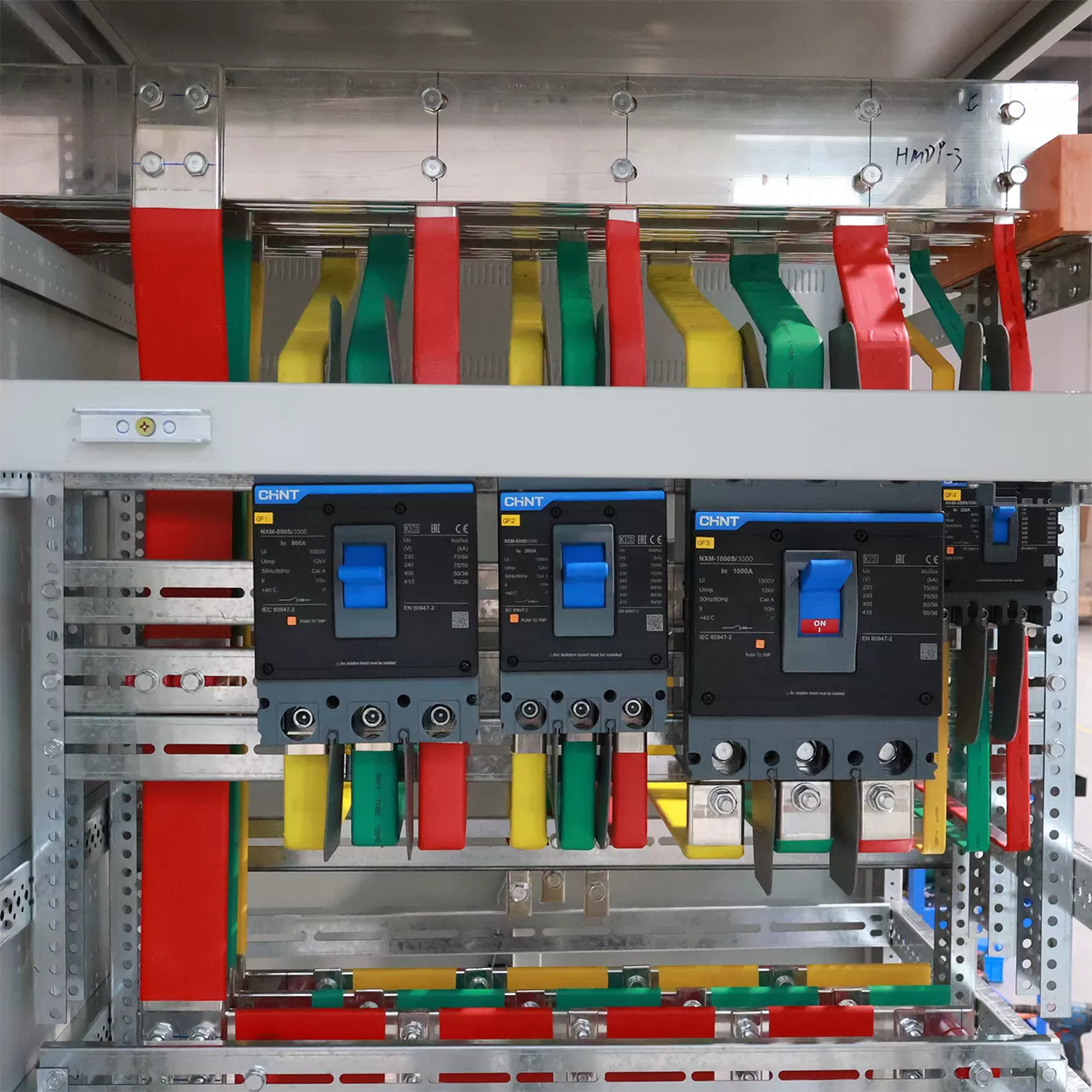

Smart Centralized Management: We integrated standardized CHINT components with extremely clear circuit labeling and real-time digital monitoring meters. This intelligent layout empowers electricians to instantly locate electrical faults, drastically minimizing costly machine downtime and boosting efficiency.

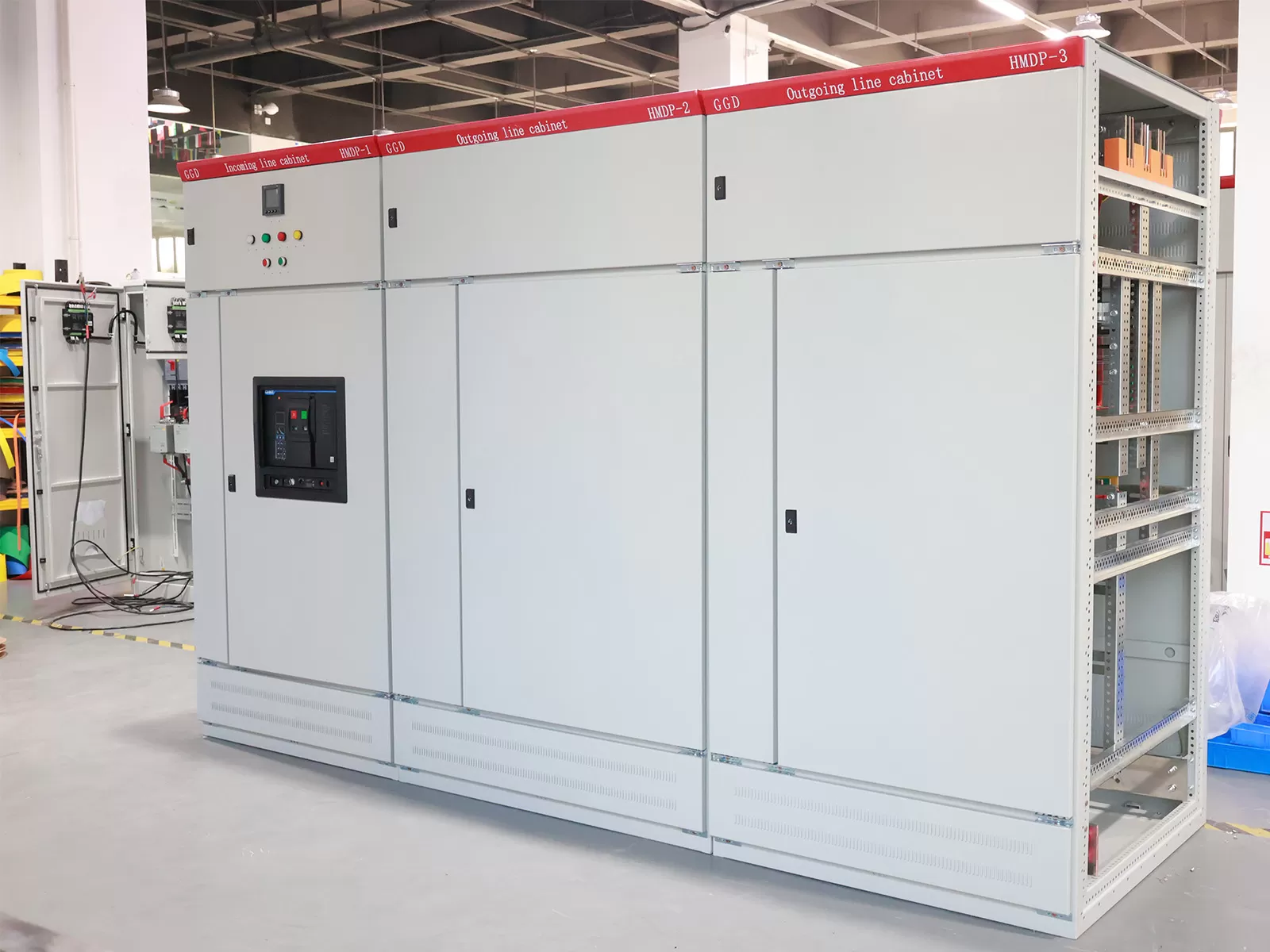

Industrial-Grade Defenses: All distribution cabinets feature premium cold-rolled steel treated with a robust electrostatic powder coating. This industrial-grade defense provides exceptional dust, moisture, and corrosion resistance, perfectly securing internal components within the harshest manufacturing environments.
Premium Hardware Configurations & Technical Details

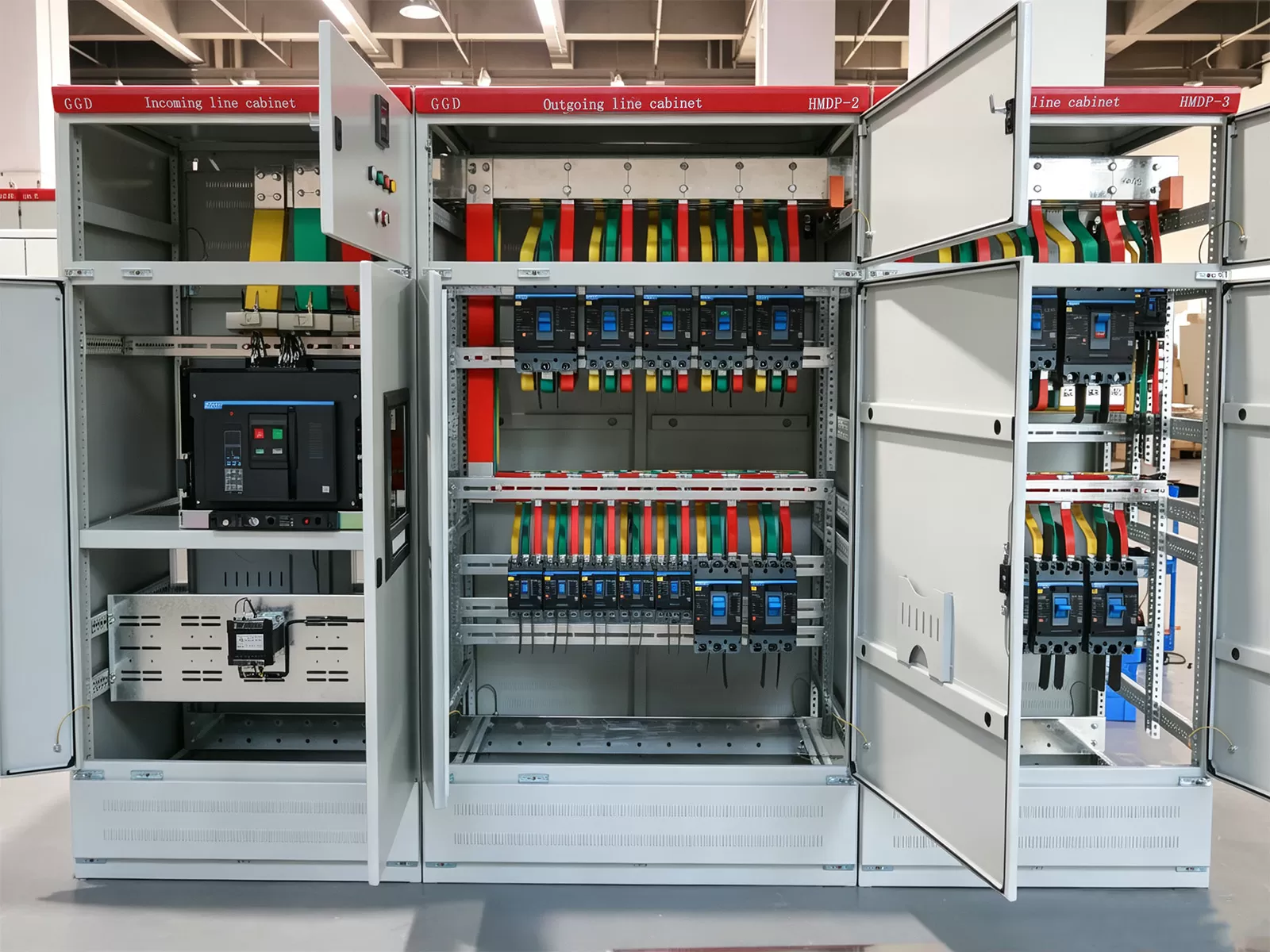

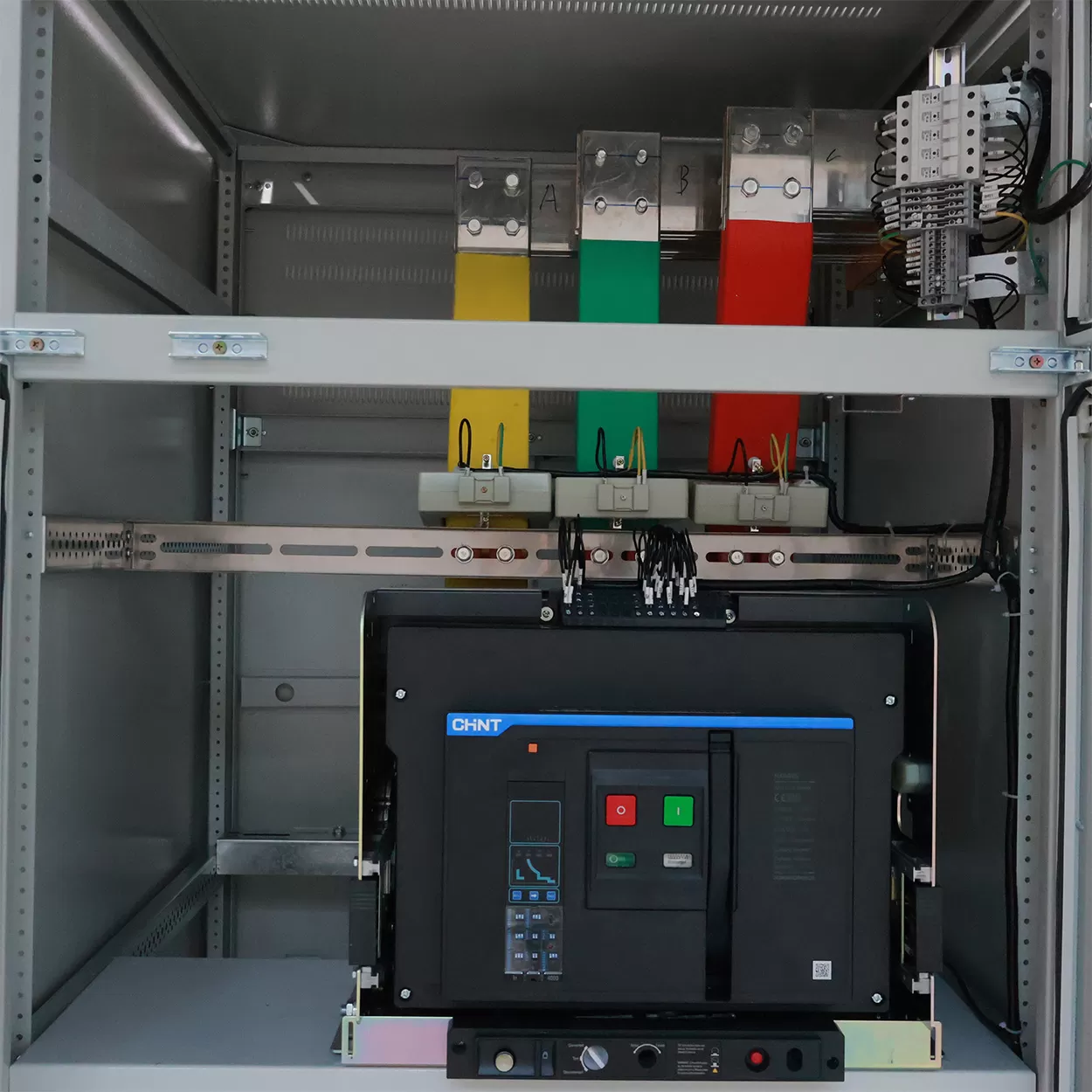

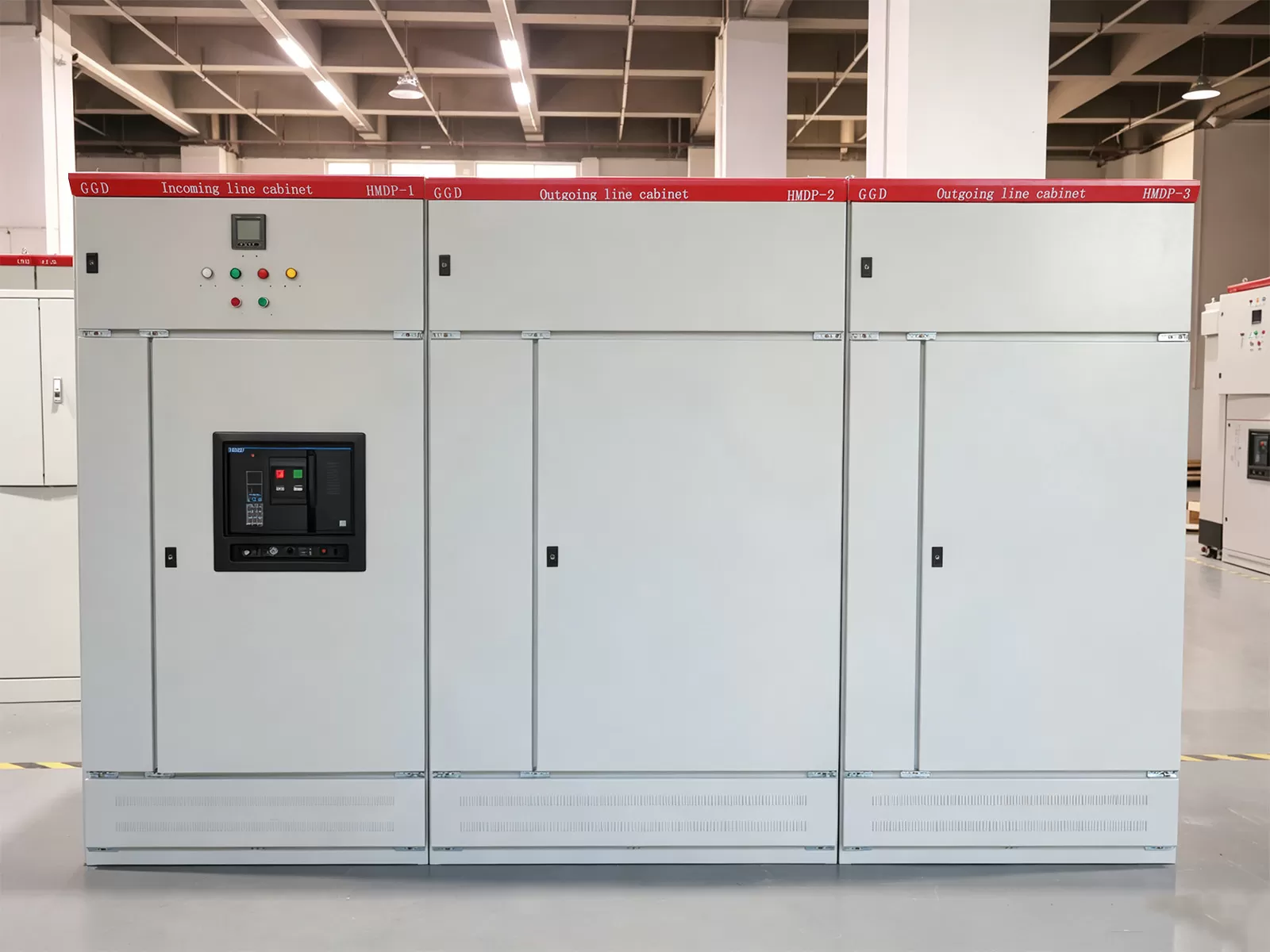

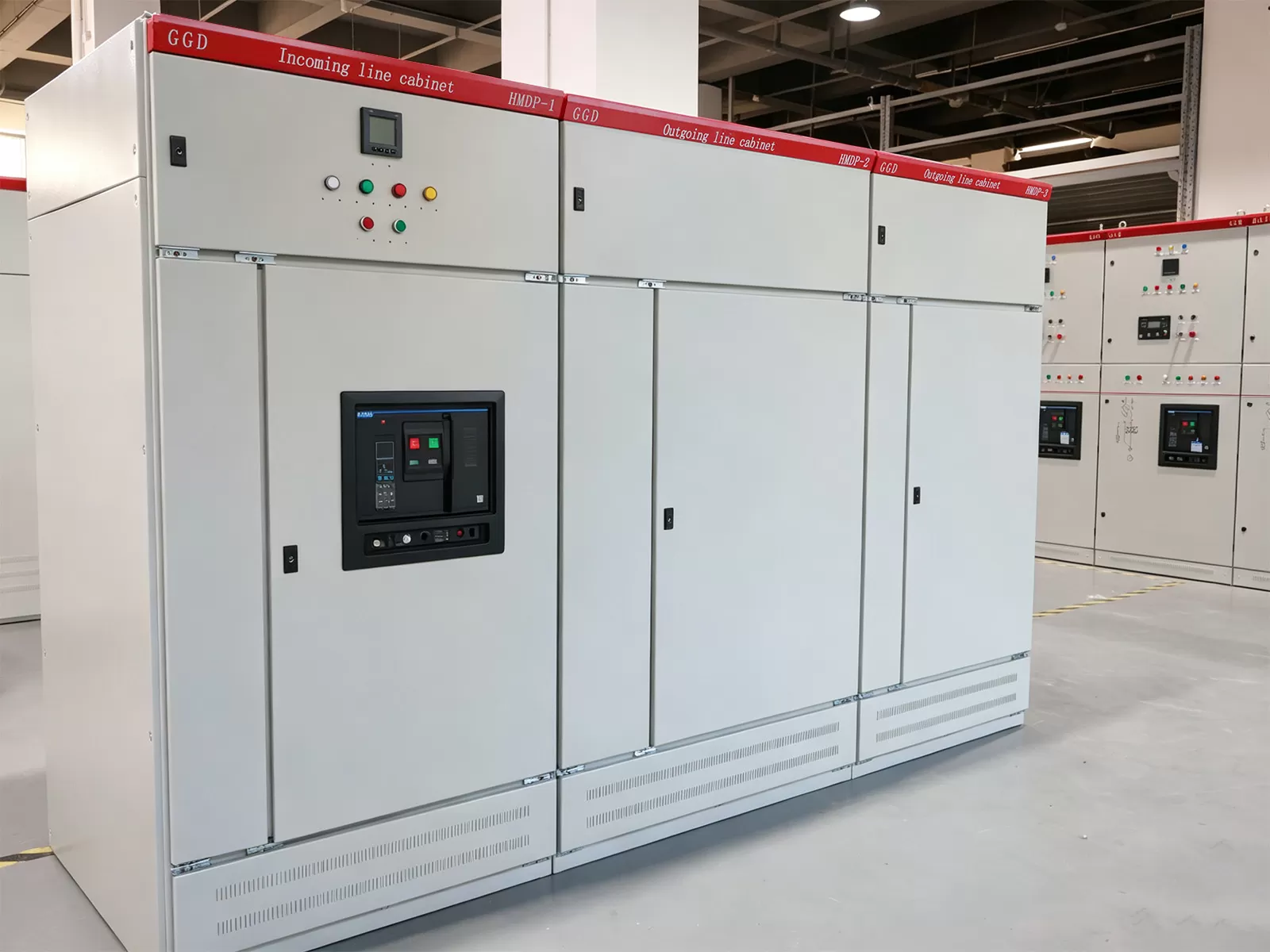

4000A Main Power Hub: The robust 4000A main incoming cabinet acts as the ultimate power hub, flawlessly handling total low-voltage currents from transformers while delivering primary, heavy-duty overload and short-circuit protection for the entire manufacturing plant.

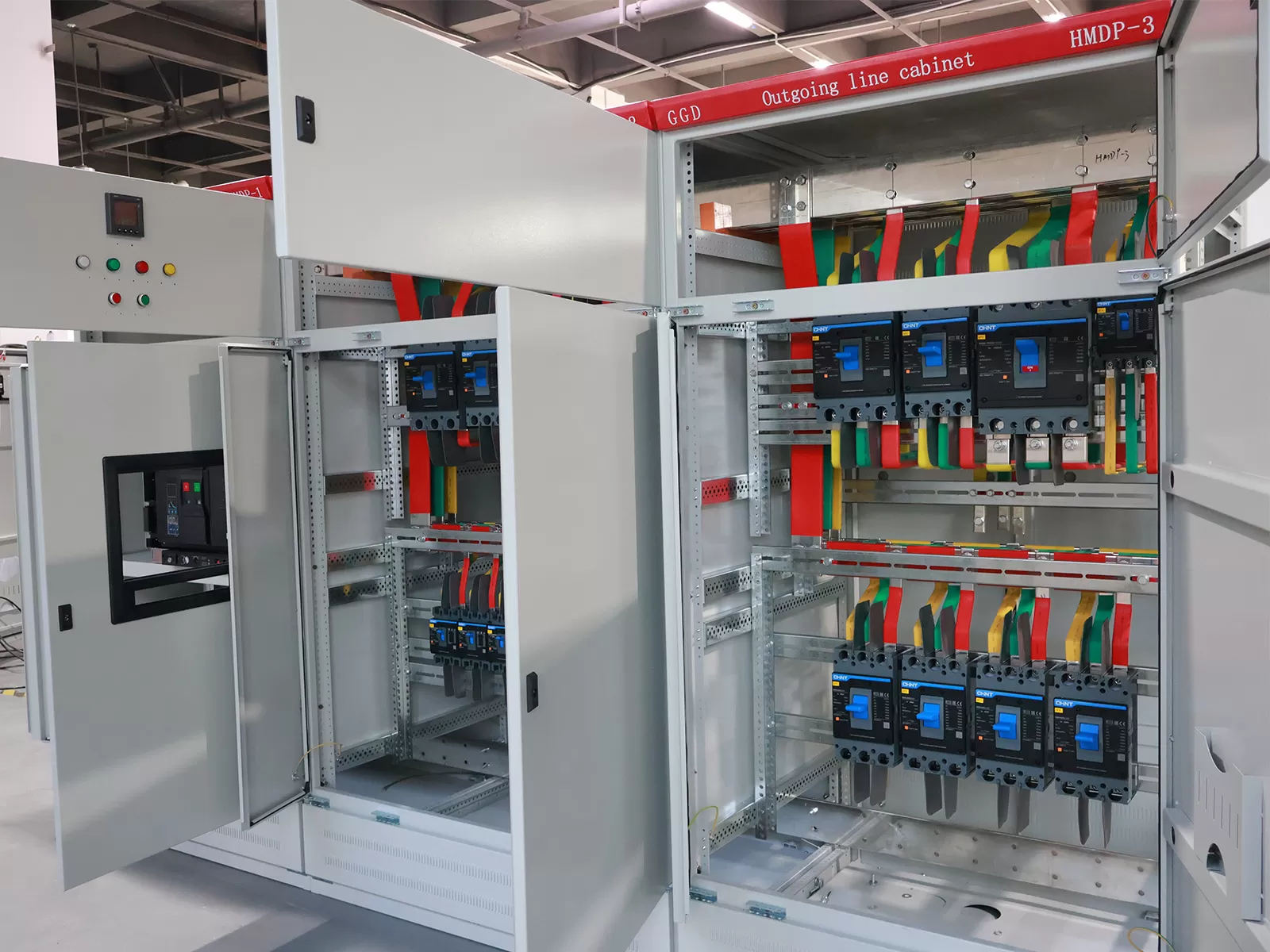

Main Distribution Branches: High-capacity 1000A and 800A outgoing cabinets efficiently divide the primary power supply into distinct production workshops, offering a crucial second layer of electrical protection for specialized clusters of high-power industrial manufacturing machinery.
Workshop Distribution Boxes: Multi-circuit mixed distribution boxes seamlessly integrate dual power needs, providing stable electricity for heavy motive equipment while simultaneously managing localized lighting and socket power within dynamic, fast-paced industrial production workshop environments.
Terminal Equipment Protection: Dedicated terminal distribution boxes ranging from 100A to 400A directly interface with individual processing machines like CNC lathes. They deliver precise, localized, final-stage short-circuit and overload protection to safeguard critical individual assets.
Tailored Advantages
Guaranteed Safety Compliance: The entire low-voltage power distribution cabinet architecture rigorously adheres to national electrical design standards, effortlessly passing strict fire and safety inspections while completely eliminating operational risks and potential regulatory penalties.
Uninterrupted Reliability: By utilizing a strategic, tiered protection system combined with standardized premium hardware, the frequency of electrical faults drops dramatically. This extends the mean time between failures, indirectly maximizing overall factory production output.
Flexible Scalability: The inherently modular design easily accommodates future factory expansions. Facility managers can effortlessly integrate additional circuits or upgrade to higher-capacity components without completely overhauling the existing power distribution infrastructure.
Energy Optimization: Advanced digital power meters provide granular, real-time consumption data. This precise tracking empowers management to identify hidden energy waste, cleverly optimize production schedules, and significantly drive down long-term operational electricity costs.
Ideal Applications & Environments
Heavy Machinery Manufacturing: An optimal electrical backbone for medium to large mechanical processing plants and automotive parts manufacturers, effortlessly supporting dense clusters of high-voltage machinery like heavy stamping presses and automated welding robotics.
Food & Beverage Processing: Perfectly suited for food deep-processing facilities where moisture, strict hygiene protocols, and continuous conveyor belt operations demand highly reliable, corrosion-resistant, and easily washable low-voltage power distribution enclosures.
Metalworking & Stamping: Provides robust, stable power solutions tailored for hardware stamping factories that experience intense, fluctuating electrical loads and require highly durable enclosures that can withstand significant ambient industrial vibration and dust.
Complex Packaging Lines: Highly recommended for automated packaging and logistics centers requiring numerous independent circuit branches to power extensive networks of sorting conveyors, sensors, and customized assembly line robotics safely and continuously.
