The Challenges Faced by the Chemical Plant
Hazardous Atmosphere Risks: The facility operates within a Class I hazardous area, where the presence of flammable methane and ethane gases necessitates strict adherence to international explosion-proof standards to prevent catastrophic ignition risks.
Extreme Downtime Costs: Extreme production sensitivity means that even a single hour of unscheduled downtime translates into hundreds of thousands of dollars in financial losses, making power stability and system reliability the absolute priority.
Harmonic Interference Issues: High-power motors and pumping equipment generate significant electrical harmonics, which frequently interfere with the accuracy of sensitive flow meters and pressure transmitters, leading to process instability and critical instrumentation failure.
Operational Safety Hazards: Manual intervention for electrical adjustments or troubleshooting inside the production zone exposes maintenance personnel to hazardous chemical vapors, necessitating a safer, more automated approach to system diagnostics and routine operational monitoring.
Our Engineered Solutions
Explosion-Proof Architecture: Our design adopts custom 316L stainless steel flameproof cabinets. All seams and entry points feature certified explosion-proof glands, ensuring internal sparks are strictly contained to prevent any potential ignition risks.
Redundant Automation Systems: The system integrates redundant PLC architectures with hot-standby CPU configurations to ensure continuous control logic. This eliminates single-point failures, guaranteeing that the oil facility maintains operational stability during hardware component malfunctions.

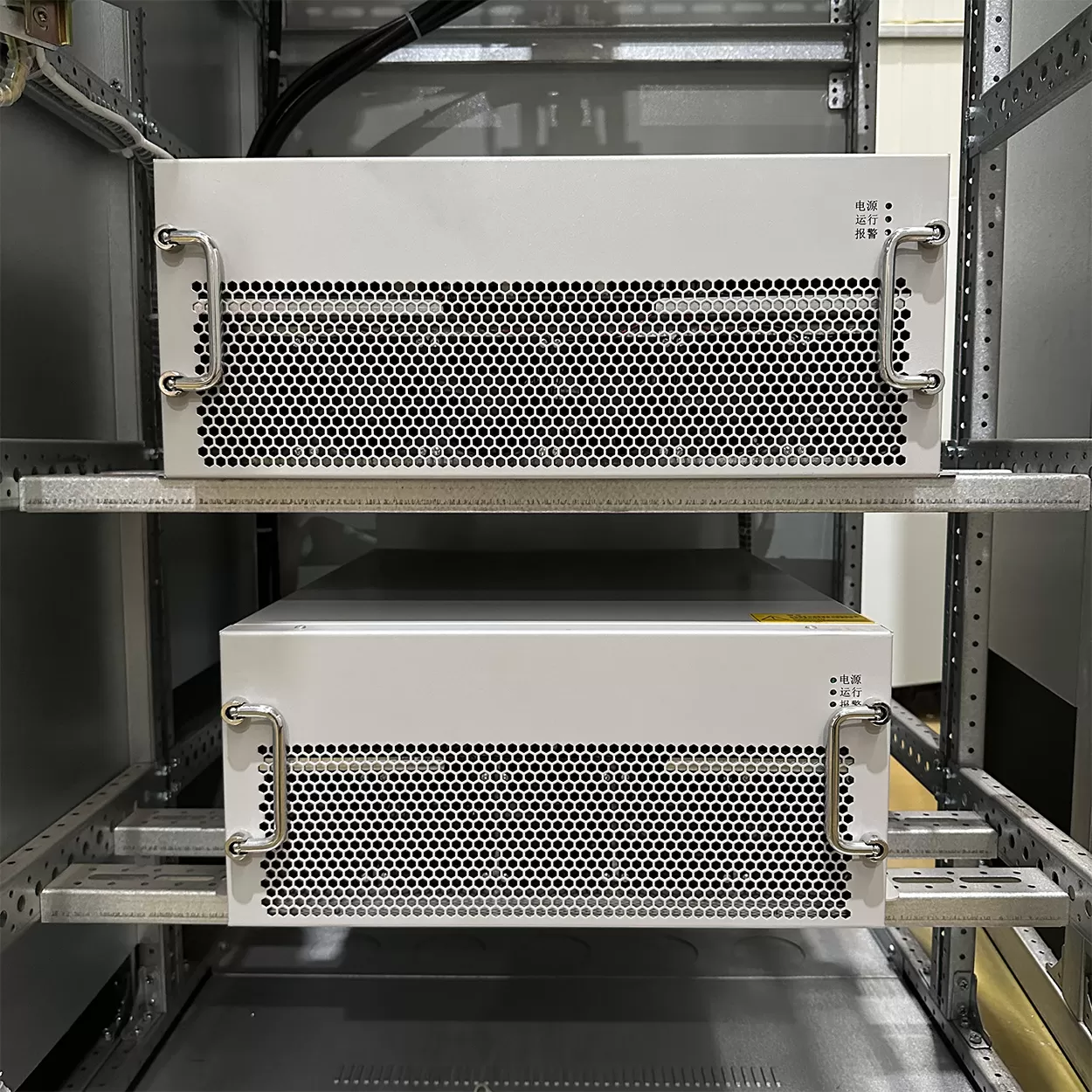

Advanced Harmonic Filtering: To resolve power quality issues, we deployed active harmonic filter cabinets that effectively mitigate distortions, keeping THDi below 5%. This protects sensitive plant instrumentation from electrical noise and extends motor lifespan.
Safe Remote Maintenance: Our solution incorporates remote programming and real-time diagnostic capabilities, allowing engineers to adjust parameters and identify system faults from a safe control room, thereby significantly reducing hazardous field operations.
Premium Hardware Configurations & Technical Details
High-Performance PLC Core: The system integrates redundant, fail-safe control logic that guarantees reliable automation for heavy-duty pumps and critical oil separation processes, ensuring the entire automation chain remains operational without human intervention.

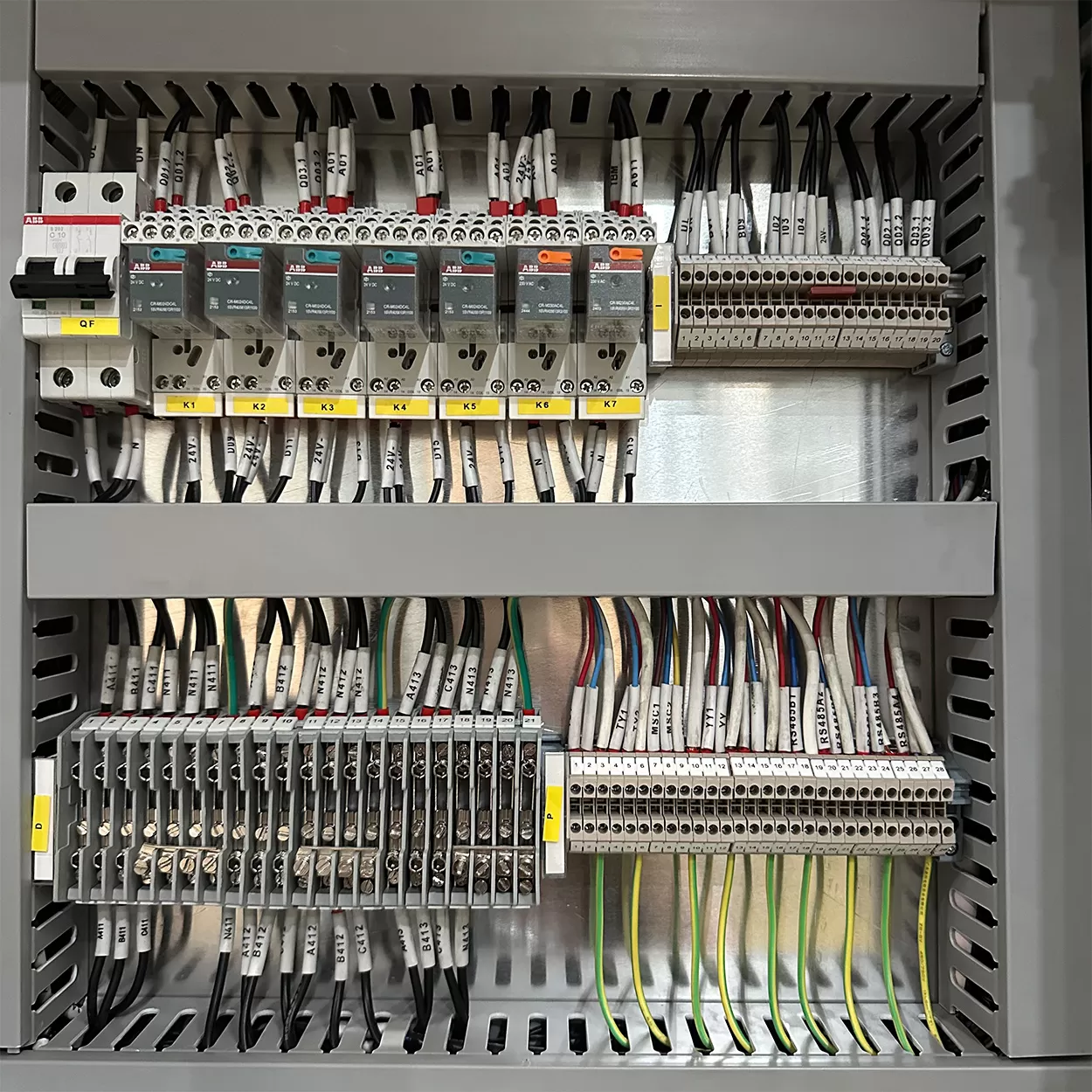

Corrosion-Resistant Enclosure: Each cabinet utilizes high-grade 316L stainless steel, ideal for harsh, corrosive oil environments. The internal wiring layout ensures the perfect separation of strong and weak electrical signals to prevent electromagnetic interference.

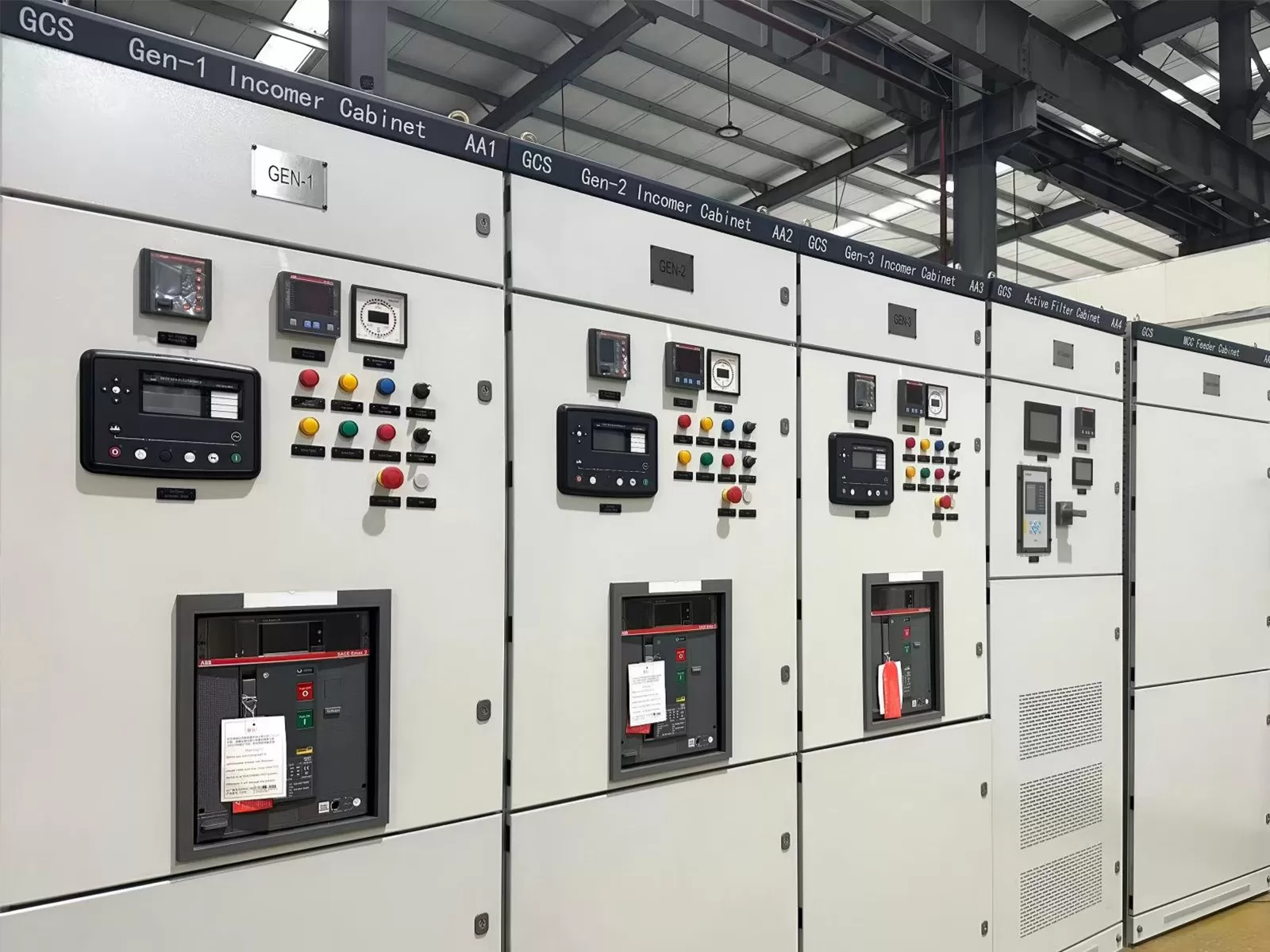

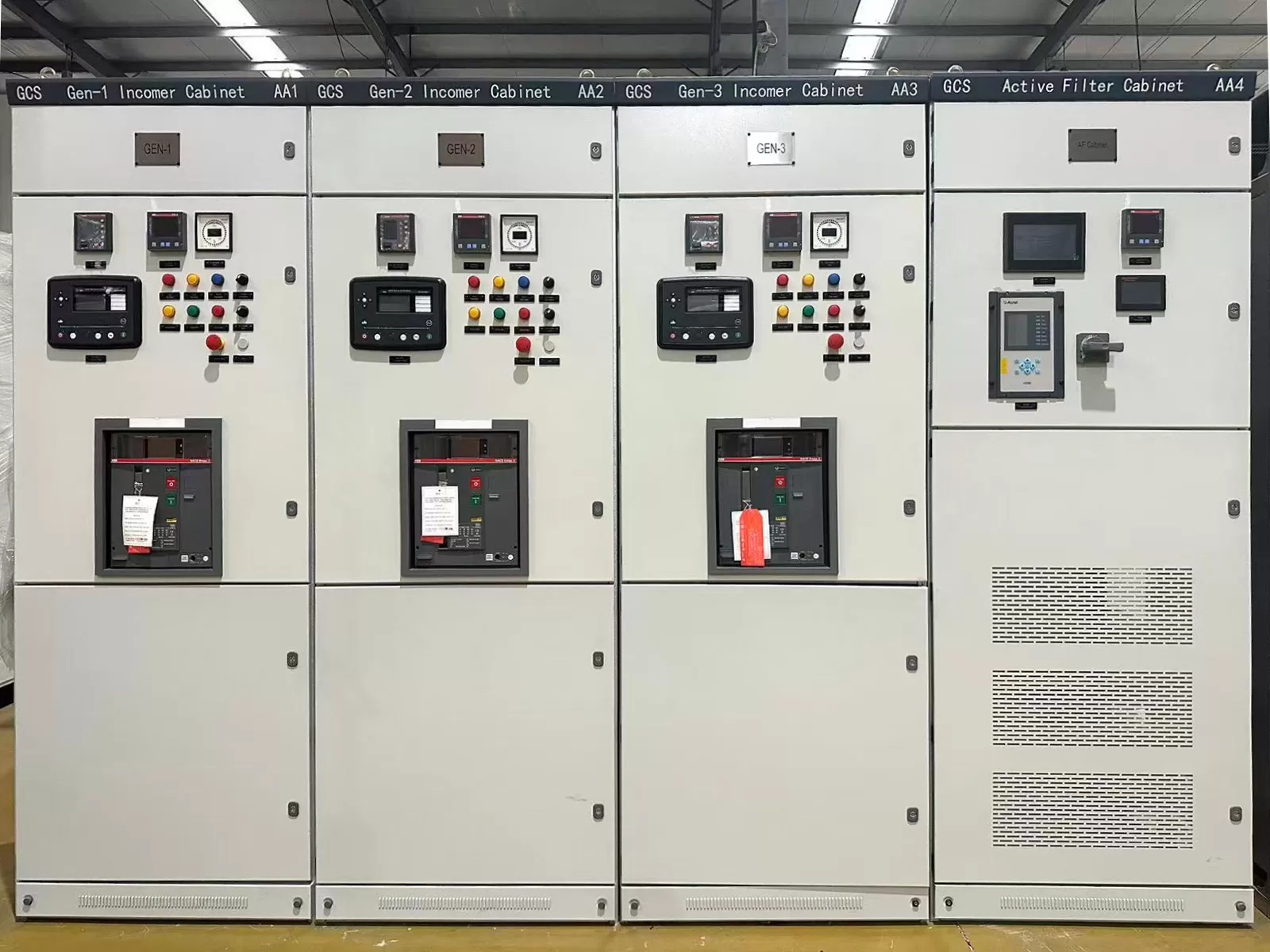

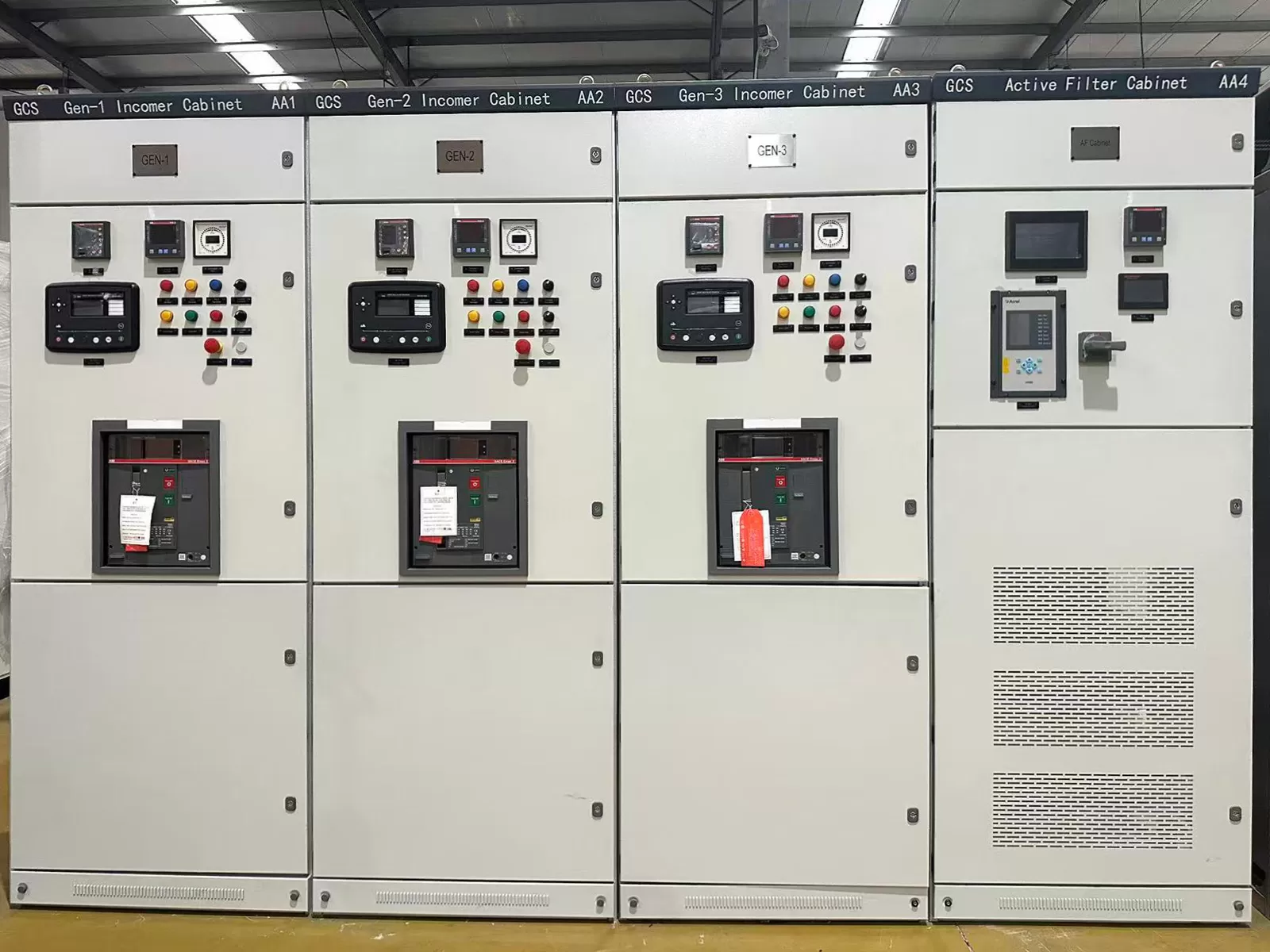

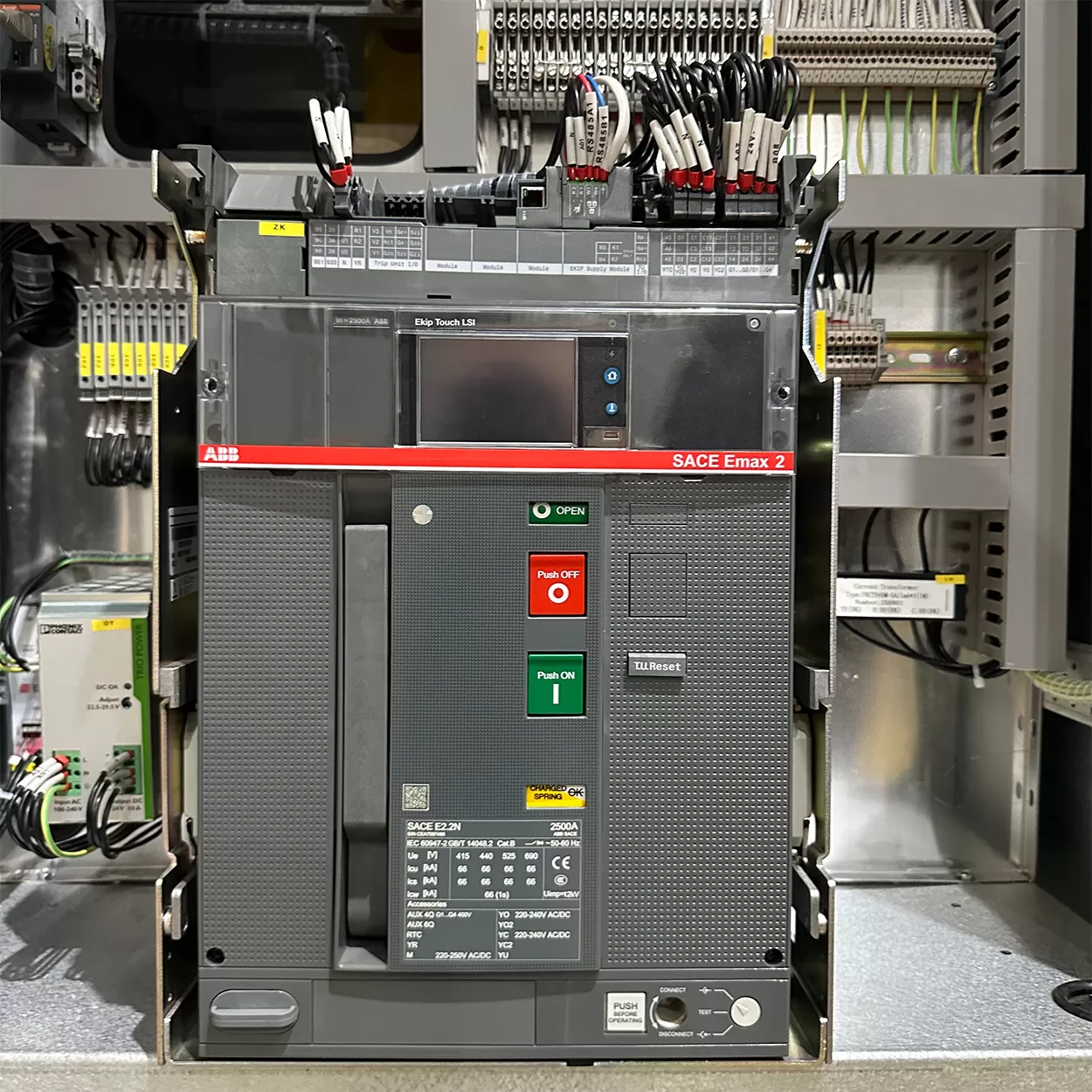

World-Class Switchgear: We utilize premium circuit breakers and heavy-duty switchgear to provide robust, long-term power distribution, ensuring that our GCS low-voltage switchgear delivers exceptional breaking capacity and safety under high-load industrial conditions.
Dynamic Harmonic Mitigation: The integration of active harmonic filtering technology dynamically cleans the power supply, effectively mitigating harmonic distortion caused by industrial frequency converters and variable speed drives, protecting downstream electrical assets from degradation.

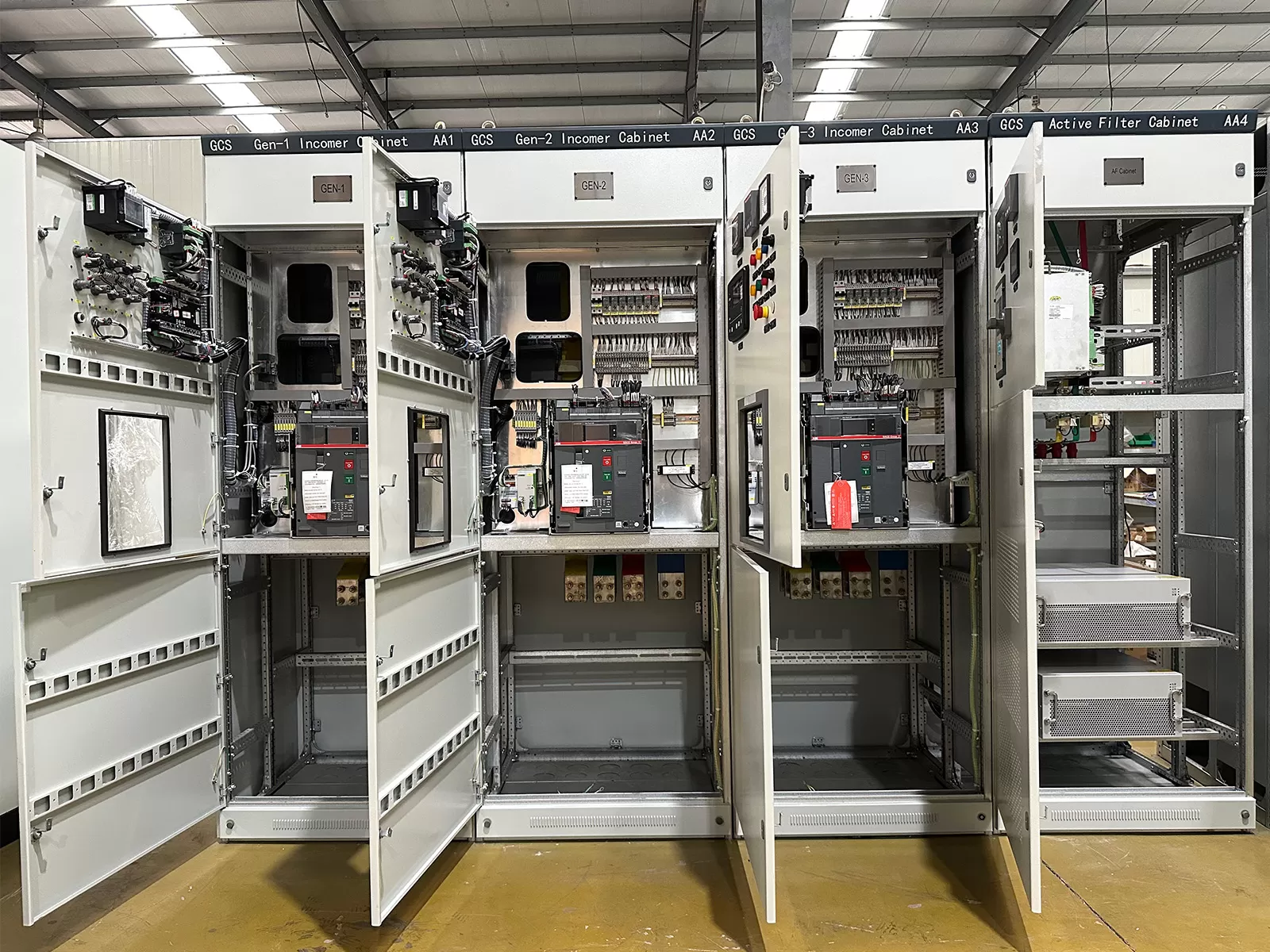

Modular Withdrawable Design: The GCS withdrawable architecture features standardized drawer units, allowing for "live" maintenance and the hot-swapping of components without interrupting the production flow of the entire facility, maximizing operational uptime during routine inspections.
Tailored Advantages
Uncompromising Safety Standards: By meeting ATEX and IECEx certification standards, our system provides the ultimate safety layer, ensuring that electrical operations within hazardous zones do not trigger explosions or endanger plant personnel.
Guaranteed Production Continuity: With dual power supply and redundant control logic, our system provides the high availability required by refineries, effectively guaranteeing that the facility meets its annual downtime targets of under four hours.
Reduced Operational Costs: Intelligent monitoring and remote diagnostic capabilities eliminate the need for manual, on-site troubleshooting, which significantly lowers the administrative and labor costs associated with maintaining electrical systems in dangerous, high-risk areas.
Extended Equipment Lifecycle: By eliminating harmonic distortions and providing stable power management, our solutions protect expensive motors and instrumentation from electrical stress, significantly extending their service life and reducing long-term replacement capital expenditure.
Seamless Scalability: The GCS withdrawable architecture is inherently modular, allowing plant managers to easily add new feeder units or upgrade automation capabilities as the oil facility expands, without requiring major structural electrical overhauls.
Ideal Applications & Environments

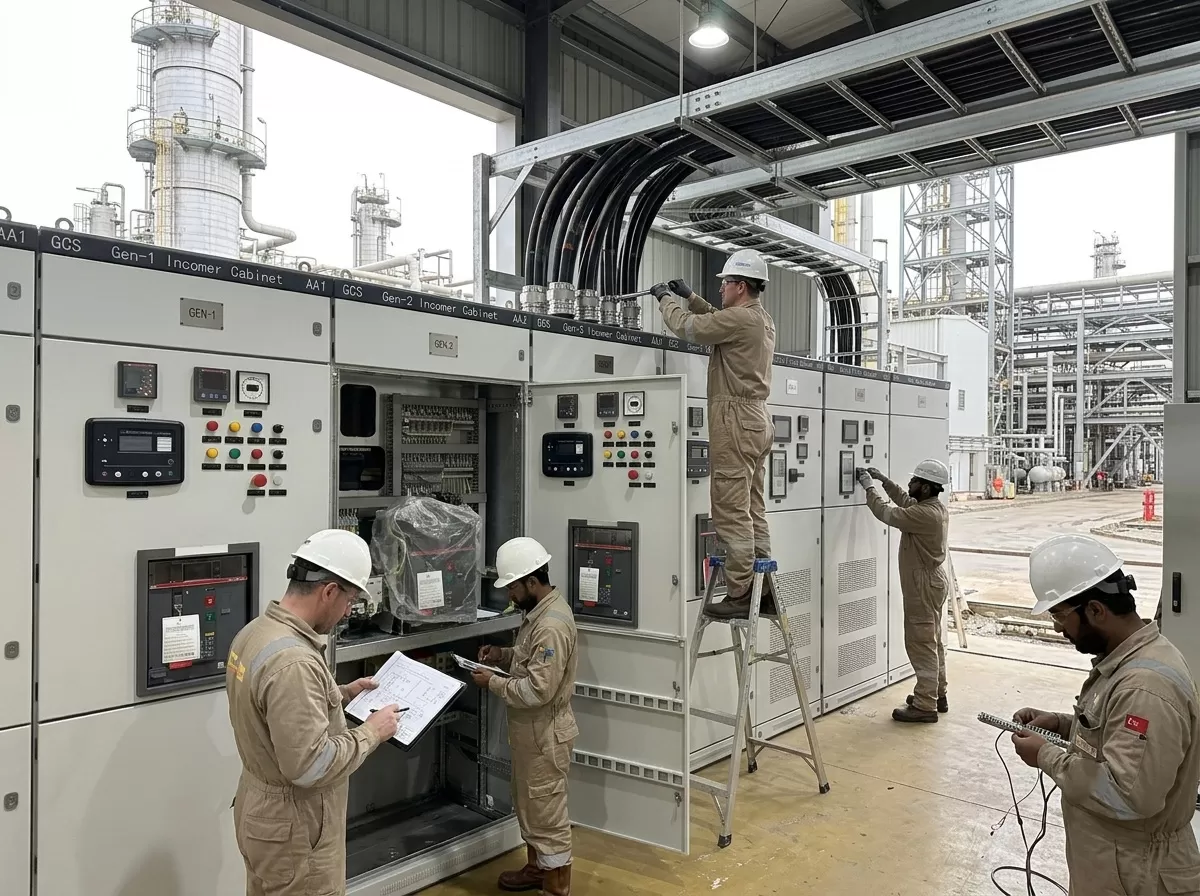

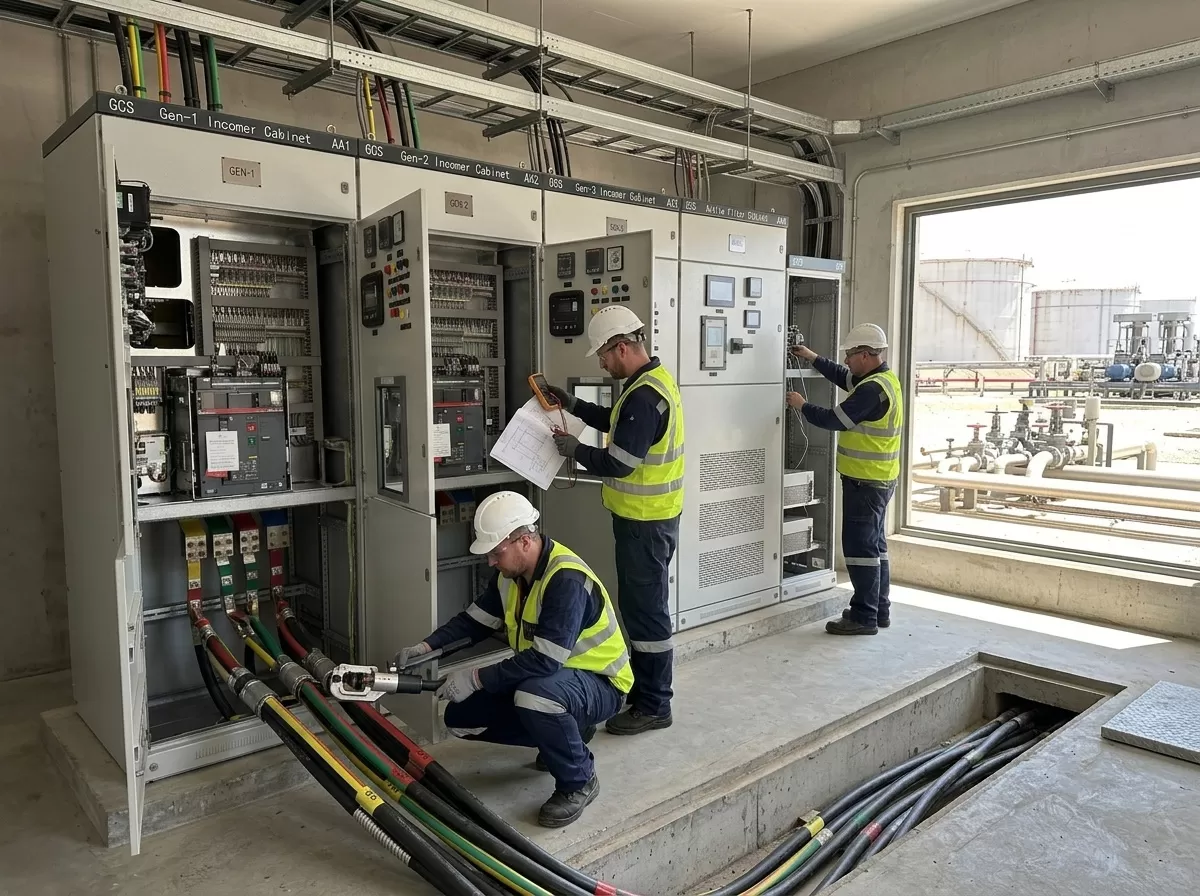

Refinery Production Zones: Perfectly suited for primary oil refining and distillation units where continuous operation and high-temperature, explosive-gas environments demand extremely reliable, heavy-duty electrical distribution and control infrastructure for the entire facility.
Crude Oil Storage Tank Farms: Designed to operate safely in large-scale storage areas where volatile organic compounds are present, ensuring spark-free electrical operation for pumping systems, real-time monitoring sensors, and safety lighting networks.
Petrochemical Synthesis Plants: Ideal for chemical processing facilities that require high-precision control of pressure, flow, and temperature, supported by our robust automation redundancy and interference-resistant electrical distribution panels for critical processes.
Offshore Drilling Platforms: With high-grade corrosion resistance and vibration-proof construction, this system is an excellent choice for offshore applications facing salt-spray environments and challenging maritime operating conditions that require compact, reliable switchgear.
