The Challenges Faced by the Oil Field
Harsh Environment: The Nigerian oilfield environment is extremely harsh, featuring high humidity, heavy dust, and corrosive airborne chemicals. Standard equipment rapidly deteriorated, causing frequent electrical faults, severe safety risks, and unacceptable operational downtime for the entire extraction facility.
Continuous High-Load: Heavy-duty drilling equipment and continuous pumping operations require massive, uninterrupted power. The client’s previous system struggled with severe voltage fluctuations and frequent overloads, leading to unexpected shutdowns that stalled critical daily production targets and schedules.
Explosion & Safety Hazards: Operating in a highly volatile petrochemical zone, the risk of explosive gases is a constant threat. The client urgently required stringent safety mechanisms to prevent arcing, accidental contact, and potential catastrophic fires within the distribution network.
Inefficient Maintenance: Their outdated, chaotic wiring system made fault diagnosis incredibly time-consuming. Maintenance teams spent hours identifying specific circuit issues, drastically extending repair times, increasing labor costs,and significantly reducing the overall productivity of the oilfield operations.
Our Engineered Solutions
Anti-Corrosive Enclosure: We engineered thickened cold-rolled steel cabinets featuring multi-layer electrostatic anti-corrosion coating and IP40 protection. This robust design completely seals out corrosive gases, heavy oil, and dust, ensuring long-term structural integrity and protecting internal components perfectly.
Heavy-Duty Load Management: Utilizing premium Schneider circuit breakers and T3 tinned copper busbars, our system handles immense currents up to 6300A effortlessly. This configuration smoothly absorbs motor startup surges, guaranteeing a highly stable, continuous power supply for uninterrupted extraction.
Advanced Safety & Isolation: We implemented independent isolated chambers and strict electrical interlocking mechanisms. Alongside dual-layer safety doors and transparent insulation covers, this physically separates high-voltage zones, eliminating arcing risks and ensuring absolute compliance with rigorous petrochemical explosion-proof standards.
Smart Wiring & DCS Integration: We deployed standardized corrugated pipe wiring, clear terminal numbering, and high-precision current transformers. This clean layout connects seamlessly with the plant’s DCS platform, allowing rapid remote monitoring, instant fault location, and significantly faster, safer maintenance procedures.
Premium Hardware Configurations & Technical Details

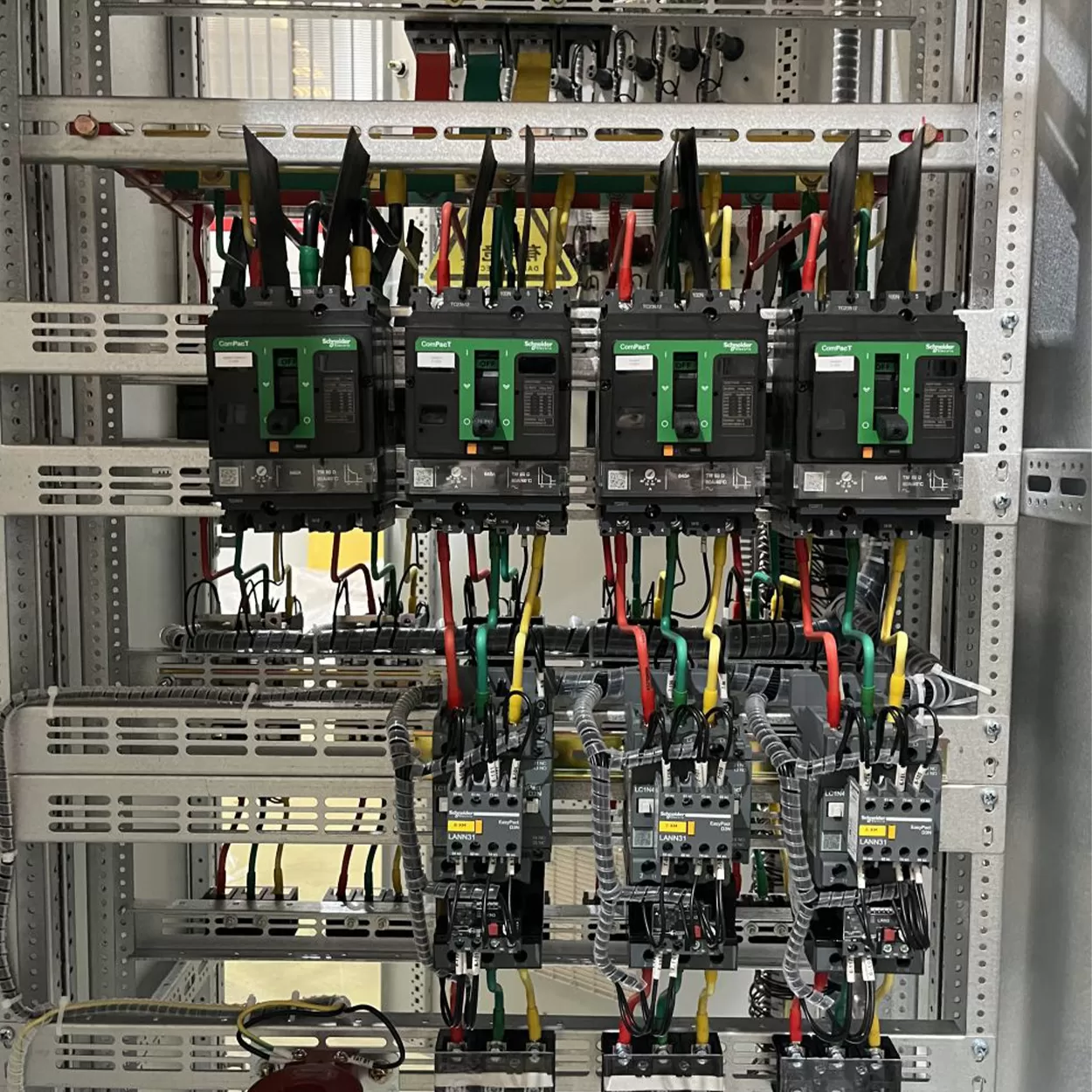

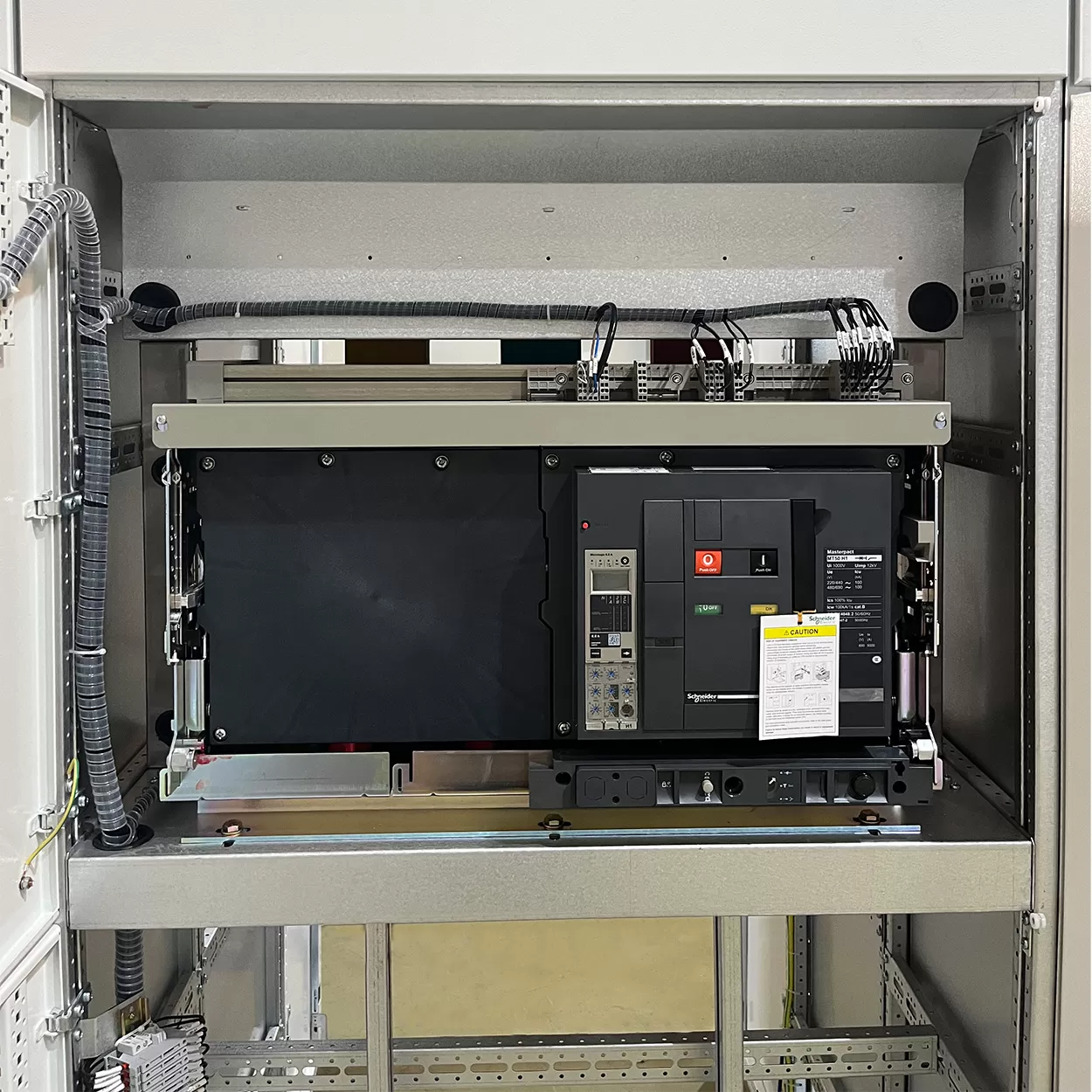

Premium Component Integration: The entire system integrates authentic Schneider ComPact circuit breakers and TeSys contactors. These premium-grade components deliver exceptional anti-overload performance, easily withstanding voltage fluctuations to ensure 24/7 continuous operation in heavy-duty oilfield environments without unexpected failures.

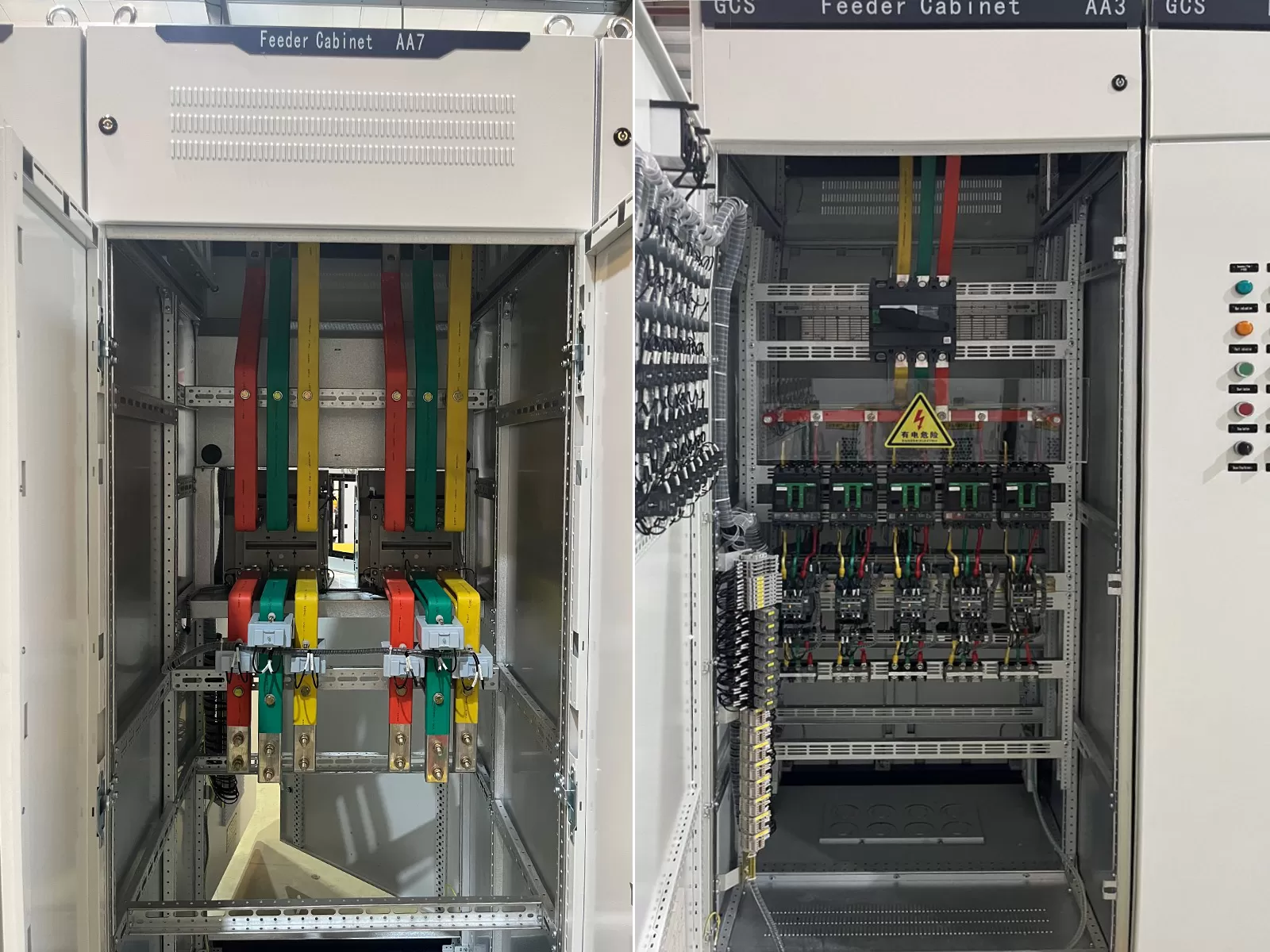

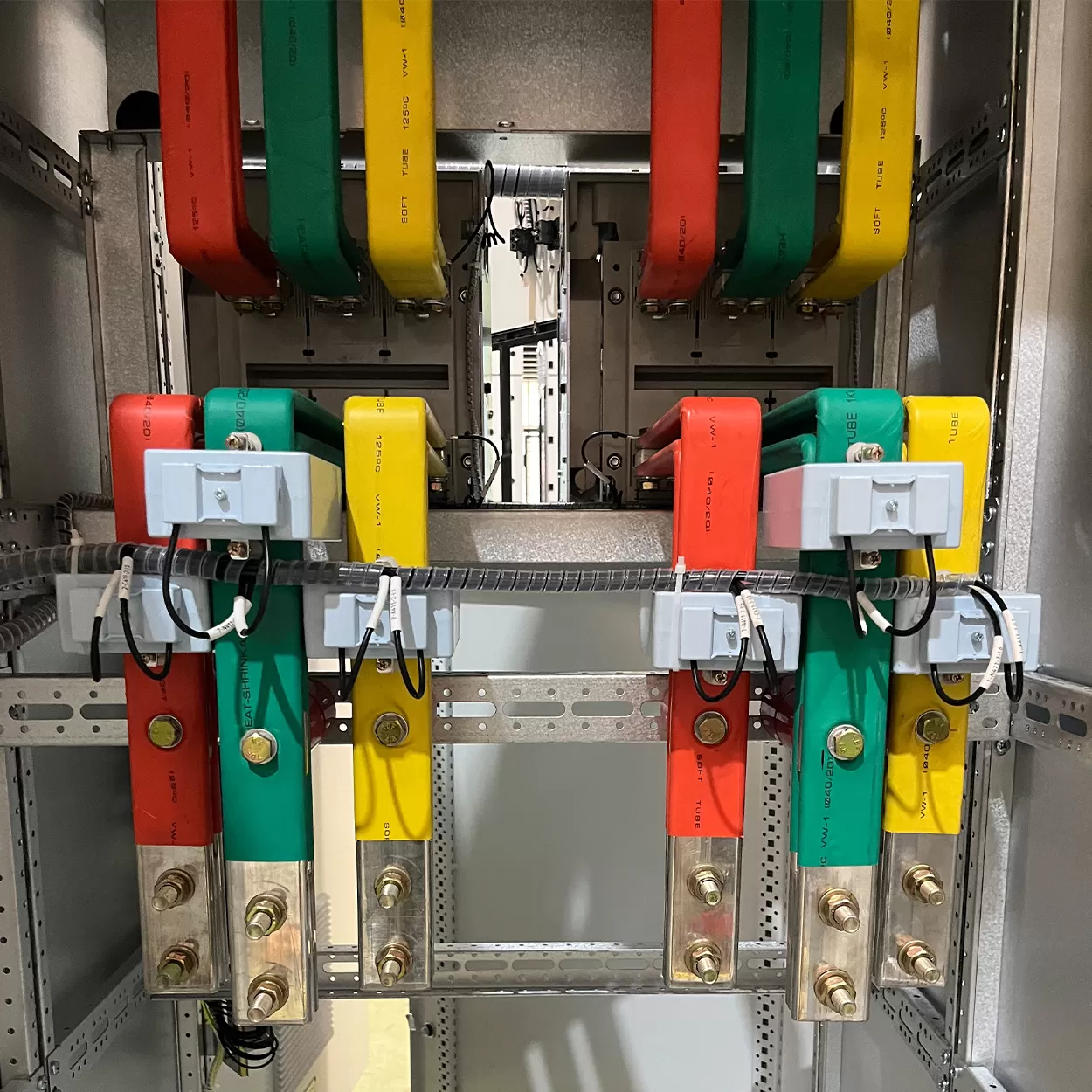

Robust Busbar Architecture: Equipped with T3 tinned copper busbars featuring clear phase color coding and high current-carrying capacity. This robust busbar architecture effortlessly handles extreme shock loads from chemical pumps and compressors, maximizing electrical transmission efficiency and reliability.

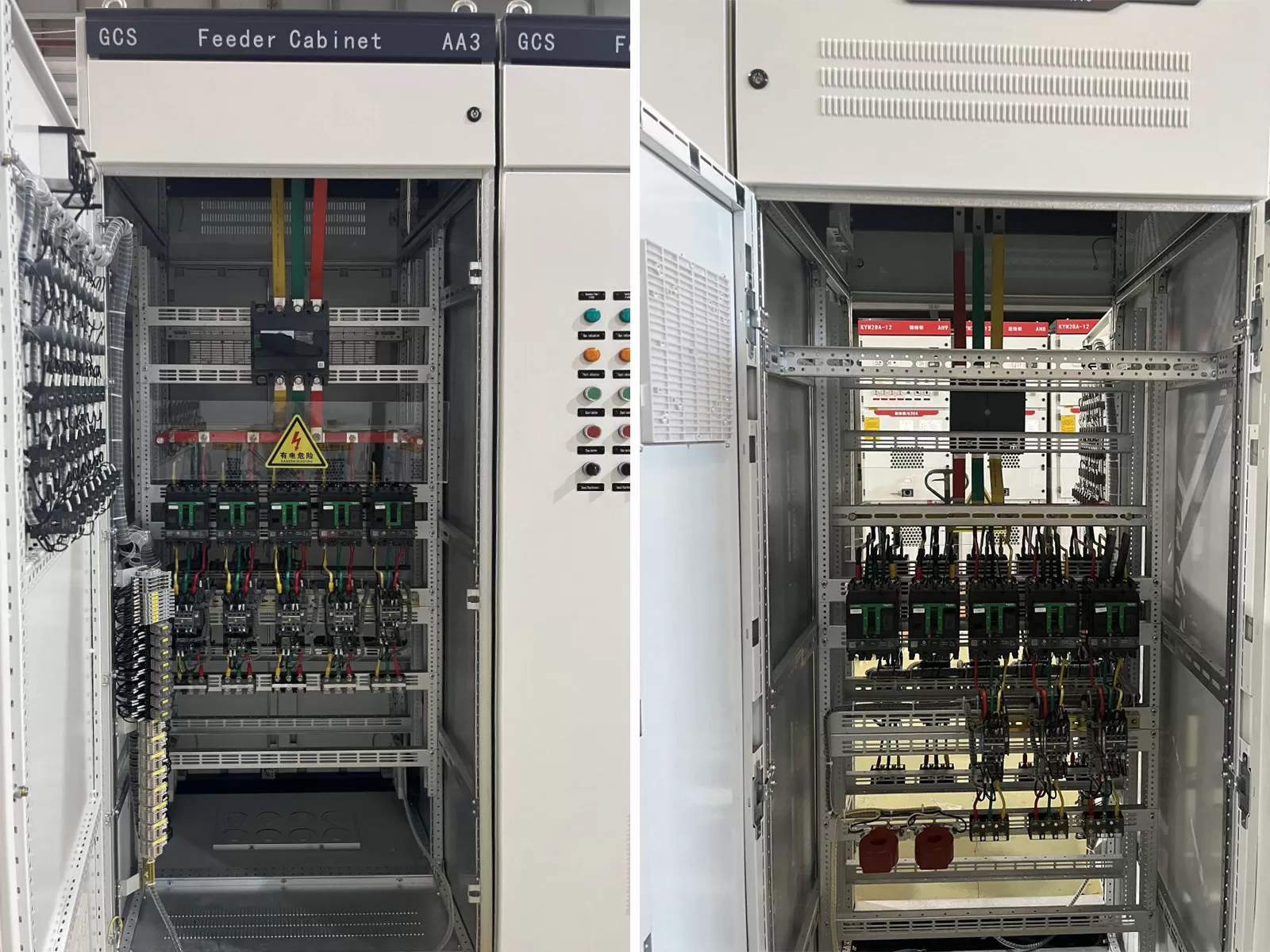

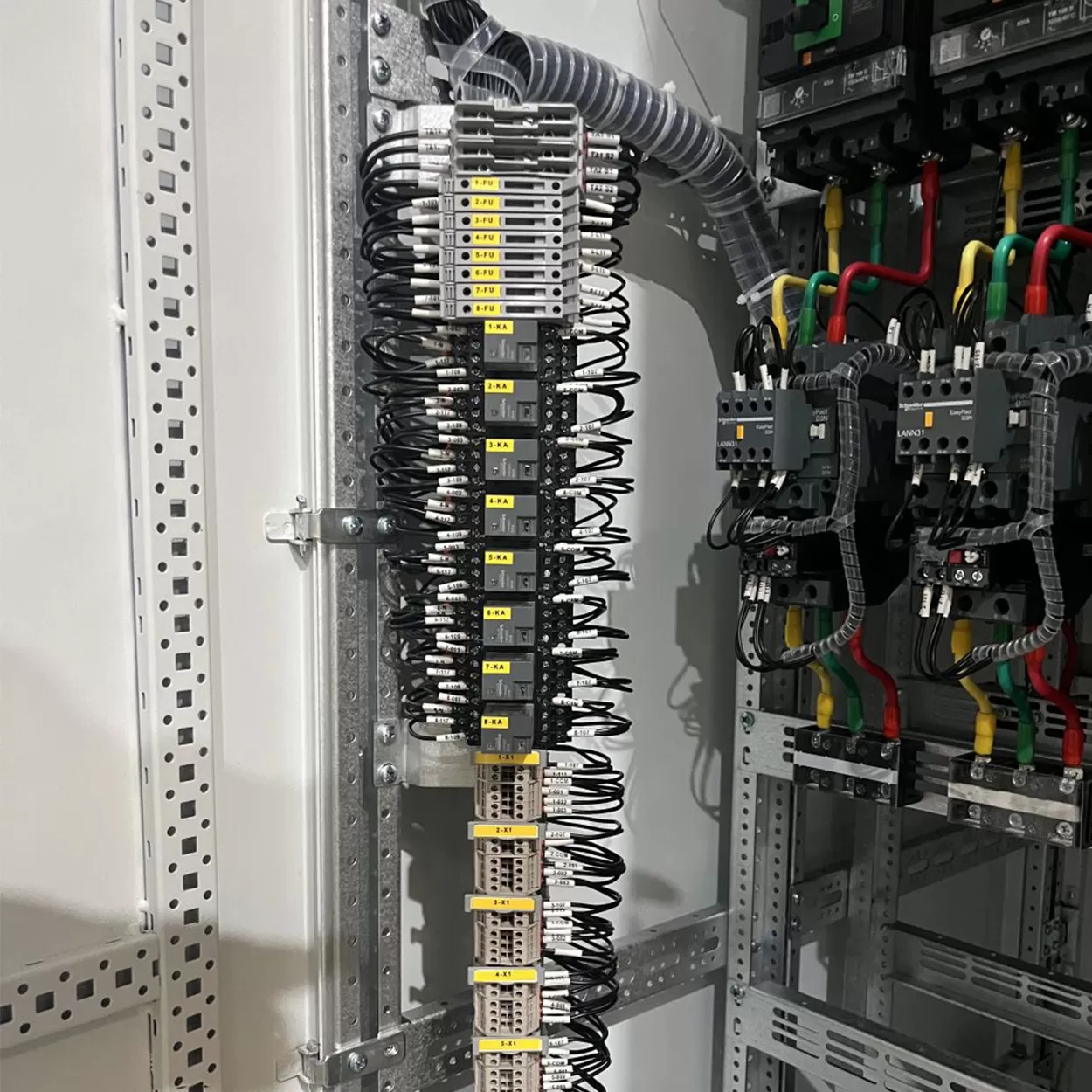

Standardized Safe Wiring: Internal control wires are fully protected by corrugated pipes with physically separated strong and weak electrical channels. Every terminal is clearly labeled, preventing signal interference from variable frequency equipment and greatly simplifying future capacity expansion.

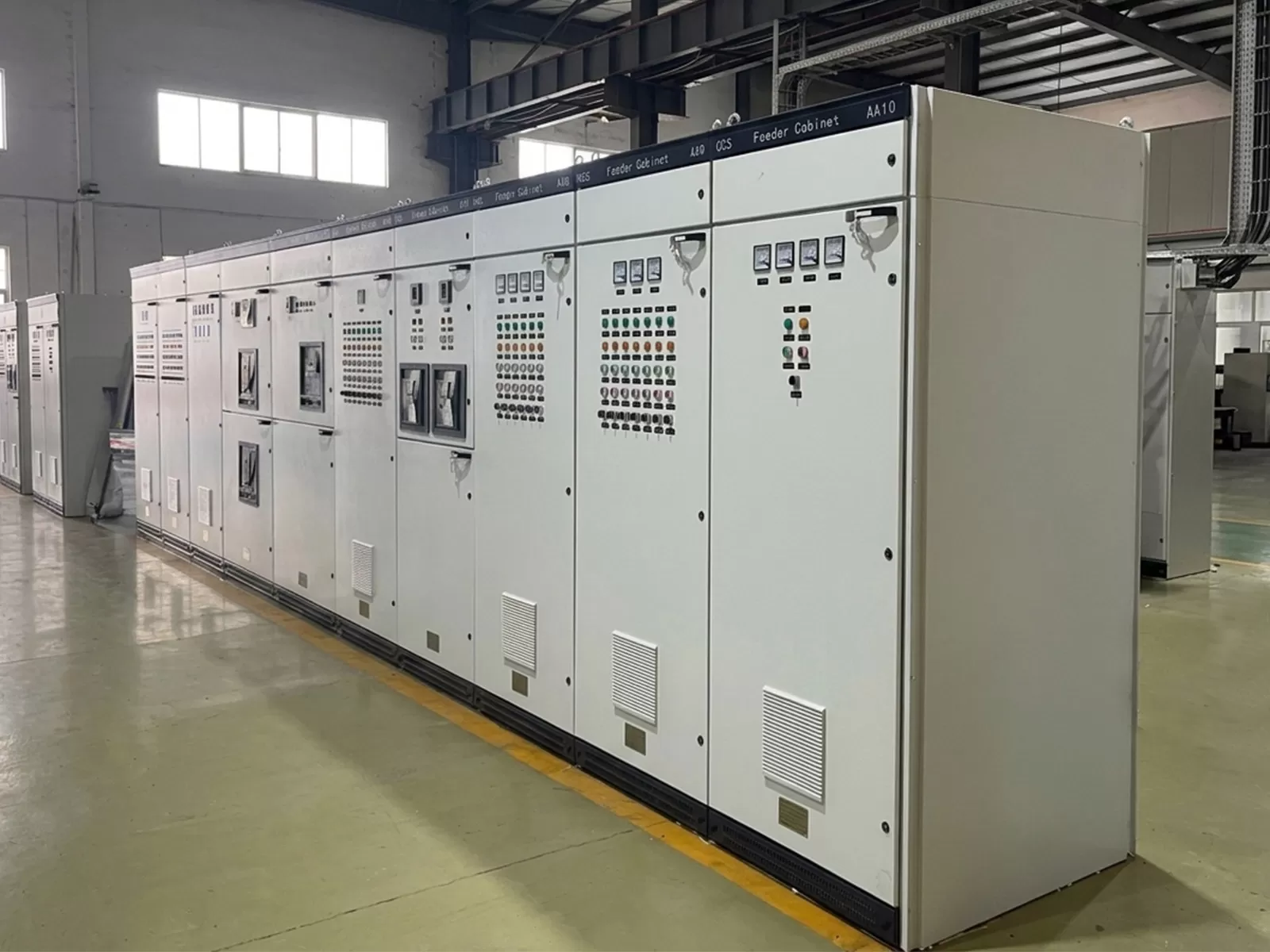

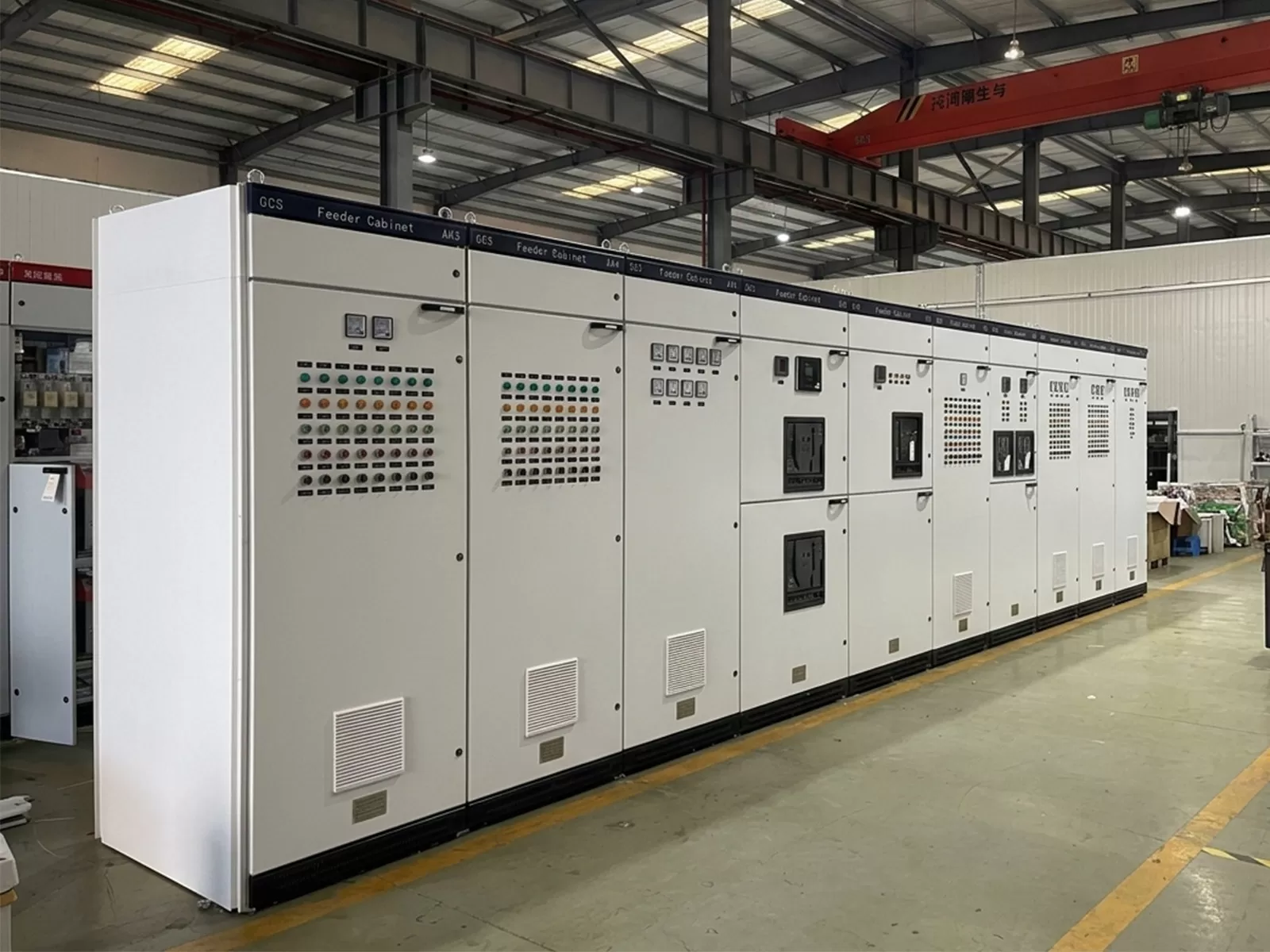

Rigid Enclosure Construction: Manufactured from thickened cold-rolled steel, the cabinets feature a standardized modular fixed structure. The surface utilizes electrostatic powder coating, providing outstanding rigidity, vibration resistance, and superior anti-rust properties perfectly suited for high-risk chemical industrial zones.
Tailored Advantages
Maximum Operational Safety: Independent isolated chambers and dual-layer safety doors completely isolate live parts. This strict physical separation effectively eliminates electric shock and arcing risks, keeping operators absolutely safe in highly flammable and explosive petrochemical working environments.
Minimized System Downtime: By providing localized fault isolation, a single circuit failure won't disrupt the entire network. This targeted protection ensures that critical extraction pumps and ventilation systems keep running, preventing costly facility-wide shutdowns and securing production schedules.
Smart Remote Monitoring: Built-in precision transformers and secondary terminals seamlessly connect with the facility’s DCS platform. Facility managers can remotely monitor live loads, read current data, and manage alarms, drastically reducing the need for dangerous manual on-site inspections.
Plug-and-Play Installation: Every cabinet undergoes complete factory pre-assembly, busbar connection, and rigorous electrical testing before shipping. Upon arrival, the on-site team only needs to connect the incoming and outgoing cables, slashing installation time and accelerating project commissioning.
Ideal Applications & Environments

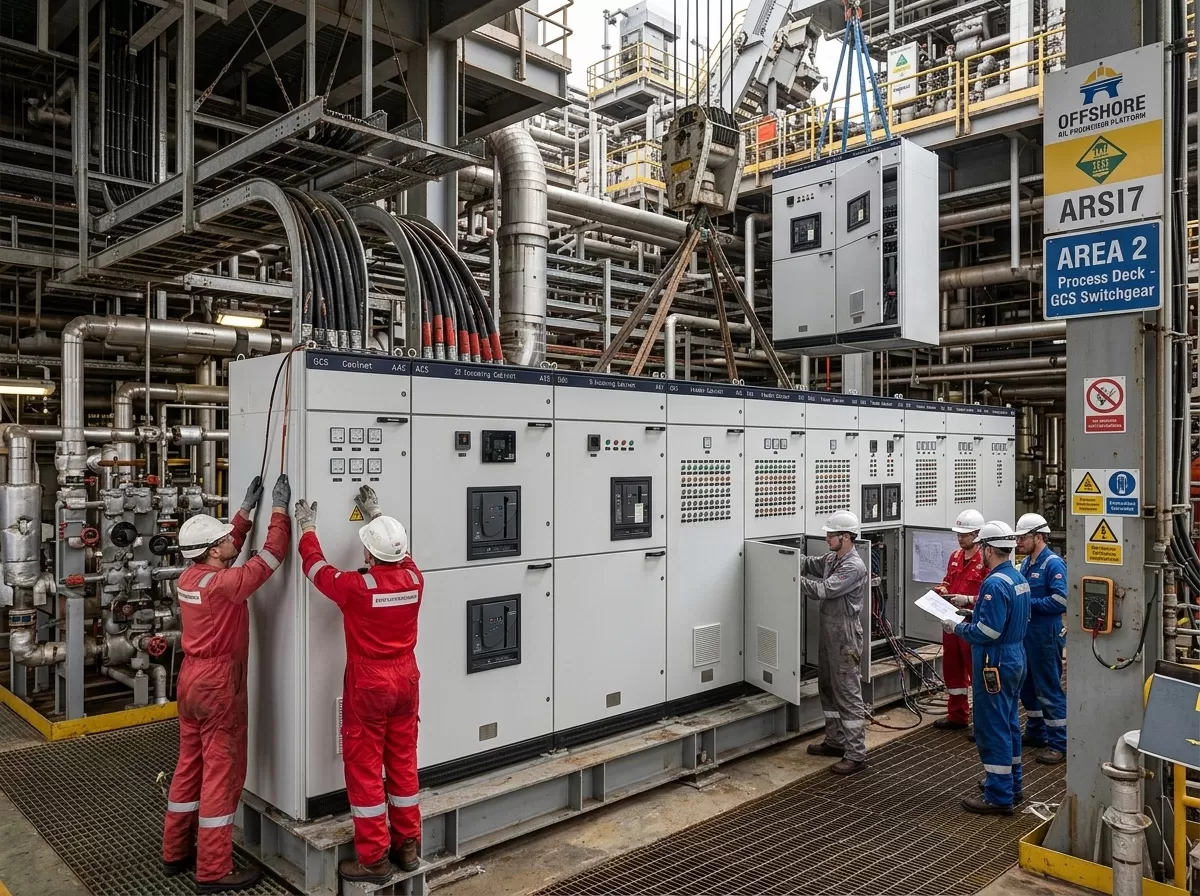

Oil Extraction Platforms: Engineered to endure harsh vibrations, heavy oil mists, and continuous heavy-load operations, making it the ultimate power distribution hub for maintaining uninterrupted drilling and pumping processes on demanding onshore and offshore oilfield extraction sites.

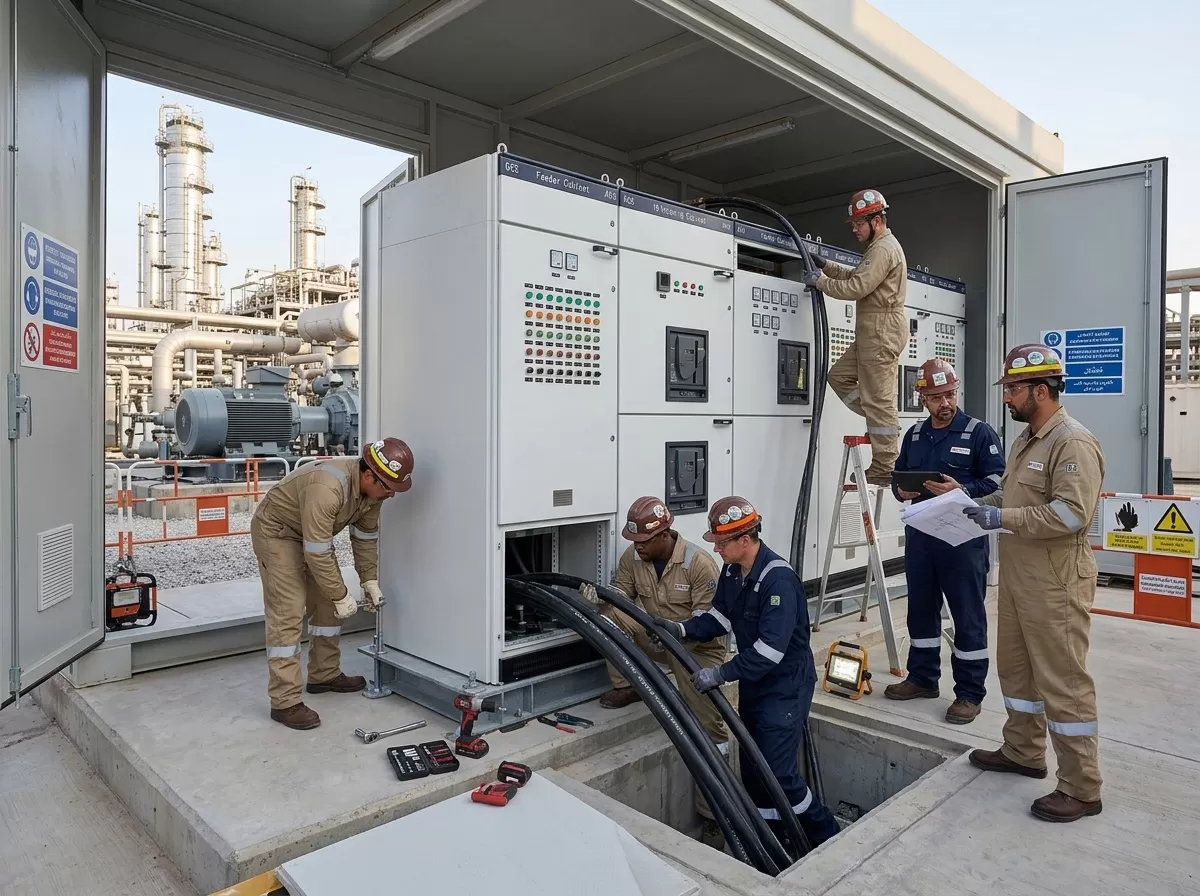

Petrochemical Refineries: Perfectly customized for main production facilities, seamlessly supplying stable, high-capacity electricity to critical chemical process pumps, industrial compressors, and large-scale cooling water circulation systems operating continuously around the clock.
Chemical Storage Facilities: Ideal for hazardous material storage zones where explosion-proof safety is paramount. The sealed cabinet design prevents flammable dust and chemical vapors from triggering electrical fires, safely securing essential ventilation and lighting systems.
Industrial Pump Stations: Highly reliable for controlling complex municipal or industrial loop networks. It securely distributes localized power to automated PLC systems, massive motor groups, and sensory equipment with precision, preventing cascading failures across the industrial park.
