The highly reliable Explosion-proof VFD Control Panel offers an advanced protective solution for modern heavy industrial operations. By maintaining a continuous internal positive pressure, this specialized Pressurized VFD Cabinet effectively isolates sensitive internal electronics from dangerous surrounding explosive elements. Engineered to deliver exceptional safety and reliability, it acts as a premier Hazardous Area VFD Controller, guaranteeing stable and smooth power frequency automation across global manufacturing facilities requiring high performance.
Meet Latest Innovation

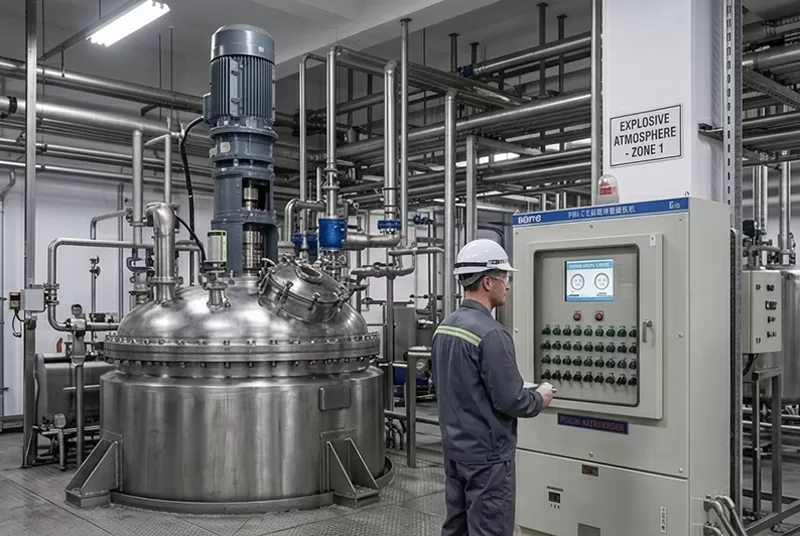

Chemical Reaction Workshop：This automated system regulates mixing motor rotation speeds precisely. The internal positive pressure blocks hazardous flammable chemical vapors from invading the cabinet enclosure safely.

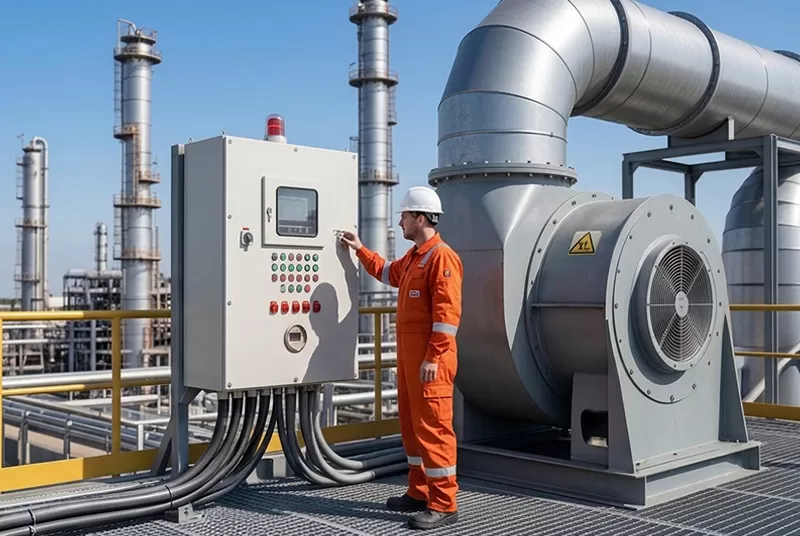

Refinery Ventilation System：It efficiently drives explosion-proof induced draft fans via variable frequency adjustment. Continuous purging prevents volatile refining gases from breaching the core control components.

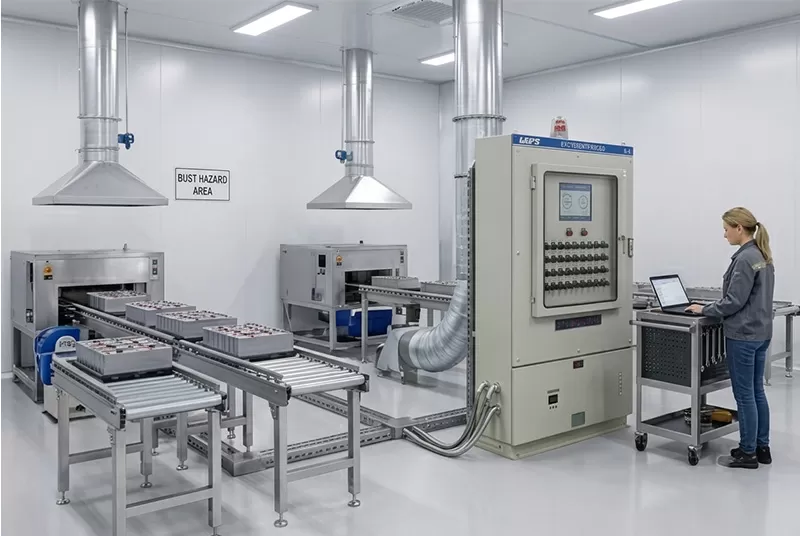

Lithium Battery Dust Workshop：Controlling roller conveyors and exhaust machinery, the active overpressure barrier keeps out conductive lithium dust, ensuring highly stable and continuous speed regulation performance.

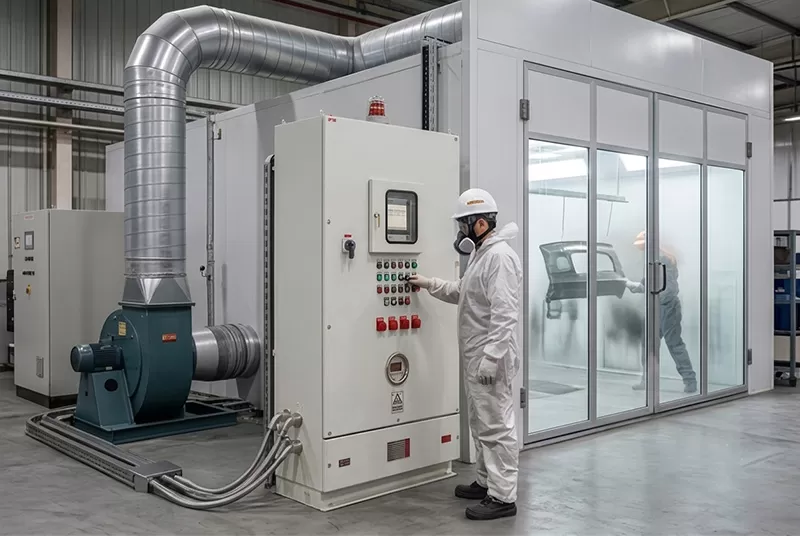

Paint Coating Production Line：It manages supply and exhaust fan systems seamlessly. By repelling volatile paint solvents, it delivers safe, stepless airflow adjustments across the workshop floor.
Chemical Reaction Workshop
Refinery Ventilation System
Lithium Battery Dust Workshop
Paint Coating Production Line
Material
Thickness & Size
Coating
Mounting Options
Door & Lock
Branding & Labeling
Accessories
Assembly
Effectively prevents external gas ingress
Provides superior real-time thermal management
Integrates easily with standard industrial machinery
Offers automated purging before safe power startup
Lowers total operational and maintenance overhead
Fully complies with strict global safety standards
Material Inspection
Precision Machining
Precision Casing Welding
Non Destructive Testing NDT
Treatment & Sandblasting
Flameproof Joint Grinding
Pre assembly
Main Assembly & Wiring
Ex-Proof Integrity Check & Measuring
Routine & Functional Testing
Final Inspection, Packaging & Dispatch
"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."
Ka* E**d
"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."
Ah** Ha*n
"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."
Ca* Me**z

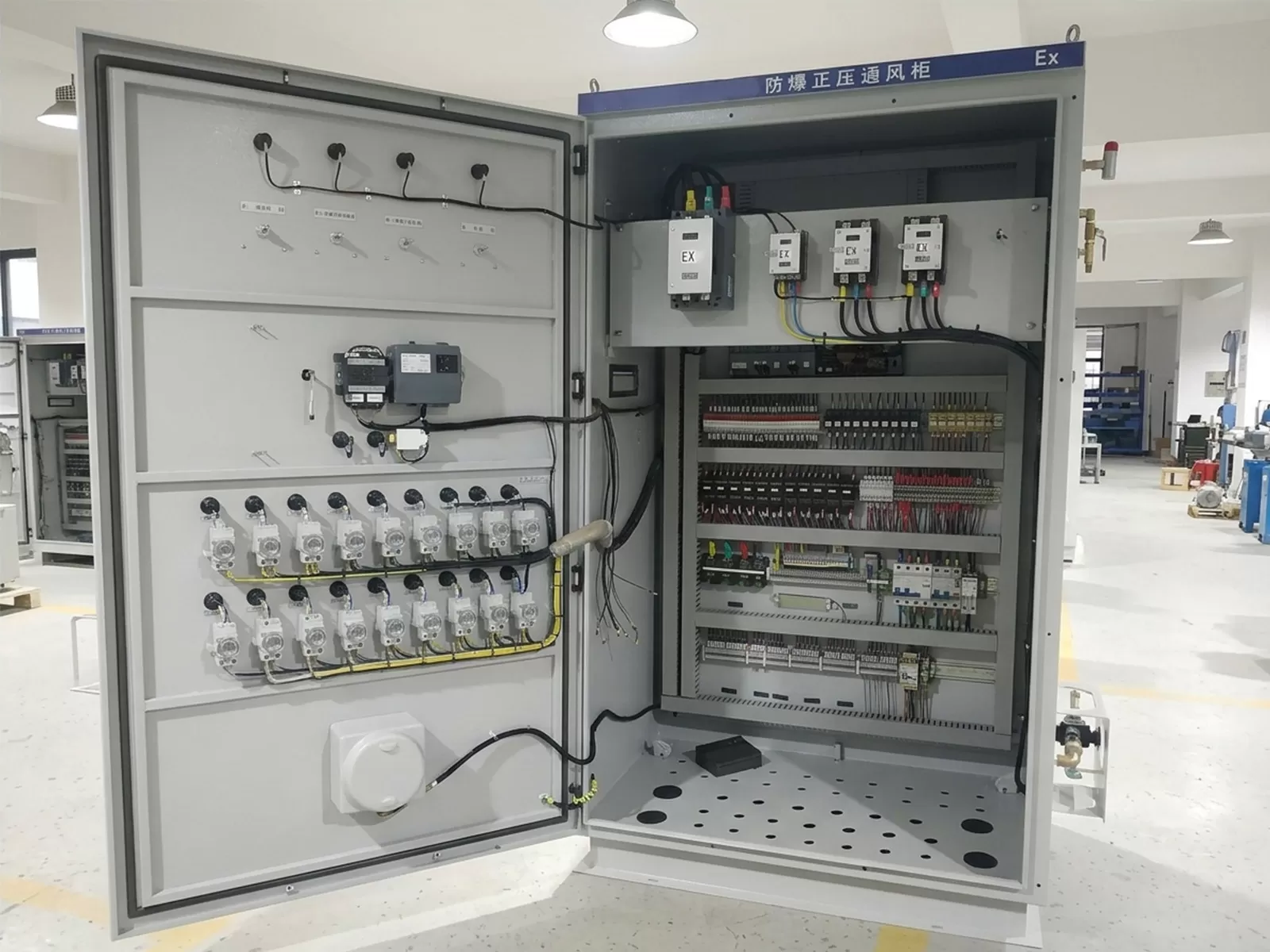

It is a specialized safety system containing an integrated Explosion-proof Variable Frequency Drive protected by automated pressure regulations. This highly advanced Ex p Purged VFD Control Panel constantly introduces clean air or inert gas into the enclosure. This action creates a reliable internal overpressure that completely bars any combustible gases or hazardous dust components from entering the unit.

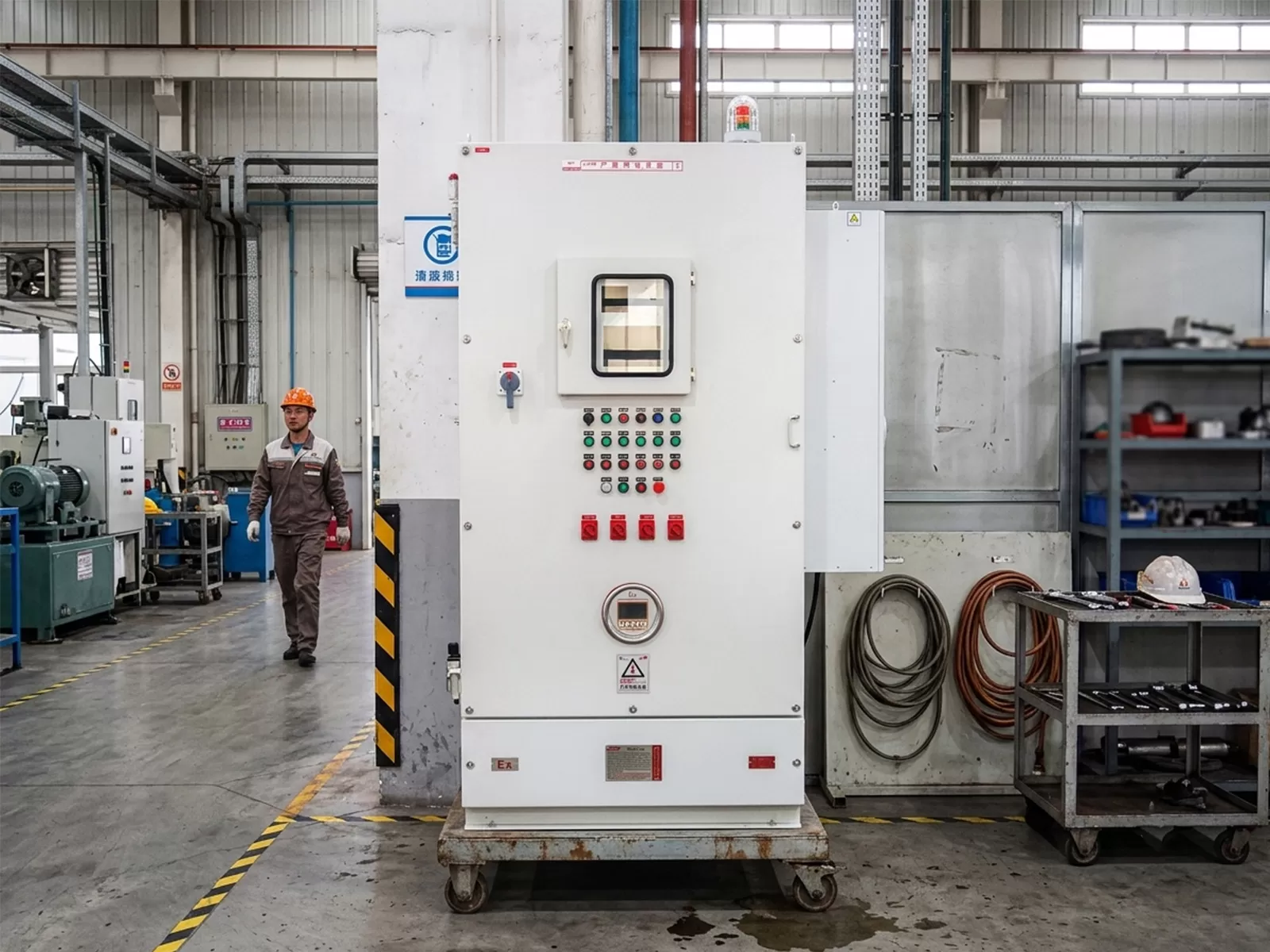

For marine environments, select the Stainless Steel Ex p - Pressurized/Purged Explosion-proof VFD Control Panel. For outdoor installations, deploy the Weatherproof Ex p - Pressurized/Purged Explosion-proof VFD Control Panel. If restricted, choose the Compact Ex p - Pressurized/Purged Explosion-proof VFD Control Panel. For basic drives, implement the Ex p - Pressurized/Purged Explosion-proof VFD Control Panel for Motor Speed Regulation, or utilize the Ex p - Pressurized/Purged Explosion-proof VFD Control Panel for Hazardous Area Fan Control.
| Protection Parameter | Specification Standard | Operational Requirement |
| Protection Principle | Positive Pressure Overpressure | Prevents entry of hazardous mixtures entirely |
| Purge Gas Type | Clean Compressed Air / Inert Gas | Must be completely free of flammable contaminants |
| Minimum Overpressure | ≥50 Pa | Must trigger automatic alarm if pressure drops below limit |
| Enclosure Material | Heavy-duty Steel / Stainless Steel | Robust construction to handle internal pressure stresses |
| Purge Time Cycle | Automated pre-start calculation | Ensures complete replacement of internal volume before power-up |
| Alarm Integration | Automatic cutoff and telemetry alert | Trips power if pressure compensation fails completely |
| Applicable Zones | Zone 1, Zone 2, Zone 21, Zone 22 | Covers both volatile gas and combustible dust environments |
Q: How does the purging sequence work?
A: Before electrical power is applied, clean air flushes out the enclosure to eliminate any pre-existing explosive gases.
Q: What happens if pressure falls below 50 Pa?
A: The integrated control system immediately triggers an audible alarm or cuts off power to preserve environment safety.
Q: Can standard VFDs be placed inside?
A: Yes, the positive pressure principle allows general-purpose high-performance drives to operate safely inside hazardous areas.
Q: Is constant gas consumption required?
A: Yes, a small continuous flow is needed to compensate for natural seal leakage and maintain positive pressure.
Q: Is it suitable for combustible dust areas?
A: Absolutely, the constant outward airflow prevents fine conductive or ignitable dusts from entering the cabinet.
Q: What is the main maintenance requirement?
A: Regular inspection of door seals and verifying the clean gas supply pressure are the most critical steps.
