The Challenges Faced by the NGCP

Grid Surge & Lightning Hazards: Severe lightning strikes and unpredictable high-voltage surges frequently threaten sensitive communication sites. Without a robust surge protection device, sudden voltage spikes easily destroy expensive signal transceivers, causing catastrophic network blackouts across the local transmission grid.

High-Voltage DC Arc Faults: Operating within high-voltage 1000V DC environments risks intense electrical arcing during circuit breaking. Standard AC breakers fail to safely extinguish these powerful DC arcs, presenting severe fire hazards and catastrophic equipment damage risks.

Blind Spots in Power Monitoring: Remote power stations lack immediate visibility regarding real-time voltage and branch current fluctuations. This lack of localized data prevents maintenance teams from detecting early overloads, frequently resulting in unexpected branch dropouts.

Widespread Cascading Faults: Conventional centralized distribution systems lack precise branch isolation capabilities. A single localized short circuit in one minor communication module can instantly trigger main breaker trips, shutting down the entire facility's communication infrastructure.

Our Engineered Solutions

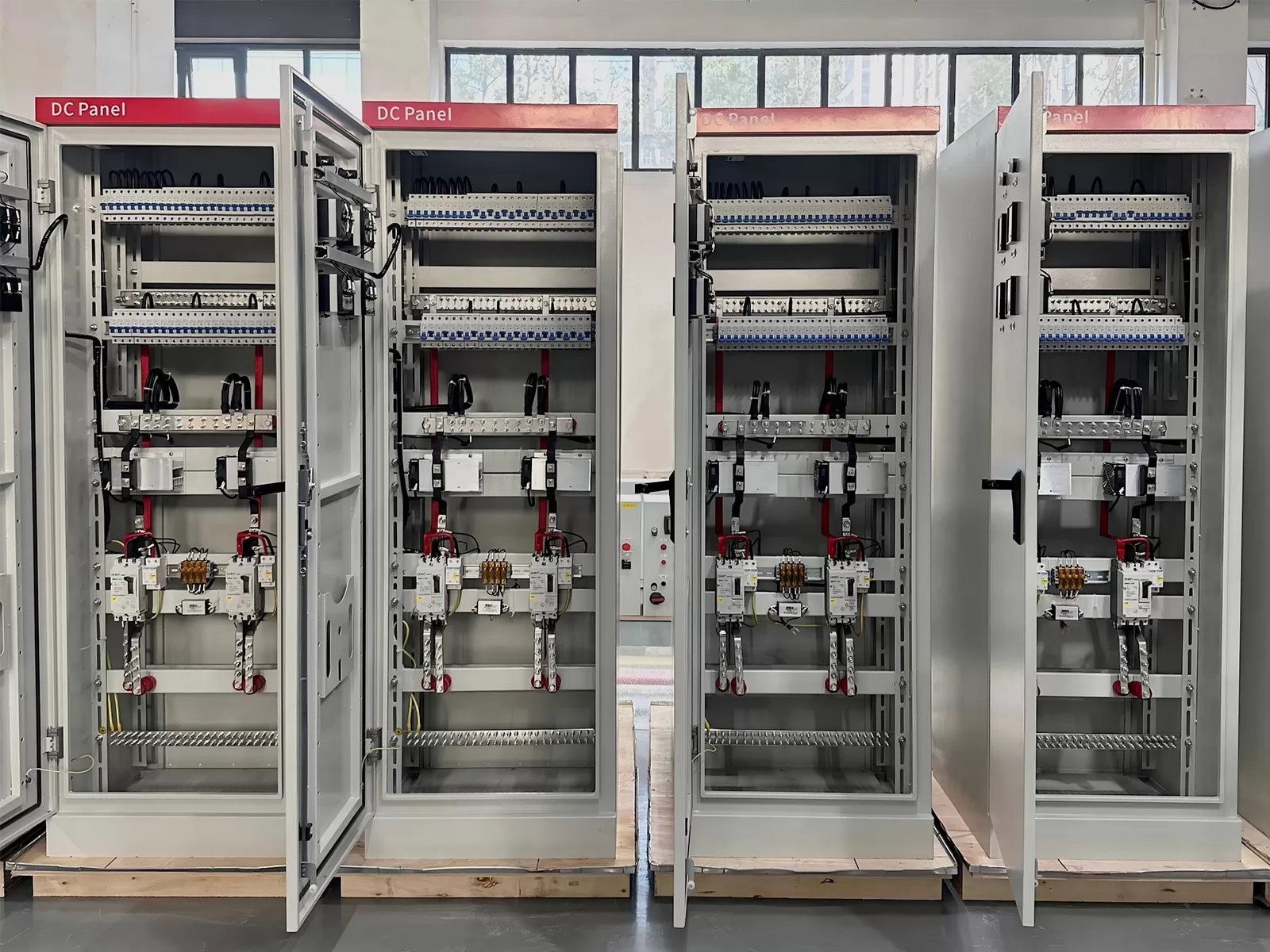

Integrated Heavy-Duty SPD: We engineered a specialized equipped DC distribution cabinet with high-capacity surge protection devices. This system actively clamps dangerous transient overvoltages instantly, shielding critical downstream communication hardware and completely eliminating lightning-induced infrastructure failures.

Industrial-Grade DC Breakers: The customized DC power distribution cabinet integrates premium CHNT 1000V DC molded case circuit breakers. These specialized components reliably extinguish high-voltage DC electrical arcs, guaranteeing exceptionally safe branch disconnection under extreme load conditions.

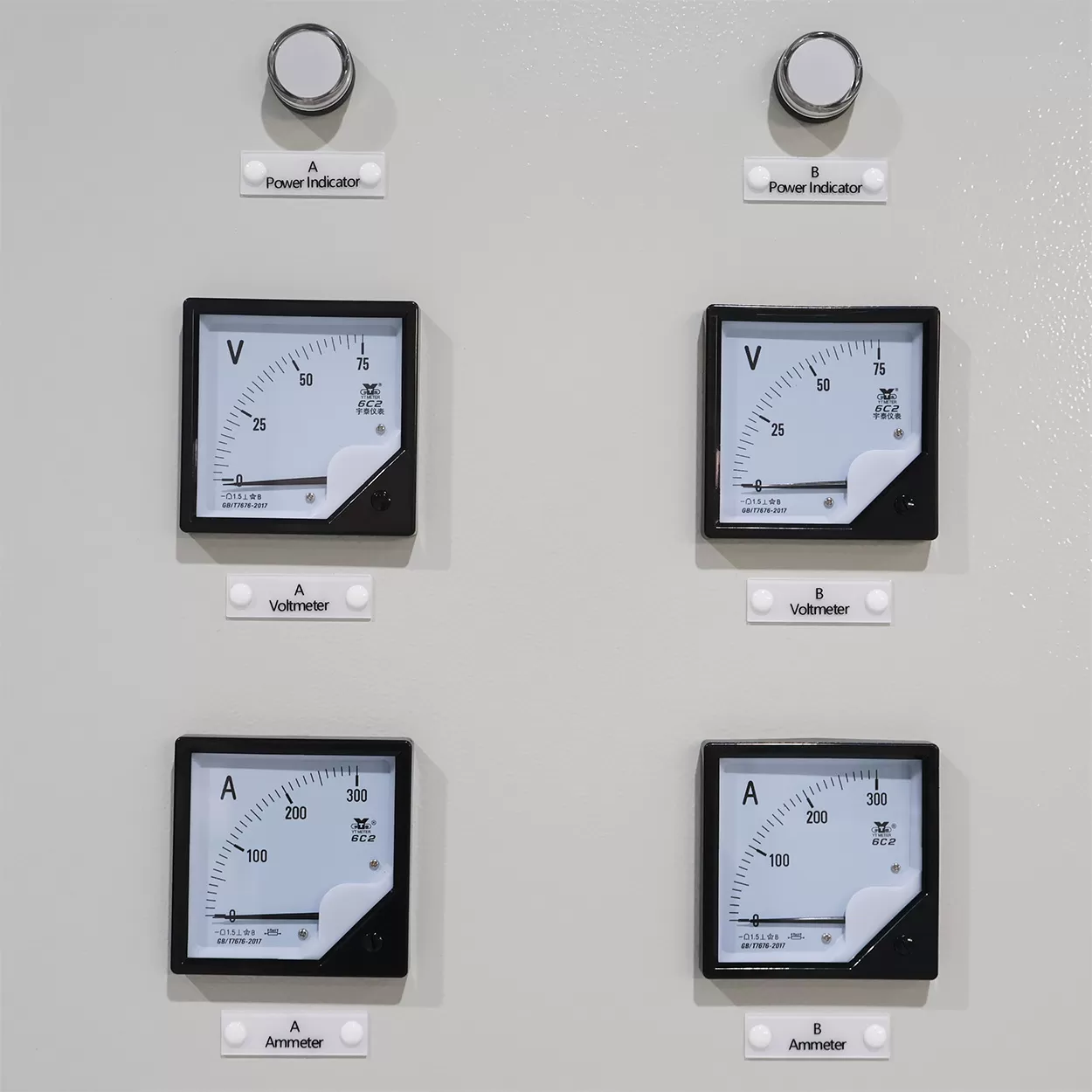

Precision Front-Panel Analog Meters: We configured highly visible analog voltmeters and ammeters on the front door. This intuitive setup provides real-time measurement displays of the DC busbar status, completely eliminating operational blind spots for power grid technicians.

Precise Branch Micro Isolation: Our design implements specialized CHNT multi-pole DC miniature circuit breakers for every single equipment branch. This design immediately isolates individual branch faults, strictly ensuring uninterrupted power supply to all other operating system modules.

Premium Hardware Configurations & Technical Details

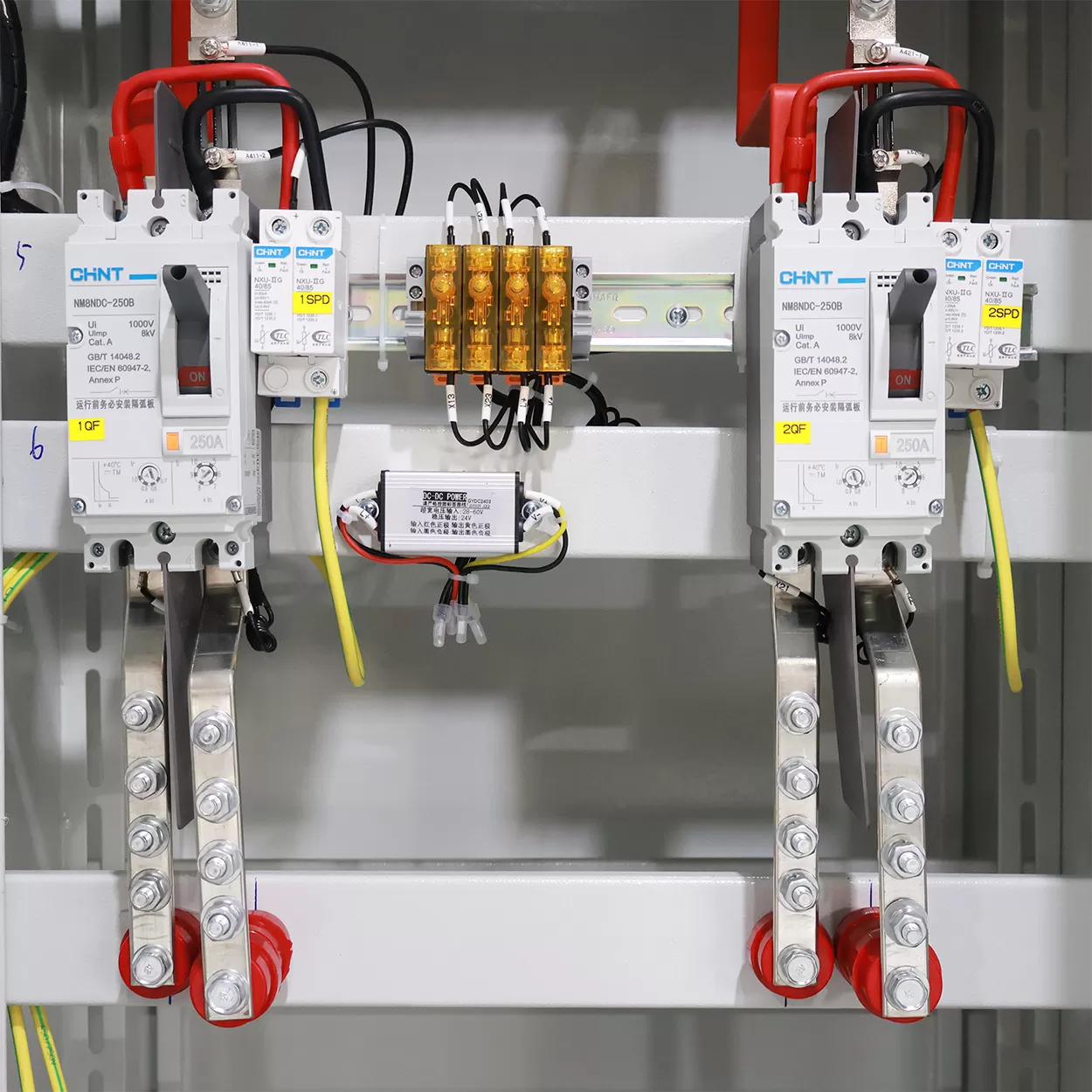

High-Voltage Main Switch: The DC distribution panel utilizes CHNT NM8NDC-250B molded case circuit breakers as main switches. Supporting up to 1000V DC, they deliver elite short-circuit and overload protection for the heavy-duty main power circuit.

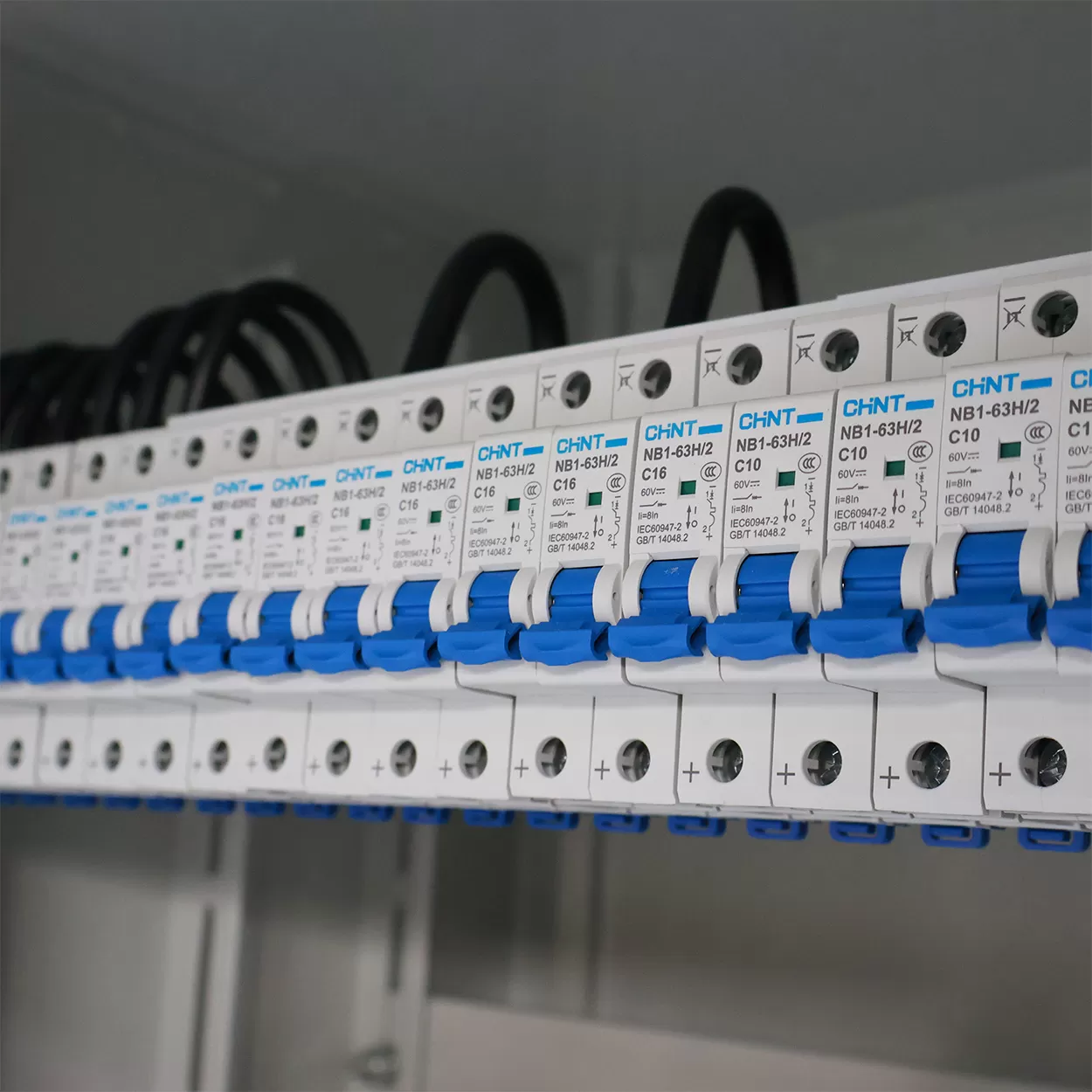

Branch Isolation Protection: Premium CHNT NB1-63H/2 DC miniature circuit breakers protect individual communication branch lines. These precisely matched breakers accommodate diverse equipment power ratings, ensuring localized overload isolation across all distribution pathways.

Heavy-Duty Surge Suppression: High-performance Surge Protective Devices (SPD) are actively integrated into the internal architecture. They instantly suppress sudden lightning strikes and grid voltage fluctuations, shielding sensitive network transceivers from devastating voltage spikes.

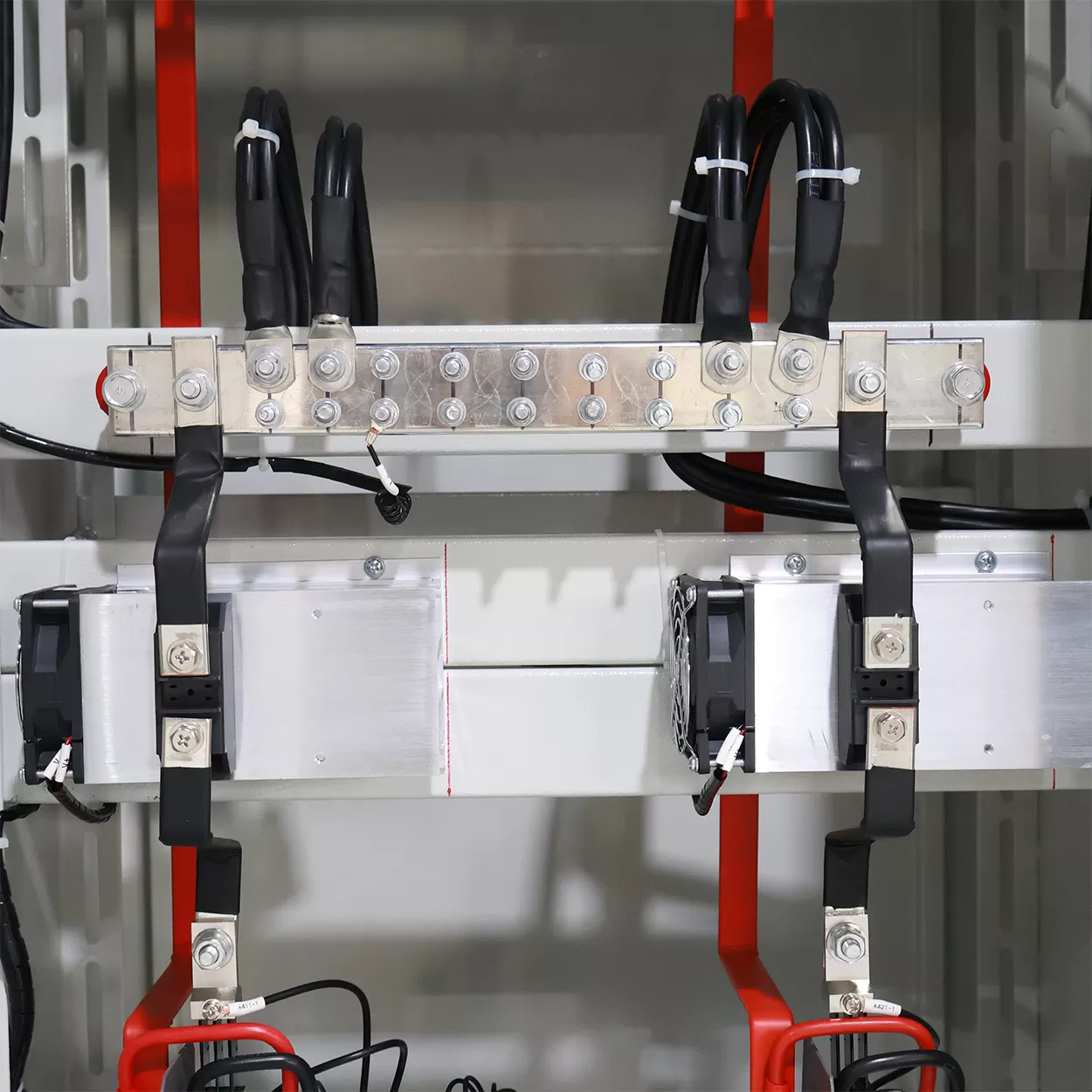

High-Efficiency Copper Busbars: Engineered with heavy-duty, low-loss copper busbars, the cabinet ensures highly efficient power distribution. This robust design guarantees optimal electrical conductivity and minimal thermal buildup during continuous, high-load multi-branch power delivery.

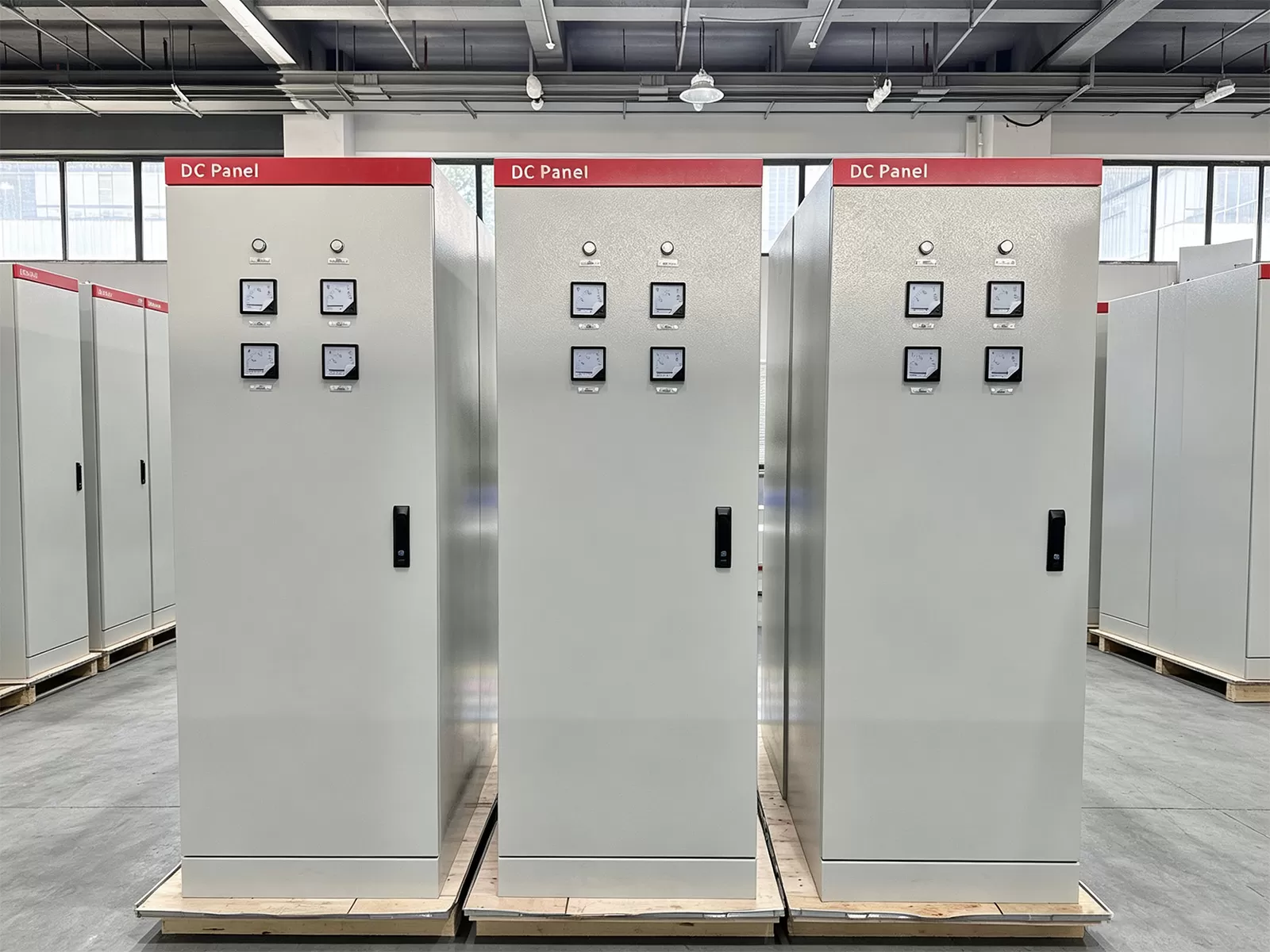

Intuitive Monitoring Panel: The front door incorporates high-precision analog voltmeters and ammeters alongside bright power indicators. Technicians can visually monitor real-time DC busbar voltage and loop currents instantly without opening the cabinet.

Core Value Propositions & Customer Benefits

High DC Voltage Adaptability: Specially engineered for high-voltage DC environments up to 1000V, this system perfectly aligns with the stringent electrical parameters of modern national grid communication substations and infrastructure.

Multi-Layer Safety Protection: Combining heavy-duty molded case breakers, miniature branch breakers, and industrial-grade SPDs provides a comprehensive multi-layered safety barrier. This robust architecture minimizes system failure risks and significantly protects multi-million dollar assets.

Uncompromised Network Continuity: By isolating individual branch faults instantly, the DC power distribution cabinet prevents widespread cascading blackouts. This ensures a 99.99% operational uptime rate for critical grid communication and scheduling infrastructure.

Optimized Multi-Branch Efficiency: The standardized copper busbar layout optimizes power distribution pathways across multiple channels. It minimizes electrical resistance and thermal losses, directly enhancing power delivery efficiency for all connected equipment simultaneously.

Zero-Blind-Spot Monitoring: Continuous real-time display of core electrical parameters allows operators to detect load anomalies immediately. This active tracking enables predictable maintenance schedules, preventing unexpected grid dropouts and costly emergency repairs.

Ideal Applications & Environments

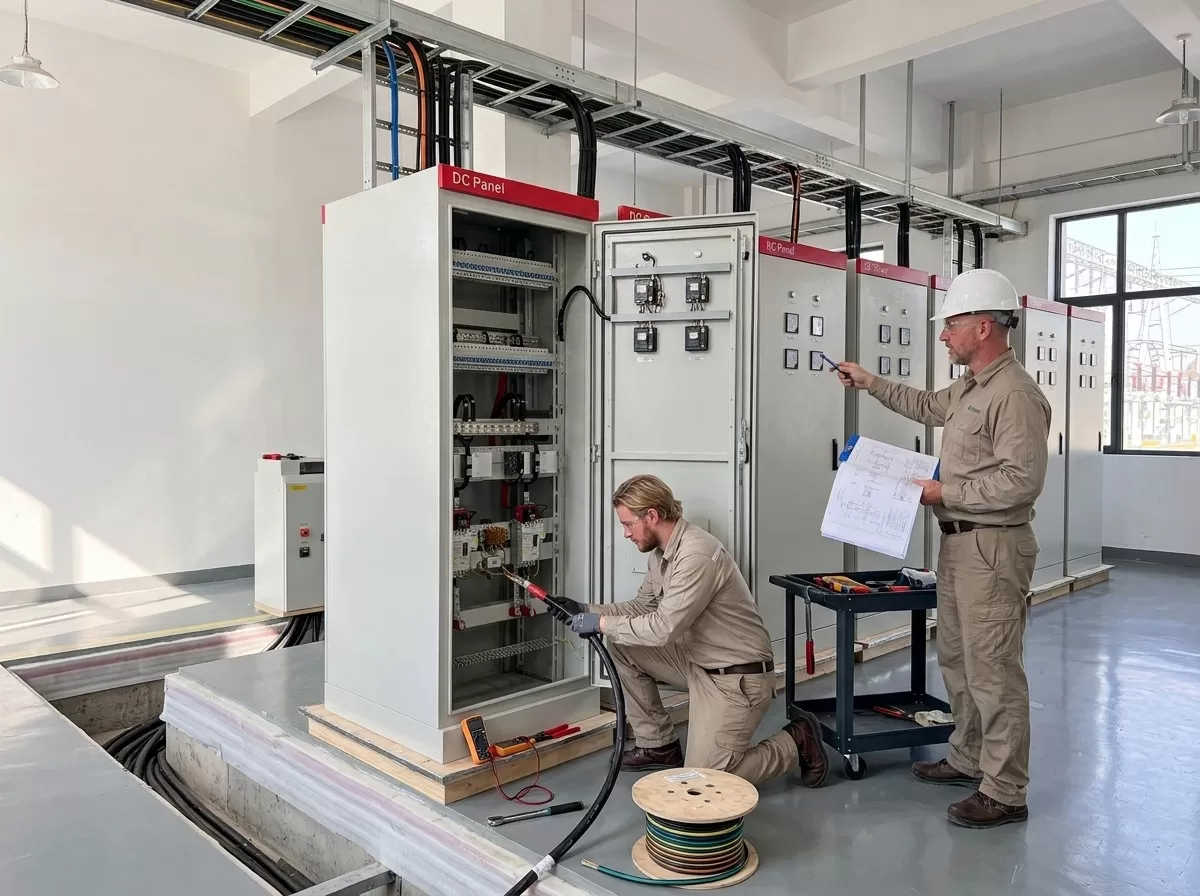

National Grid Substations: Perfectly suited for the central DC power distribution of national grid transmission substations. It reliably supports critical monitoring systems, protective relays, and high-voltage substation automated control networks.

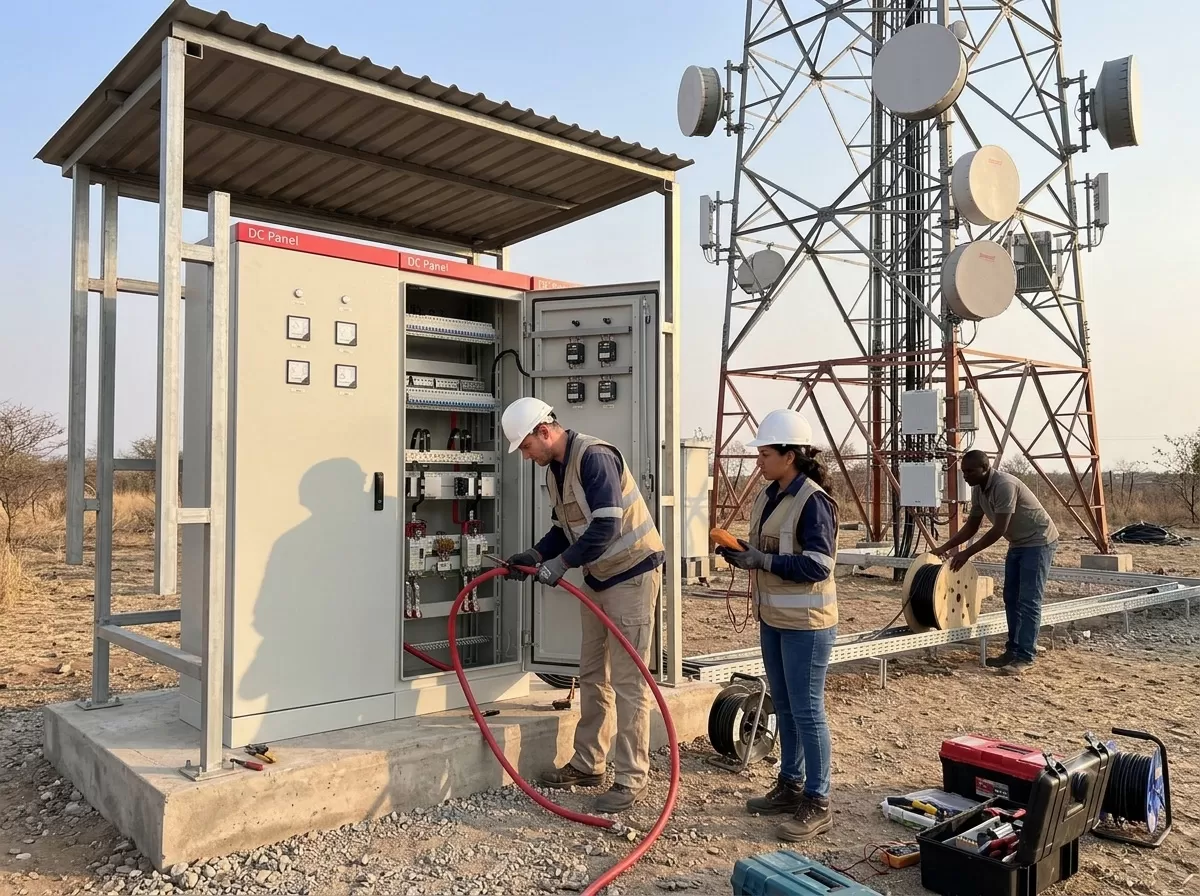

Telecommunication Base Stations: Highly ideal for remote telecom towers and mobile network base stations. The integrated surge protection and multi-branch distribution safely manage power for multiple microwave transceivers and cellular radio units.

Power Grid Dispatch Centers: Excellent for centralized power grid command and dispatch centers. It guarantees flawless, continuous DC power to the core scheduling mainframes, emergency backup systems, and localized fiber optic networks.

Railway & Transit Signaling: Superb for underground railway and high-speed rail signaling power rooms. It delivers exceptionally stable, failure-free DC distribution for safety-critical automated train tracking, control signals, and trackside communication lines.

Renewable Energy Storage Sites: Ideal for large-scale solar and wind battery energy storage systems (BESS). It orchestrates efficient DC power distribution from battery banks to localized control computers and monitoring telemetry equipment.
