What is a Bus Tie Cabinet? How It Secures Your Power Redundancy

Introduction

Industrial facilities cannot afford unexpected power losses. A single grid failure can halt production, ruin materials, and cause severe financial damage.

This is exactly why high-demand operations rely on a bus tie cabinet. It serves as the critical bridge between two independent power sources.

By integrating this equipment into your low voltage switchgear, you eliminate single points of failure. It ensures continuous operational stability during emergency grid drops.

What is a Bus Tie Cabinet? Definition and Purpose

At its core, a tie panel connects two separate electrical buses together. During normal operations, these two busbars remain completely isolated from each other.

When one primary power source fails, the cabinet safely closes the connection. This allows the surviving power source to feed both sides of the facility's distribution network.

Here are the primary engineering purposes of this critical equipment:

● Continuous Operation: Instantly restores power to critical loads when a main transformer drops offline.

● Maintenance Safety: Allows engineers to safely isolate and service one transformer while the other carries the entire facility load.

● Load Management: Balances heavy electrical loads across the entire Electrical Busbar System to prevent localized overheating.

Standard Technical Parameters for Bus Tie Cabinets

How Does a Bus Tie Breaker Work?

The heart of this system is the bus tie breaker (BTB). It acts as the intelligent, heavy-duty gatekeeper between your two power zones.

The operation follows a highly controlled and rapid sequential workflow:

● Step 1: Fault Detection: The internal monitoring relays detect a severe voltage drop or complete loss of phase on Main Source A.

● Step 2: Isolation: The main incoming breaker for Source A automatically trips to isolate the dead utility grid.

● Step 3: Transfer Initiation: The system verifies Source B is stable and commands the tie breaker to close.

● Step 4: Load Restoration: Power flows from Source B, through the tie cabinet, successfully re-energizing the dead busbar.

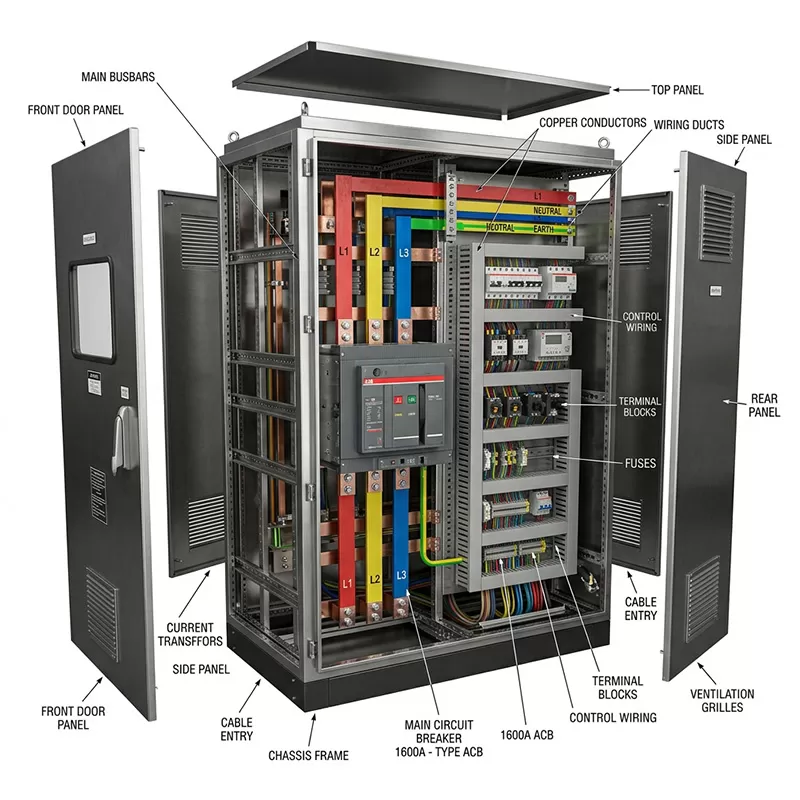

Key Components of the Tie Panel

A reliable tie cabinet requires heavy-duty internal components engineered for rapid, high-stress switching.

The Tie Switch / Breaker

This is the primary switching device that handles massive inrush currents. For high-ampere applications, a heavy-duty Air Circuit Breaker (ACB) is preferred over a standard bus tie contactor.

The Copper Busbar Network

These thick conductive copper plates carry the heavy electrical load between the two split systems. They must be perfectly sized and tinned to prevent dangerous heat buildup during crossover.

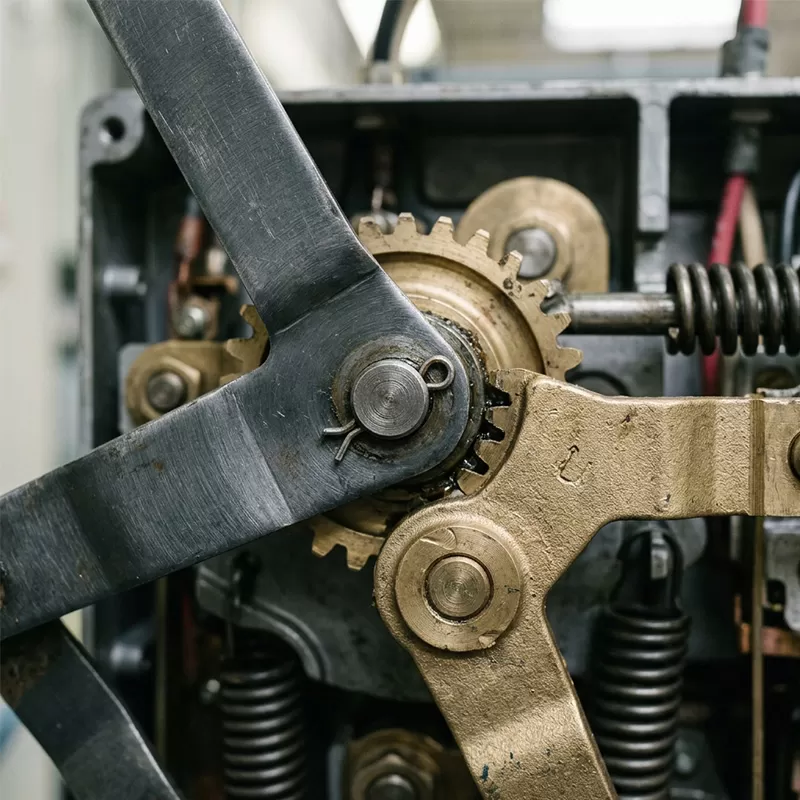

Switchgear Interlocking Mechanism

This is the most critical safety feature of the entire panel. A mechanical or electrical switchgear interlocking mechanism physically prevents the tie breaker and both main breakers from being closed simultaneously.

Intelligent Control Relays

These smart controllers continuously monitor voltage, frequency, and phase alignment. They make the split-second decisions required to initiate a safe and stable power transfer.

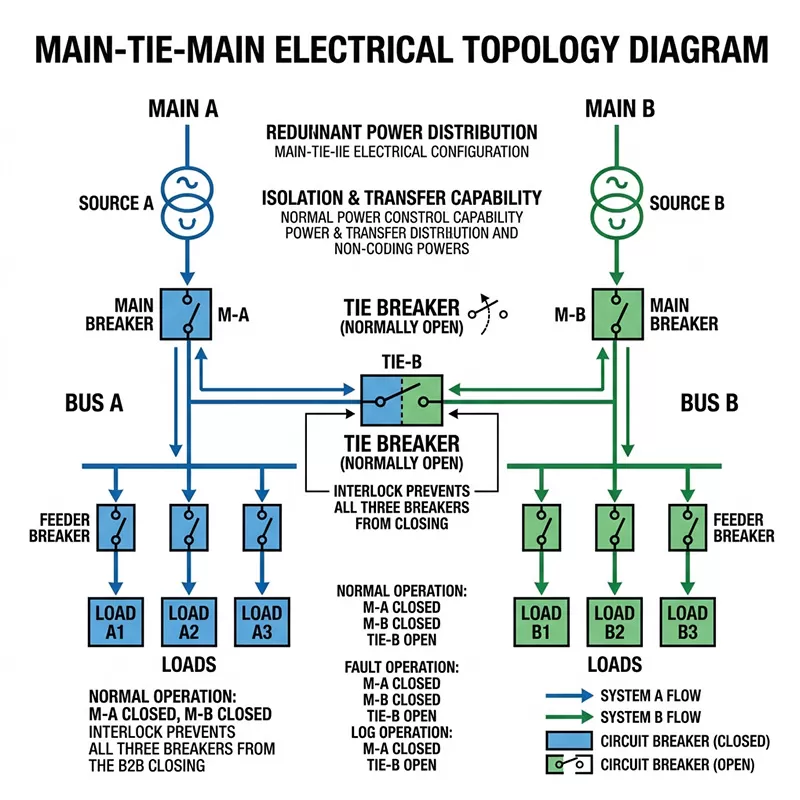

Main Tie Main Configuration vs. Standard Setup

To fully understand tie cabinets, you must compare the main tie main configuration (MTM) with standard single-source layouts.

The MTM setup utilizes two main incoming utility breakers and one central tie breaker.

● Dual Redundancy: MTM provides two distinct utility feeds, dramatically lowering the risk of a total plant blackout.

● Higher CAPEX: An MTM system requires a larger physical footprint and higher initial investment compared to a single-source setup.

● Superior Scalability: It allows facility managers to safely add more heavy machinery without overloading a single transformer.

Main-Tie-Main vs. Single Source Configuration

Typical Applications for Power Redundancy Solutions

Not every factory requires a complex dual-source MTM setup. However, for mission-critical facilities, these power redundancy solutions are strictly mandatory.

● Data Centers: Servers must remain online 24/7; tie panels ensure seamless transitions between utility feeds to prevent data loss.

● Hospitals and Healthcare: Life-saving medical equipment cannot tolerate even a ten-second voltage interruption during surgery.

● Semiconductor Manufacturing: A momentary power flicker can destroy millions of dollars worth of silicon wafers on the production line.

● Commercial Aquaculture: Keeps critical water filtration and aeration pumps running smoothly during regional grid failures.

FAQ

Q1: Can a bus tie be operated manually?

Yes, most modern tie breakers feature a manual override switch for maintenance purposes. However, operators must strictly follow the interlock safety sequence to prevent a catastrophic short circuit.

Q2: What happens if the interlock mechanism fails?

If the interlock fails and all three breakers close simultaneously, the two out-of-phase utility sources will collide. This causes a massive, dangerous fault that can destroy the entire switchgear line.

Q3: Is a tie cabinet the same as an ATS?

An Automatic Transfer Switch (ATS) usually switches a single load between the grid and a diesel generator. A bus tie connects two parallel utility busbars to share loads across a dual-transformer facility.

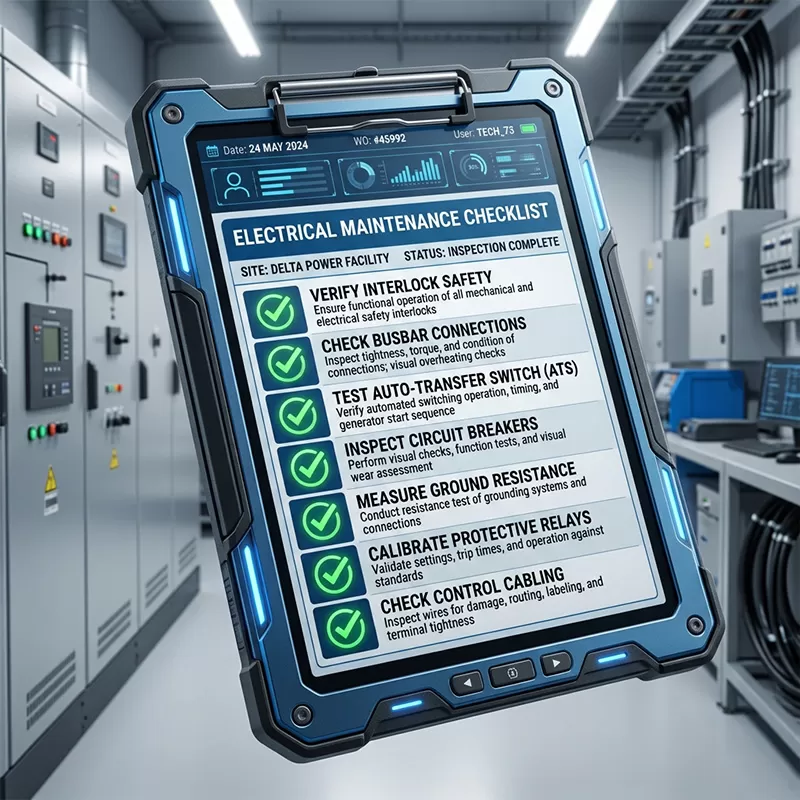

Q4: How often should the tie breaker be tested?

Facility managers should conduct routine thermal imaging and mechanical testing at least once a year. Regular exercise of the breaker mechanism prevents the internal lubricants from hardening over time.
