Understanding Motor Control Centers (MCC): Components & Functions

Introduction

Industrial plants rely on hundreds of electric motors to drive massive pumps, conveyors, and compressors. Managing and protecting these motors individually across a large facility is inefficient and highly dangerous.

This is where centralized power management becomes critical for factory operations. It consolidates control logic, short-circuit protection, and power distribution into one highly organized, safe enclosure.

This guide breaks down exactly what a motor control center (MCC) is and how it functions. We will explore the core components that keep heavy manufacturing lines running smoothly without unexpected downtime.

What is a Motor Control Center (MCC)?

A motor control center (MCC) is a large, fully enclosed metal assembly. It is specifically designed to house multiple motor starters, variable frequency drives (VFDs), and control components in a single location.

Instead of scattering individual control panels across a messy factory floor, everything is organized in centralized vertical sections. Here is what this centralized engineering approach achieves for facility managers:

○ Provides localized short-circuit and thermal overload protection for every single motor.

○ Simplifies factory troubleshooting, allowing engineers to diagnose faults in a single room.

○ Isolates high-voltage power lines from low-voltage control signals to ensure operator safety.

○ Enables remote monitoring and automated control through integrated communication networks.

Key Differences Between Core Electrical Equipment

Understanding the distinction between an MCC vs switchgear is the first step in properly designing a plant's single-line diagram (SLD).

How Does an MCC Operate?

The MCC panel working principle revolves around safely routing massive electrical power from a main incoming line to individual mechanical loads. It acts as the intelligent traffic controller for factory electricity.

The operational workflow follows a strict structural logic:

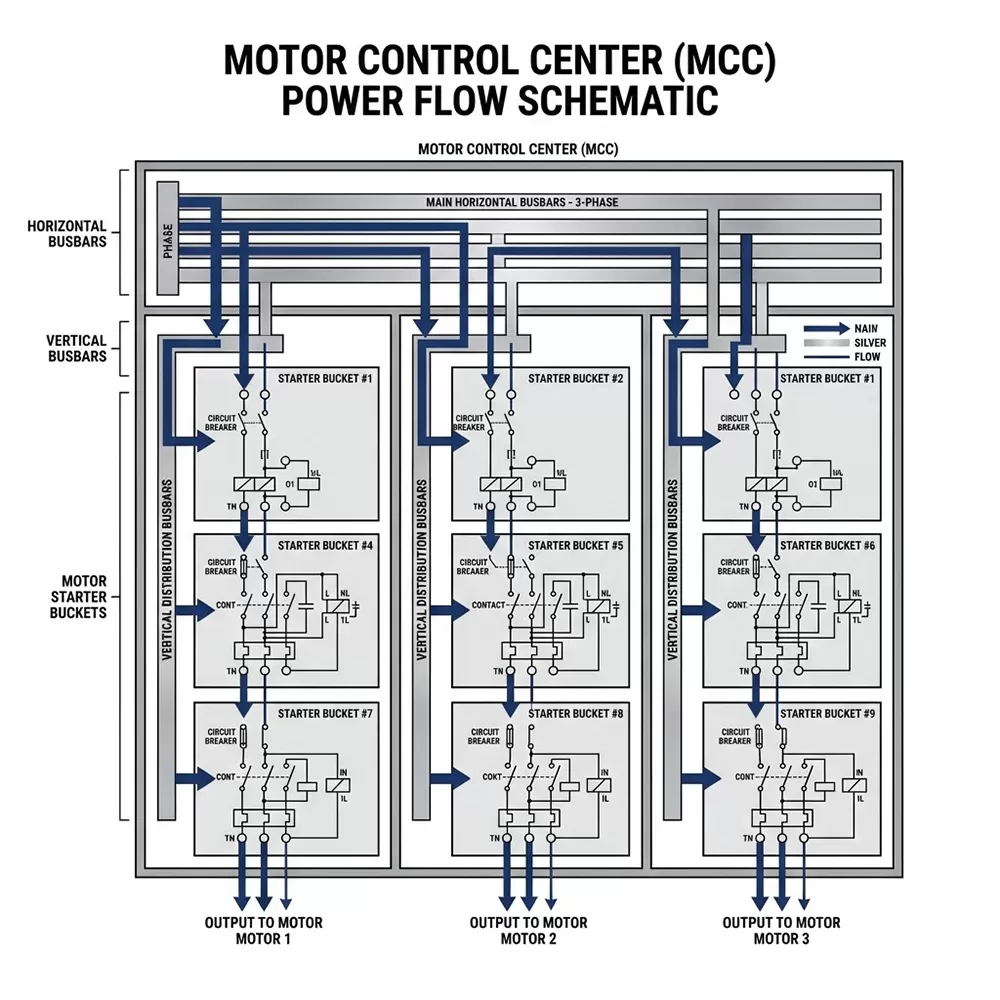

● Step 1: Main three-phase power enters the horizontal busbars located at the top or bottom of the cabinet.

● Step 2: These thick copper horizontal busbars distribute the electrical current to vertical busbars located in each vertical section.

● Step 3: Individual motor starter "buckets" plug directly into these vertical busbars using heavy-duty copper stabs.

● Step 4: External control signals dictate when the internal contactors close, allowing power to flow out to the field motors.

Core MCC Bucket Components

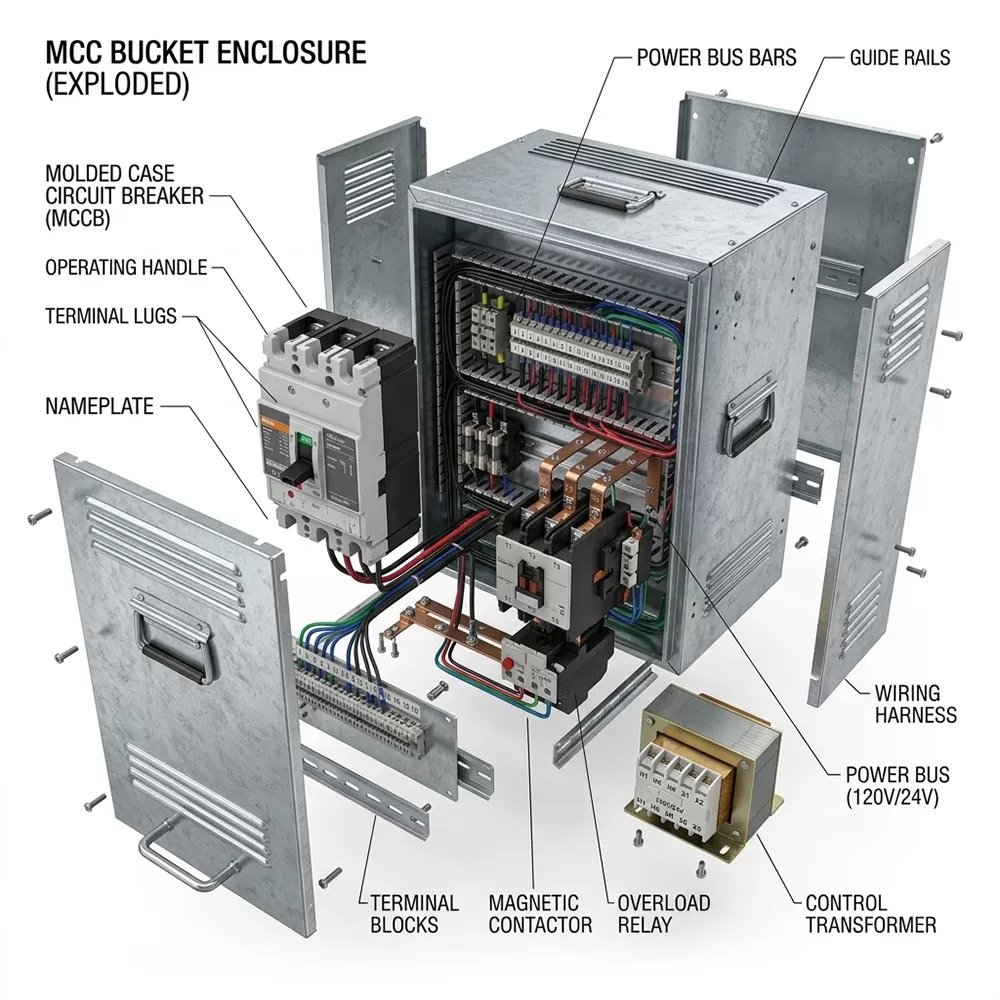

The term "bucket" refers to the individual, withdrawable metal drawer that controls a single motor. Understanding the internal MCC bucket components is essential for any electrical maintenance engineer.

Circuit Breakers or Fuses

These devices provide the primary short-circuit protection for the motor circuit. They instantly disconnect the power if a massive electrical fault or short occurs, preventing fires.

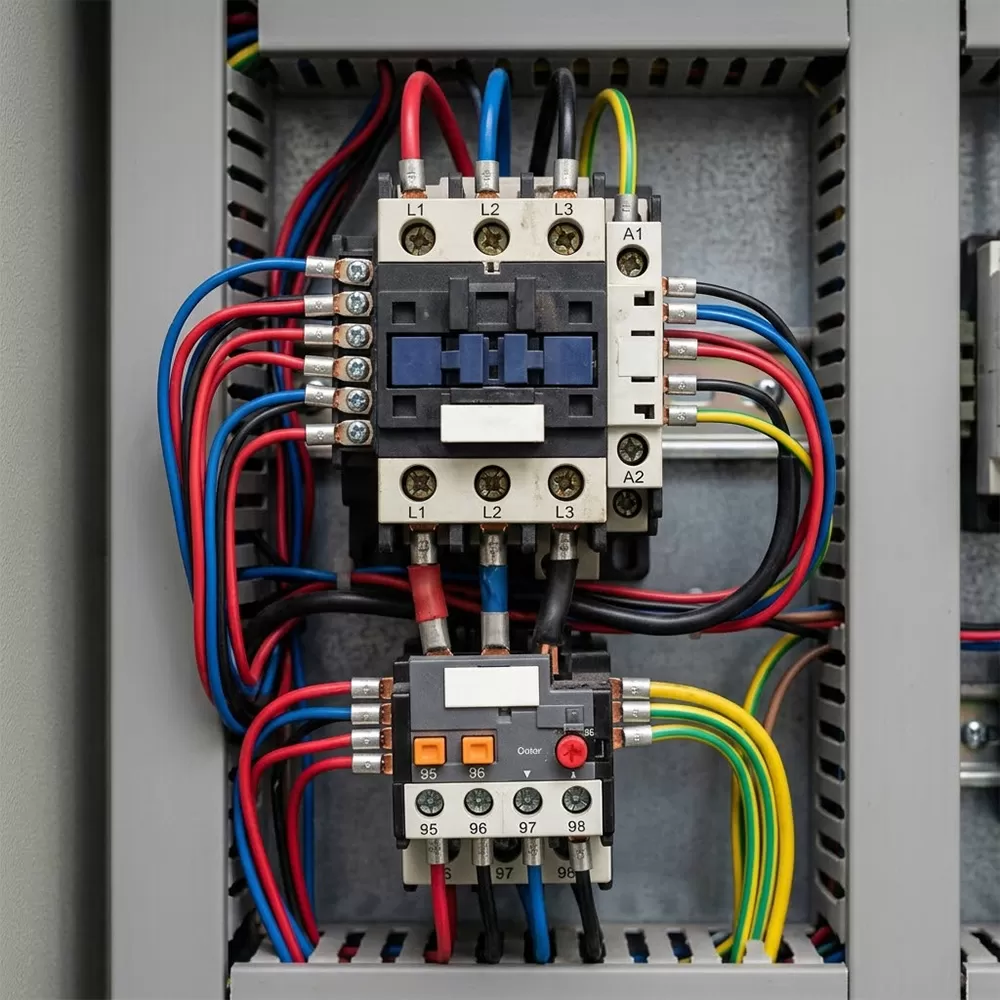

Magnetic Contactors

This is the actual mechanical switch that handles the heavy electrical load. It receives a low-voltage control signal to mechanically close the high-voltage circuit and start the motor.

Overload Relays

These relays constantly monitor the continuous operating current drawn by the field motor. If the motor works too hard and overheats, the relay trips to prevent the motor windings from melting.

Control Power Transformers (CPT)

A CPT steps down the main high voltage (such as 480V or 415V) to a much safer control voltage (like 120V or 24V). This lower voltage safely powers the indicator lights, pushbuttons, and PLCs.

The Evolution: Intelligent Motor Control Center (IMCC)

Traditional control panels rely strictly on hardwired relay logic and mechanical switches. While reliable, they provide zero feedback on system health.

A modern intelligent motor control center (IMCC) replaces these mechanical relays with advanced, microprocessor-based smart devices.

○ Smart relays communicate directly with the plant's main DCS/SCADA via networks like Profibus, Ethernet/IP, or Modbus.

○ Operators gain real-time data on precise energy consumption, motor temperature, and fault history from a central control room.

○ Predictive maintenance becomes a reality, drastically reducing unexpected downtime and equipment burnouts.

Regional Standards: NEMA vs IEC

Global EPC contractors must understand the difference between North American and European design philosophies. Specifying the wrong manufacturing standard can lead to severe site compliance failures.

When evaluating NEMA vs IEC motor control centers, the decision usually comes down to footprint, budget, and maintenance culture.

Comparing Global Manufacturing Standards

Primary Applications of a Low Voltage Motor Control Center

A low voltage motor control center (typically operating under 1000V) is the undisputed backbone of heavy industry. You will find them deployed in harsh environments requiring synchronized, heavy-duty mechanical operations.

● Water and Wastewater Treatment: Controlling dozens of synchronized filtration pumps, chemical dosing systems, and aerators.

● Oil & Gas Refineries: Managing explosive-environment compressor motors safely from a remote, climate-controlled electrical room.

● Mining & Metallurgy: Driving massive conveyor belts, crushers, and mills that require extreme starting currents and overload protection.

● Food and Beverage Manufacturing: Ensuring precise speed control on packaging lines via integrated variable frequency drives (VFDs).

FAQ

Q1: Where can I find a standard motor control center wiring diagram?

A specific motor control center wiring diagram is highly customized to the project. However, the manufacturer always provides the exact schematic inside the metal door of each individual bucket for maintenance reference.

Q2: Can an MCC be installed outdoors?

Yes, but it requires a specialized weatherproof enclosure. You must specify a NEMA 3R, NEMA 4X, or IP65 rating, and include internal anti-condensation heaters to protect the electronics.

Q3: Are buckets interchangeable between different brands?

Generally, no. The vertical busbar design, mechanical interlock mechanisms, and physical stab dimensions are proprietary to each specific manufacturer.

Q4: What is the lifespan of this equipment?

When properly maintained in a climate-controlled room, a high-quality MCC can operate safely for 20 to 30 years. Upgrading to smart IMCC relays can further extend the mechanical life of the system.
