Switchgear vs Switchboard: What's the Difference & How to Choose?

Introduction

When designing an electrical substation or a large-scale commercial complex, choosing the right power distribution equipment is critical. For EPC contractors and procurement managers, one early-stage decision stands out. You must choose between low voltage switchgearand an electrical switchboard.

Making the wrong choice carries severe consequences. Specifying the wrong equipment can lead to catastrophic electrical failures, extended plant downtime, and safety hazards. Both scenarios result in significant financial losses.

Both systems are fully assembled, turnkey metal enclosures designed to control and protect circuits. However, they are engineered for fundamentally different environments. This guide breaks down the difference between switchgear and switchboard systems to help you specify the exact right solution.

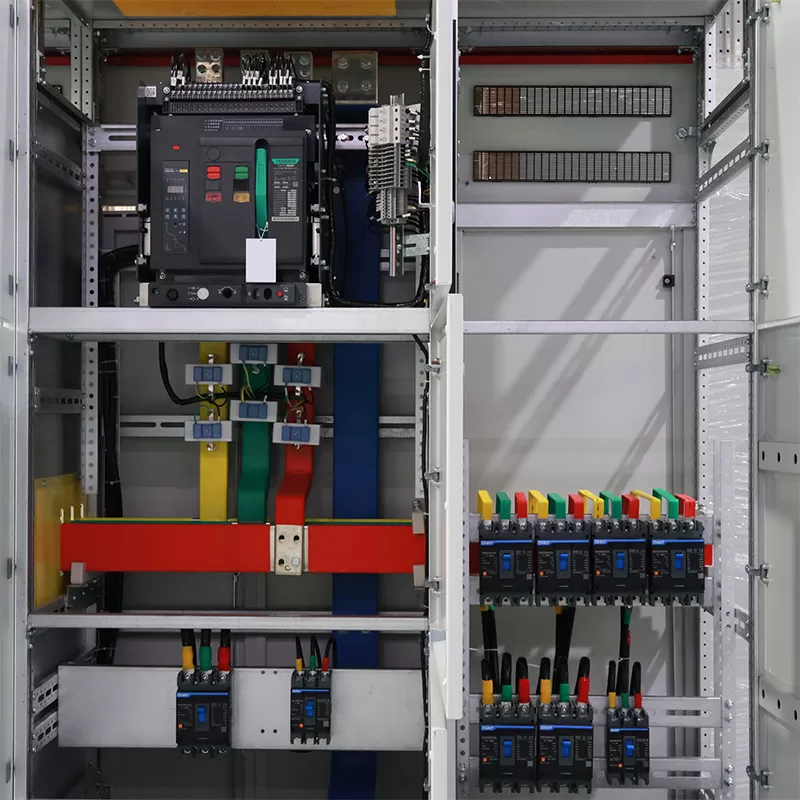

What is Low Voltage Switchgear?

Low voltage switchgear represents the highest tier of electrical protection. Operating up to 1000V AC, it manages massive power loads. It is a heavy-duty, fully assembled metal enclosure designed to withstand extreme faults.

Its defining characteristic is an uncompromising focus on reliability and isolation. The internal architecture is strictly compartmentalized. Here are the core structural features:

○ Utilizes individual, heavy-duty Air Circuit Breakers (ACBs).

○ Main busbars, breakers, and outgoing cables are housed in separate metal compartments.

○ Contains internal arc flash energy to prevent total system blackouts.

○ Features "draw-out" or withdrawable circuit breakers.

○ Allows a faulty breaker to be removed without shutting down the main power supply.

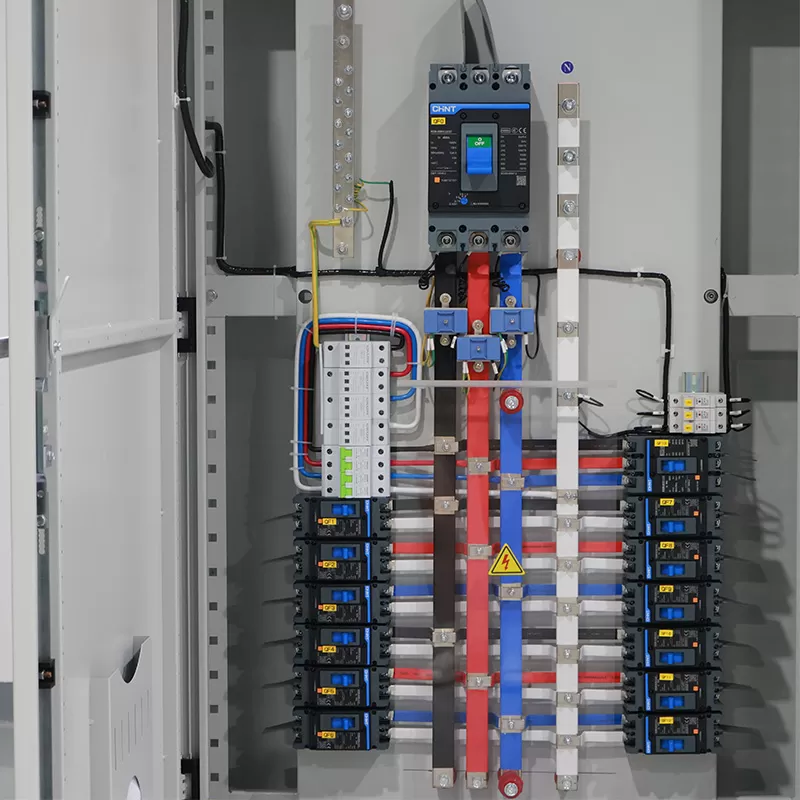

What is an Electrical Switchboard?

An electrical switchboard is a large single panel or an assembly of panels. Like switchgear, it is delivered as a fully assembled, turnkey solution. However, it is optimized for budget, space efficiency, and front-accessibility.

Unlike switchgear, a standard switchboard lacks extensive metal compartmentalization. The busbars, breakers, and cables often share a common internal space. Here are its main characteristics:

○ Typically utilizes Molded Case Circuit Breakers (MCCBs).

○ Breakers are generally group-mounted on a single backpan.

○ Highly compact and can often be installed directly against a wall.

○ Provides excellent protection for normal commercial loads.

○ Requires the panel to be de-energized to safely replace a component.

Core Differences Between Switchgear and Switchboard

To make an informed procurement decision, engineers must evaluate specific technical metrics. Understanding the switchgear vs switchboard capabilities ensures a safe and compliant facility design.

1. Short-Circuit Withstand Capacity

This is the most critical engineering difference. It defines how much fault current the equipment can survive. Industrial facilities experience massive fault currents during a short circuit.

● Switchgear: Robustly engineered to withstand and interrupt up to 100kA+. The heavy copper busbars survive extreme electro-dynamic forces.

● Switchboard: Rated for lower fault currents, typically 50kA to 65kA. Exceeding this can warp busbars and cause system meltdowns.

2. Form of Separation and Arc Containment

The structural safety is strictly defined by the Form of separation under IEC 61439 standards.

● Switchgear: Standardly built to Form 4a or Form 4b segregation. Solid metal barriers confine arc flash damage to a single drawer.

● Switchboard: Utilizes Form 1, Form 2, or Form 3 separation. Group-mounted breakers share air space, meaning an arc flash could spread easily.

3. Circuit Breaker Types and Mounting Options

The internal components directly dictate your facility's maintenance workflow and downtime.

● Switchgear: Exclusively uses draw-out ACBs. Maintenance teams can hot-swap a 4000A breaker in minutes.

● Switchboard: Uses fixed-mounted or plug-in MCCBs. Replacing a fixed breaker requires isolating and shutting down the electrical supply.

4. Physical Footprint and Clearances

Space in an industrial electrical panel room is highly expensive and often limited.

● Switchgear: Requires a much larger footprint. It is deeper and requires rear access for massive cable terminations.

● Switchboard: Shallow and space-efficient. Because it is often front-connected, it can be placed directly against a wall.

5. Total Cost of Ownership (TCO)

From an initial procurement standpoint, capital expenditure drives many project decisions.

● Switchgear: Demands a high initial capital investment. However, zero-downtime maintenance often pays for itself during the first major fault.

● Switchboard: Significantly more cost-effective upfront. This initial saving is absolute for applications where occasional downtime is acceptable.

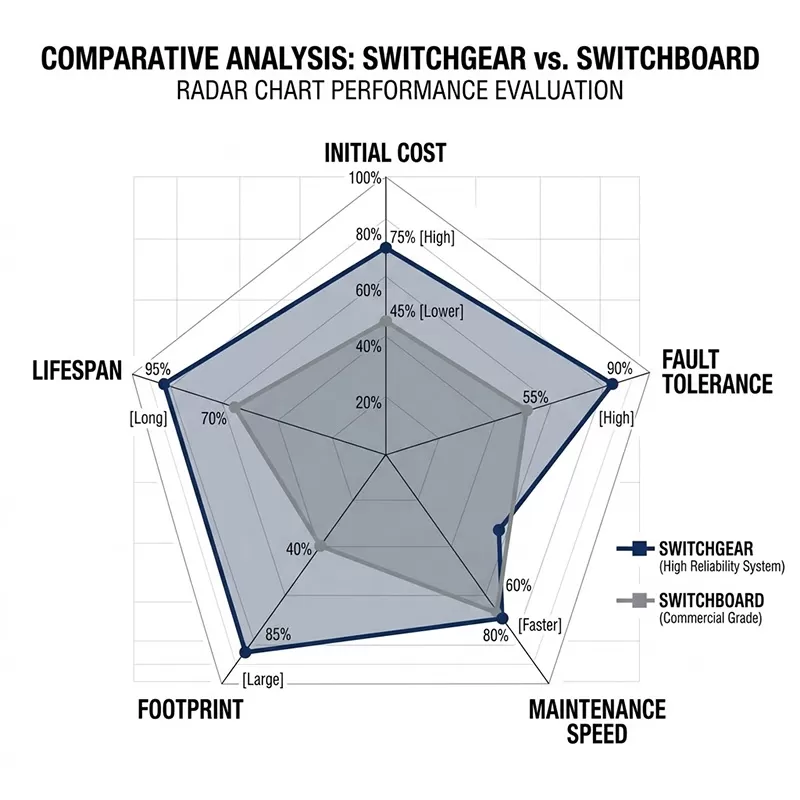

Technical Specification Comparison

To summarize the engineering parameters, the table below provides a direct technical comparison.

Technical Capabilities Matrix

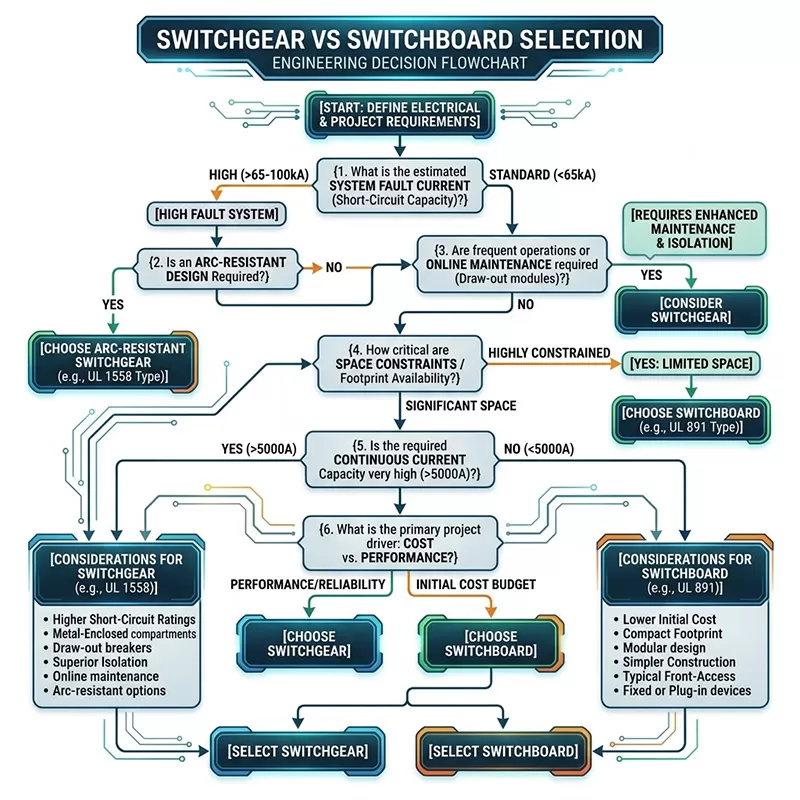

How to Choose the Right Solution for Your Project?

Selecting between these systems is about aligning engineering capabilities with operational demands. For EPC contractors, the decision usually comes down to three specific scenarios.

Scenario 1: Mission-Critical and Heavy Industrial Facilities Power continuity in petrochemical refineries or data centers is non-negotiable. Low voltage switchgear is the mandatory choice here.

○ Massive fault currents require extreme short-circuit bracing.

○ Draw-out breakers allow maintenance without shutting down critical operations.

○ The high initial cost is an insurance policy against production downtime.

Scenario 2: Space-Constrained Commercial and Light Industrial Projects like multi-story office buildings have lower fault currents. An electrical switchboard is the optimal and standard solution.

○ Scheduled off-hour power shutdowns are generally acceptable.

○ The front-access design saves valuable real estate in tight electrical rooms.

○ Significantly reduces the initial project procurement budget.

Scenario 3: The Hybrid Approach In large-scale EPC projects, the most efficient design utilizes a combination of both.

○ Heavy-duty switchgear handles the main incoming substation loads.

○ Power is then fed downstream to switchboards strategically placed near localized loads.

○ This approach perfectly balances facility safety, footprint, and budget.

Project Application Matrix

FAQ

Q1: Can an electrical switchboard handle high current loads like 4000A?

Yes. Modern heavy-duty switchboards can be custom-assembled for 4000A or 5000A main buses. However, they still lack the extreme short-circuit fault tolerance and compartmentalized safety of switchgear.

Q2: Do I always need rear access for switchgear?

In most standard configurations, yes. Switchgear requires rear access for terminating large cables. However, some specialized front-access designs exist for severe space constraints.

Q3: Which equipment is better suited for outdoor installations?

Both can be installed outdoors if built into correct weather-proof enclosures. You must specify an IP54, IP65, or NEMA 3R/4X rating with rubber gasketing and anti-condensation heaters.

Q4: Can I upgrade a switchboard to have draw-out breakers later?

Generally, no. The internal architecture, busbar bracing, and metal compartmentalization are entirely different. This is why accurate long-term facility planning during procurement is critical.
