PLC Control Panel Interference: Troubleshooting EMI Issues

Introduction

Electromagnetic Interference (EMI) is the invisible enemy of industrial automation. It causes random sensor faults, sudden communication drops, and unexplainable logic errors.

Finding the root cause of electrical noise is critical for facility uptime. This guide breaks down the five most common EMI culprits and provides actionable engineering solutions to eliminate them permanently.

Cause 1: Improper Grounding Practices

Poor grounding is the absolute leading cause of electrical noise in industrial PLC control panels.

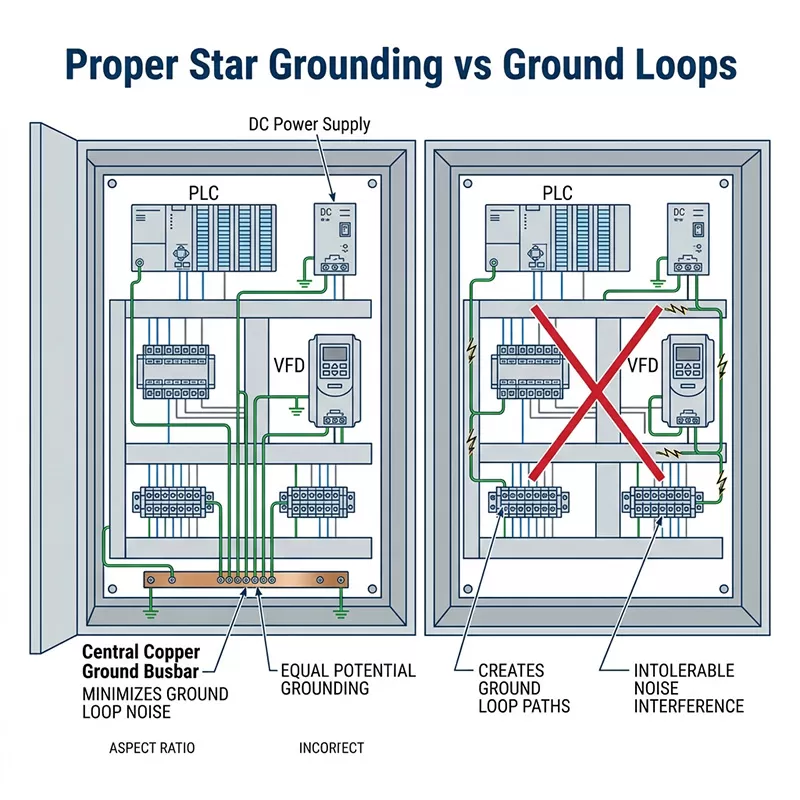

When grounds are daisy-chained instead of star-grounded, it creates dangerous ground loops. These loops act as antennas, capturing stray high-frequency noise and injecting it directly into the PLC processor.

○ Technicians often mistakenly ground sensitive analog shields at both ends, creating loop currents.

○ Paint or rust on the metal backplate prevents a solid, low-impedance connection to the earth ground.

○ Ignoring strict PLC panel grounding requirements allows VFD noise to contaminate the entire cabinet.

Cause 2: Mixing High-Voltage and Low-Voltage Wiring

Running power cables and control wires in the same plastic wireway is an engineering disaster.

High AC voltages naturally create strong magnetic fields. When a 480V motor cable runs parallel to a 24V DC sensor wire, it inductively couples noise directly into the low-voltage signal.

○ AC power lines and DC communication cables are stuffed into the same narrow duct.

○ Cables cross each other at parallel angles rather than the recommended 90-degree perpendicular angles.

○ The overall electrical control panel layout completely ignores the spatial separation rules.

Standard EMI Wire Separation Distance Guidelines

Cause 3: Unshielded VFD Cables and Motor Leads

Variable Frequency Drives (VFDs) are massive generators of high-frequency harmonics.

If the cables connecting the VFD to the motor are not properly shielded, they broadcast electromagnetic radiation throughout the enclosure. Proper VFD and PLC panel integration requires specialized cabling.

○ Standard PVC cables are used for motors instead of shielded, symmetrical VFD cables.

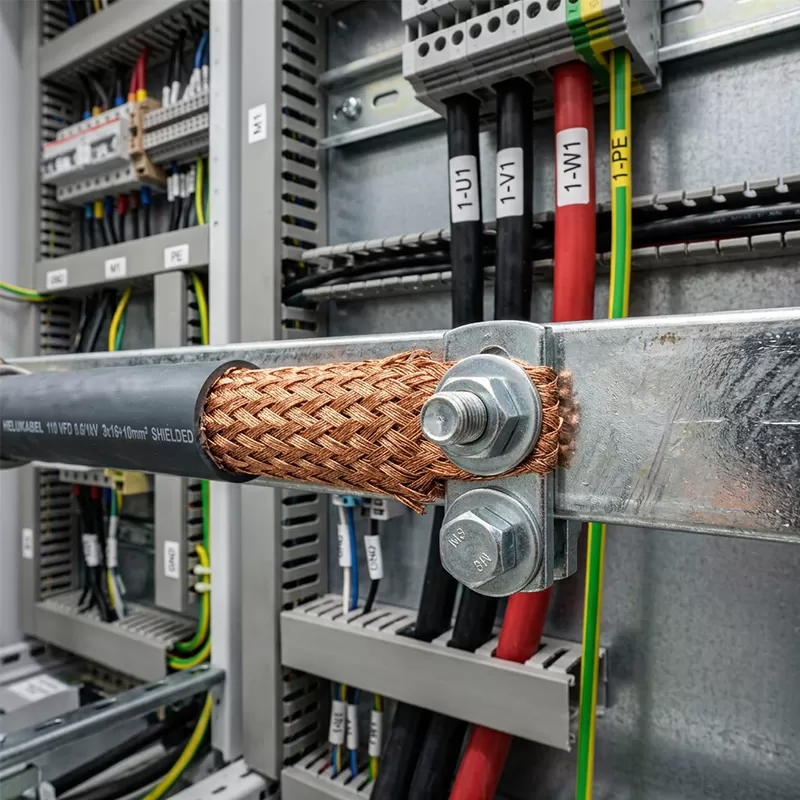

○ The copper braided shield is stripped too far back from the VFD grounding terminal.

○ Engineers fail to install ferrite beads on the outgoing motor leads to choke high-frequency spikes.

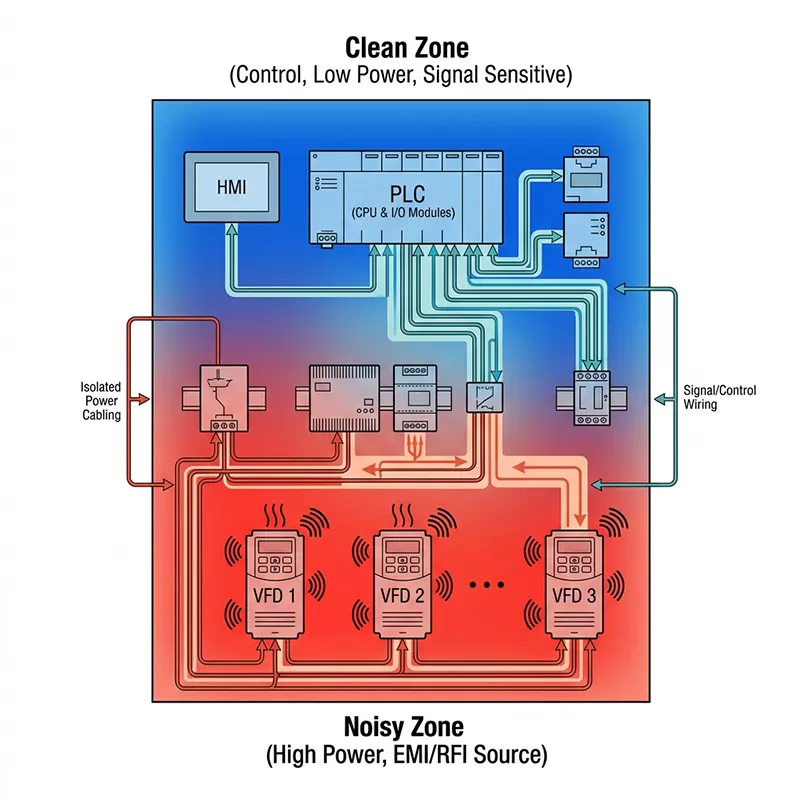

Cause 4: Poor Component Placement and Layout

The physical distance between components heavily dictates how much noise is transferred.

Placing a sensitive analog PLC input card right next to a heavy magnetic contactor guarantees signal corruption. Following strict PLC panel design guidelines is non-negotiable.

○ Heat-generating and noise-producing VFDs are placed dead center among sensitive PLCs.

○ Wire routing forces delicate encoder cables to pass directly over main incoming power breakers.

○ The cabinet is too small, forcing technicians to cram incompatible components tightly together.

Cause 5: Lack of Dedicated EMI/RFI Filters

Modern factory environments are saturated with radio frequency interference (RFI).

Relying solely on physical separation is sometimes not enough. Without dedicated control panel EMI shielding and active filters, noise will ride the incoming power lines straight into your DC power supplies.

○ No AC line reactors are installed ahead of the main VFD inputs.

○ The 24V DC power supply lacks an integrated EMI filter to clean the incoming voltage.

○ The metal enclosure doors lack conductive EMI gaskets to block external factory radiation.

How to Fix and Prevent PLC Panel Interference

Resolving erratic PLC behavior requires a methodical, step-by-step approach. You must systematically isolate the noise source and implement proven shielding techniques.

1. Segregate and Re-route Cables

Immediately physically separate your AC power lines from your DC signal wires. Ensure that if they must cross, they only do so at a rigid 90-degree angle to minimize inductive coupling.

2. Implement a True Star Ground System

Remove all daisy-chained ground wires. Run every single ground connection back to a single, unpainted, heavy-duty copper busbar to ensure equal zero-voltage potential.

3. Install Ferrite Cores and Line Filters

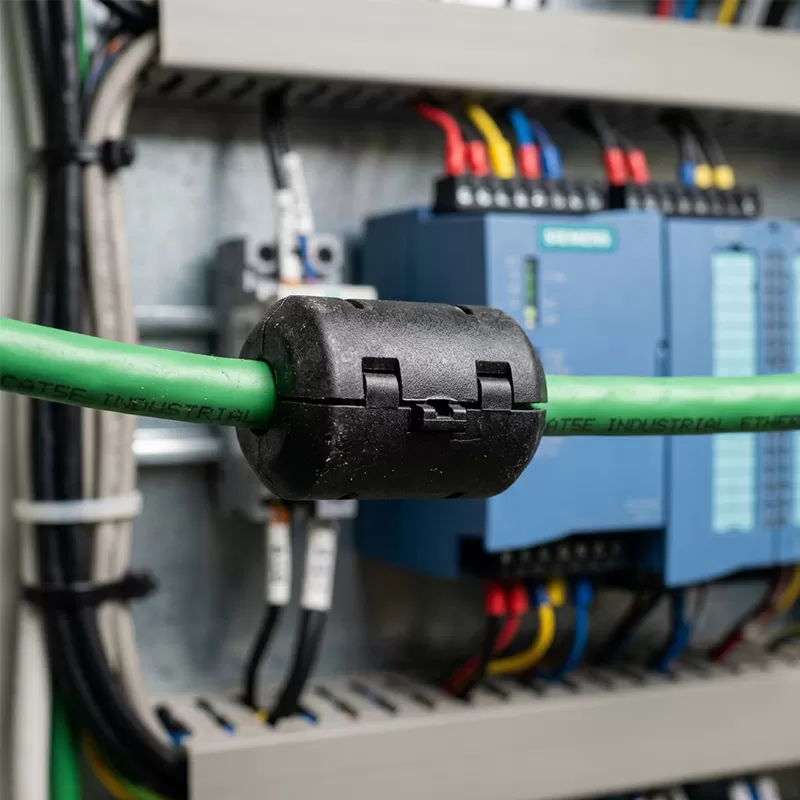

Snap ferrite beads over your analog signal cables and Ethernet lines just before they enter the PLC. Install AC line reactors to clean the incoming power feeding the panel.

EMI Troubleshooting Matrix

FAQ

Q1: Why should I only ground a shielded cable at one end?

Grounding both ends of a cable creates a closed conductive loop. If there is a slight voltage difference between the two ground points, current will flow through the shield, generating severe internal noise.

Q2: Can regular wireways block EMI?

No, standard plastic slotted wire ducts offer zero electromagnetic protection. To block EMI, you must use solid metal conduits or physically distance the cables using proper PLC control panel wiring standards.

Q3: Does a metal backplate count as a good ground?

Only if it is completely free of paint, rust, and oxidation at the connection points. Always use a dedicated copper ground busbar bolted securely to a clean metal surface.
