Low Voltage Switchgear Overheating: Top 5 Causes and How to Fix Them

Introduction

Overheating is a silent killer inside industrial electrical rooms.

It causes unexpected breaker tripping, accelerates component degradation, and creates severe fire hazards. Identifying the root cause of LV  switchgear overheating is critical for facility safety.

This troubleshooting guide breaks down the five most common causes of dangerous temperature rises. We will also provide actionable engineering solutions to fix them permanently.

Cause 1: Loose Electrical Connections

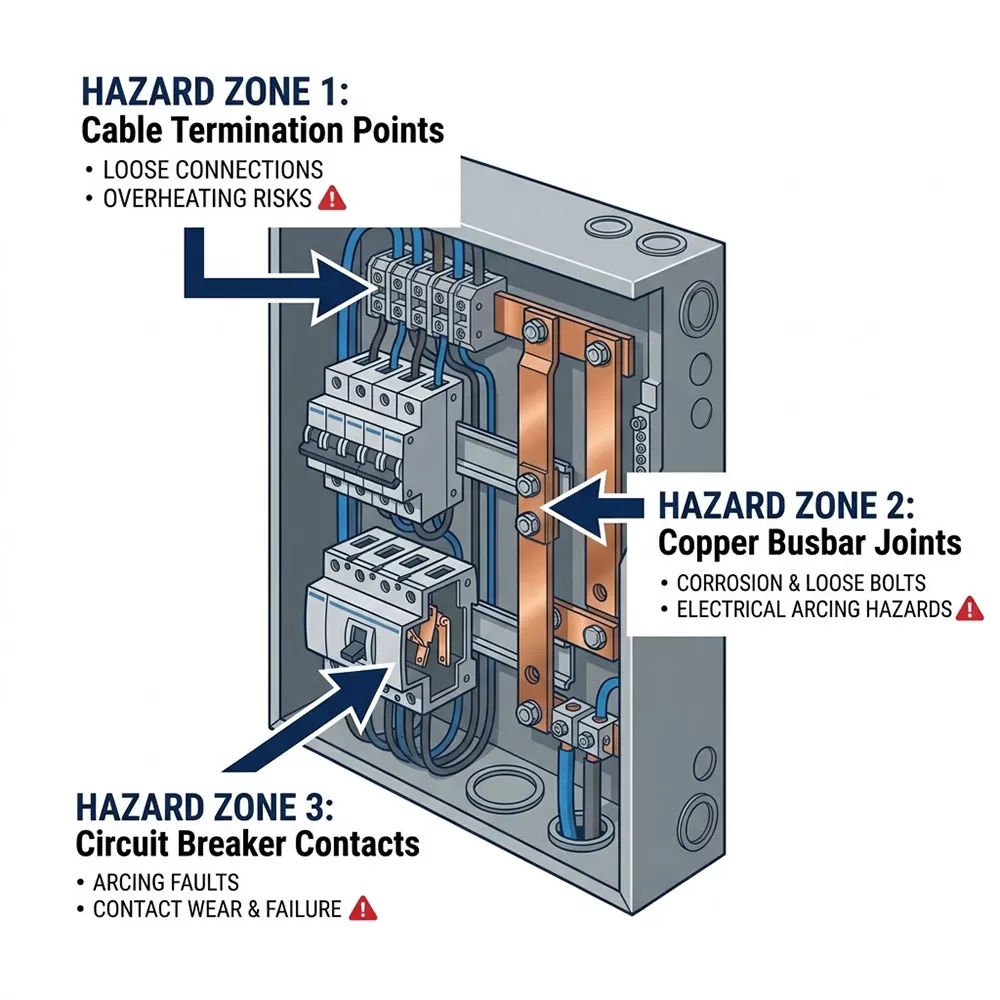

Loose electrical connections are the number one cause of heat generation in electrical panels.

When a bolt or joint is not tightened to the correct torque, electrical resistance increases at that specific point. As current flows through this high-resistance point, it generates extreme localized heat.

○ Vibrations from nearby heavy machinery often loosen bolts over time.

○ Thermal cycling (expansion and contraction from heating and cooling) loosens joints.

○ Improper installation torque during initial factory assembly is a common culprit.

Cause 2: Overloaded Circuits Beyond Rated Capacity

Every component inside a switchgear assembly has a strict maximum thermal threshold.

If facility managers add too many new machines to an existing production line, the electrical draw may exceed the panel's original design. Drawing 2000A through a breaker rated for 1600A will cause massive overheating.

○ Continuous overloading degrades the insulation on cables.

○ It causes the internal bimetallic strips in breakers to warp and trip prematurely.

○ It severely weakens the dielectric strength of the entire system.

Standard Electrical Panel Temperature Limits (IEC Guidelines)

Cause 3: Poor Ventilation and High Ambient Temperatures

Switchgear generates natural heat during operation. This heat must escape the metal enclosure.

If the electrical room lacks proper air conditioning (HVAC), the ambient temperature will push the internal panel temperature past safe limits. Furthermore, blocked ventilation louvers on the cabinet trap the hot air inside.

○ Outdoor enclosures directly under the sun suffer from severe solar heat gain.

○ Blocked cooling fans or failed exhaust systems cause rapid heat buildup.

○ Tight, overcrowded electrical rooms prevent natural convection cooling.

Cause 4: Dust and Debris Accumulation

Industrial environments like mining, textile, or paper mills are heavily contaminated with airborne particles.

When conductive dust or thick grime settles on copper busbars and insulators, it acts as a thermal blanket. It prevents the internal components from shedding heat into the surrounding air.

○ Thick dust traps heat directly against the copper components.

○ Conductive dust can cause micro-arcing, generating even more heat.

○ It clogs internal ventilation filters, choking the cabinet's airflow.

Cause 5: Harmonic Currents and Power Quality Issues

Modern factories use thousands of Variable Frequency Drives (VFDs) and LED lighting systems.

These non-linear loads create harmonic distortion in the electrical grid. High-frequency harmonic currents travel on the neutral wire, creating intense, invisible heat that standard breakers often fail to detect.

○ Harmonics cause severe overheating in the neutral busbar.

○ They create "skin effect" heating inside power cables.

○ They cause transformers feeding the switchgear to run dangerously hot.

How to Fix and Prevent Switchgear Overheating

You cannot manage what you cannot measure. Resolving these issues requires professional diagnostic tools and strict protocols.

Executing a proper switchgear maintenance procedure is the only way to prevent unexpected meltdowns.

1. Conduct Annual Infrared Thermography

Using thermal imaging switchgear inspections is the most effective diagnostic tool. An infrared camera can instantly spot a loose, glowing-hot connection without shutting down the power.

2. Implement a Re-Torqueing Schedule

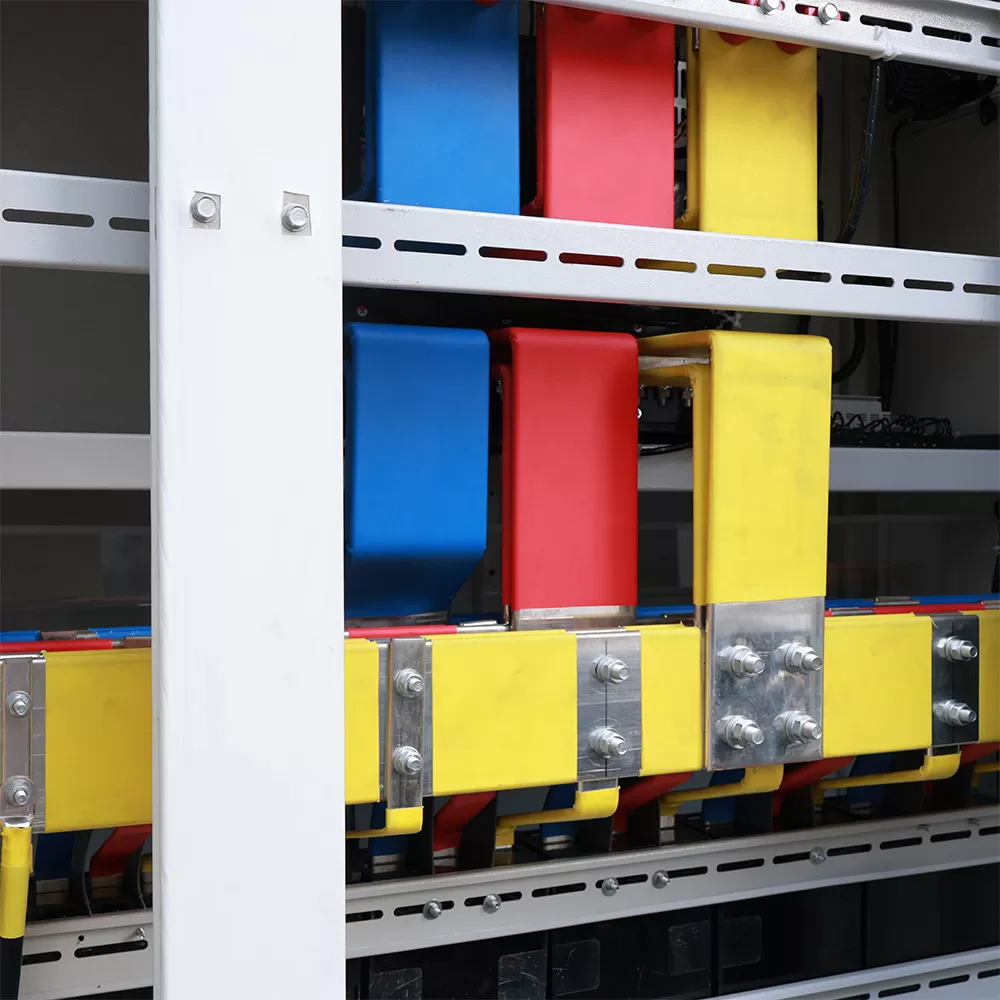

During a scheduled shutdown, technicians must use calibrated torque wrenches on every single busbar joint. Tightening bolts to the exact manufacturer specifications eliminates high-resistance hotspots.

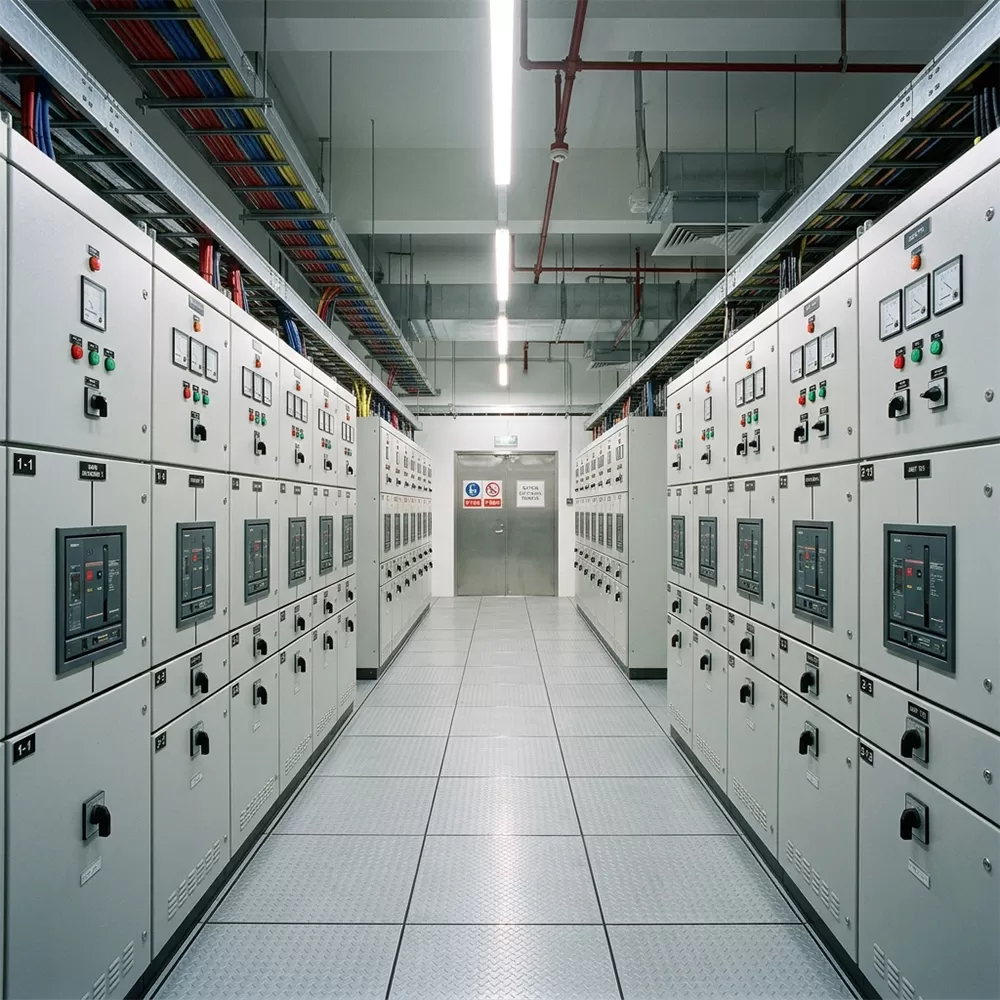

3. Upgrade Enclosure Cooling Systems

If ambient heat is the issue, active cooling must be installed. This includes adding filtered exhaust fans to the cabinet doors or upgrading the electrical room's central HVAC system.

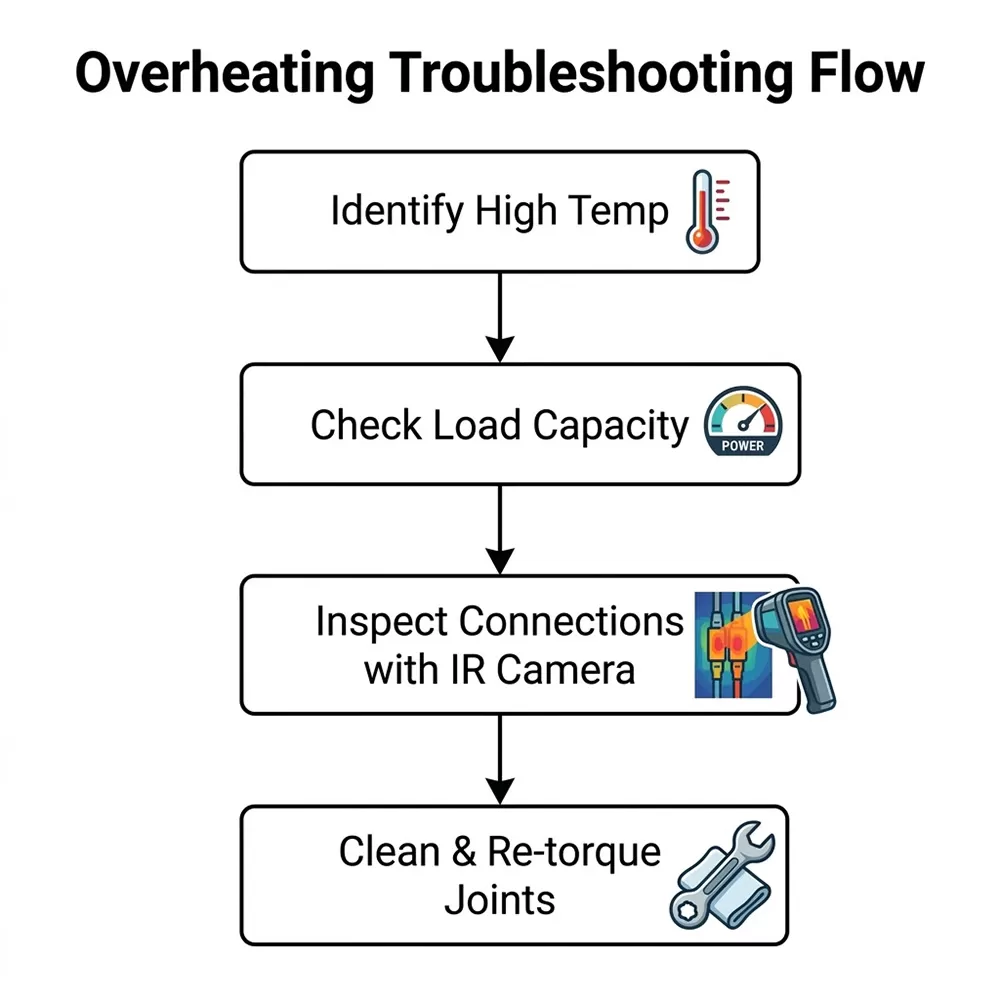

Switchgear Overheating Troubleshooting Matrix

FAQ

Q1: At what temperature should I shut down my switchgear?

If any internal connection exceeds 90°C (194°F), or if you smell burning insulation, you must de-energize the system immediately. Continued operation at this level risks catastrophic arc flash and fire.

Q2: Can I use standard cooling fans to lower the temperature?

Yes, but you must ensure the fans are fitted with proper dust filters. Blowing dirty, contaminated factory air into an electrical cabinet will only worsen the heat buildup over time.

Q3: How often should I perform thermal imaging on my panels?

For heavy industrial and continuous-process facilities, infrared thermography should be conducted every 6 to 12 months while the equipment is under normal load.
