How to Spec a Generator Paralleling/Synchronization Panel for Continuous Power

Introduction

Deploying continuous power infrastructure requires absolute reliability across every node of the electrical network. Relying on a single massive generator creates a fatal single point of failure for mission-critical facilities.

Specifying an incorrect switchboard leads to catastrophic phase mismatches, unmanaged thermal stress, and devastating facility blackouts. Engineering contractors face immense financial liabilities if power redundancy fails during grid outages.

This comprehensive specifier’s guide breaks down the precise engineering parameters required to configure a robust system. Use this blueprint to properly design and procure a high-performance generator paralleling panel for your next project.

Key Factors to Consider When Selecting a Paralleling Switchgear

Configuring a reliable multi-generator parallel switchboard requires evaluating multiple interdependent electrical and mechanical parameters. Skipping any engineering constraint compromises the stability of the entire plant busbar.

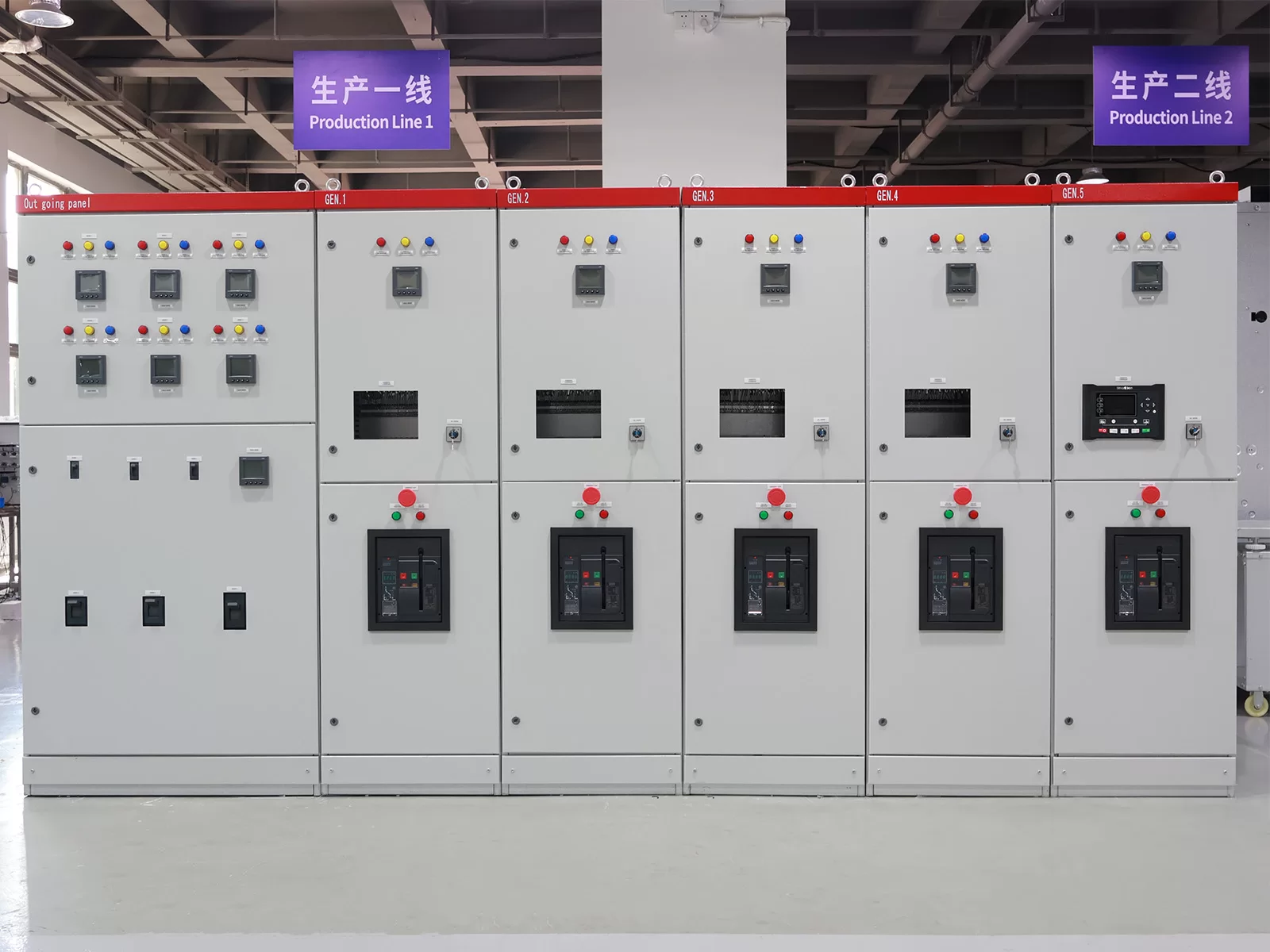

1. Electrical Ratings and Busbar Capacity

The switchboard must handle maximum continuous output from multiple gensets while withstanding heavy fault currents. High-purity copper busbars are mandatory to prevent severe thermal degradation under heavy loads.

● Continuous Ampacity: Size the main busbar to handle the combined maximum output of all synchronized generators.

● Short-Circuit Withstand (kA): Ensure the enclosure withstands peak fault currents without busbar mechanical deformation.

● Voltage and Frequency Matching: Configure the system to match regional low-voltage grid standards (e.g., 400V/480V, 50Hz/60Hz).

2.Environmental Protection and IP Ratings

Site conditions dictate how effectively the generator low voltage switchgear withstands airborne dust, moisture, and ambient temperature swings. Selecting inadequate ingress protection leads to rapid internal corrosion.

● Indoor Climate-Controlled Rooms: Specify IP41 or IP42 ratings for clean, protected generator control rooms.

● Harsh Industrial Environments: Opt for IP54 or IP55 enclosures equipped with anti-condensation space heaters.

● Corrosive Coastal Projects: Mandate treated anti-corrosion frames and specialized powder coating layers.

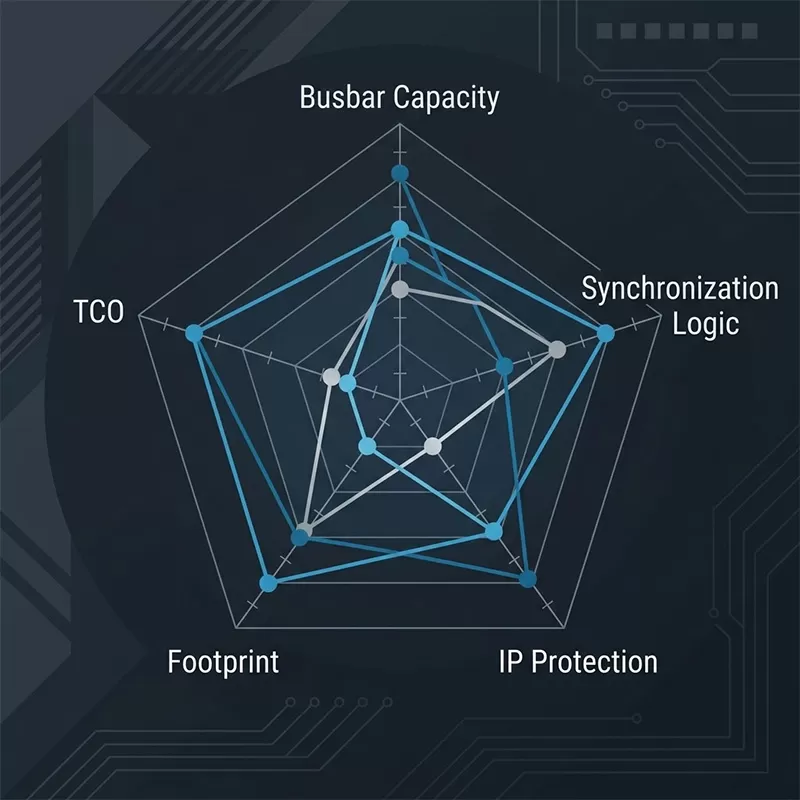

Application Scenario vs. Recommended Specifications Matrix

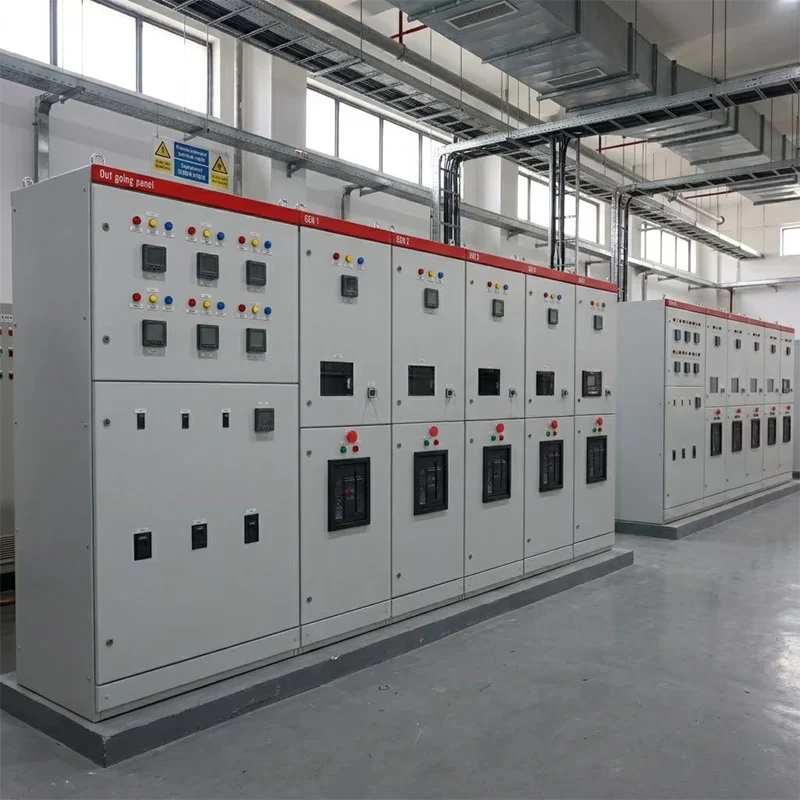

3. Footprint and Physical Clearance

Paralleling systems often consist of multi-cubicle lineups that demand careful spatial planning within the power room. Maintaining proper service clearance ensures technician safety during routine maintenance.

● Cubicle Width and Depth: Account for breaker pull-out rails and internal busbar routing channels.

● Front and Rear Access: Ensure sufficient aisle space for opening heavy cabinet doors and inspecting internal wiring.

● Cable Trench Alignment: Coordinate bottom or top cable entry plates with incoming generator power trenches.

4. Standards and Compliance Certification

Procuring internationally certified equipment guarantees smooth customs clearance and rapid site inspection approvals. Every diesel generator synchronization system must adhere to rigorous global safety benchmarks.

● IEC 61439 Compliance: Mandate factory type-test verification for low-voltage switchgear temperature rise limits.

● CE or UL Markings: Verify that internal circuit breakers and protection relays carry recognized safety certifications.

● Factory Acceptance Testing (FAT): Require complete functional simulation tests before the equipment leaves the factory floor.

Customization vs. Standard Modular Configurations

Standard off-the-shelf panels rarely fulfill complex multi-genset single-line diagrams (SLDs). Opting for engineered custom assemblies guarantees seamless integration with site plant management systems.

● Custom Communication Protocols: Integrate Modbus, Profibus, or Ethernet gateways for SCADA remote monitoring.

● Tailored Logic Sequences: Program custom load-shedding and automatic generator rotation schedules.

● Expandable Busbar Extensions: Design stub-ends on busbars to accommodate future facility power expansions.

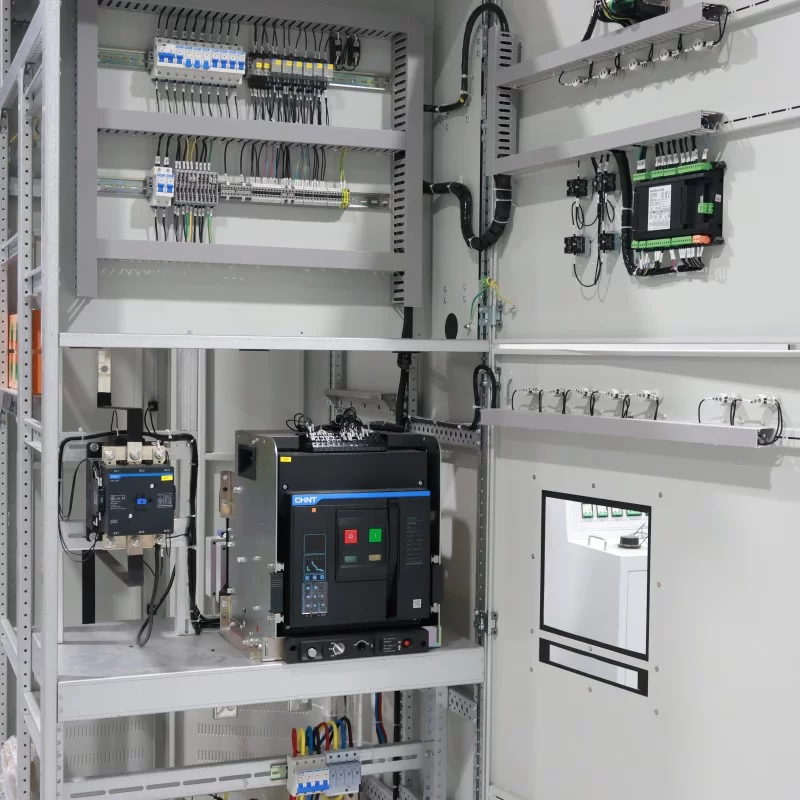

Receiving a fully assembled and pre-tested paralleling power control panel directly from the manufacturer eliminates complex field wiring errors. Factory-integrated testing guarantees that all synchronization controllers and breakers function harmoniously prior to site delivery.

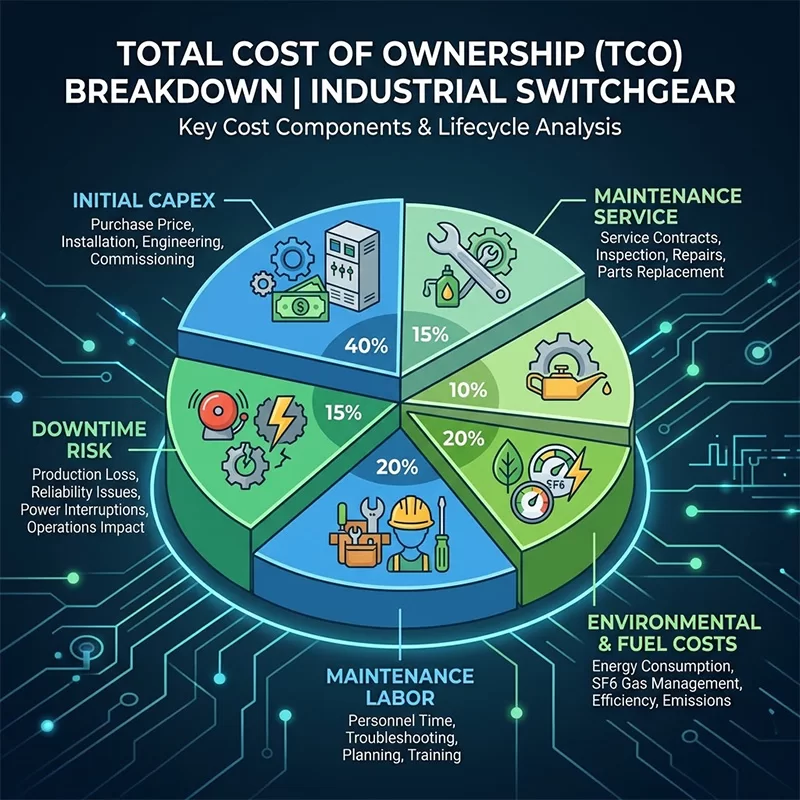

Evaluating the Total Cost of Ownership (TCO)

Focusing solely on initial purchase price (CAPEX) often conceals crippling long-term operational expenses (OPEX). High-quality synchronization hardware prevents catastrophic downtime and optimizes fuel consumption.

● Optimized Fuel Burn: Multi-unit load sharing shuts down unneeded generators during low-demand windows, saving thousands in fuel costs.

● Preventing Nuisance Trips: Premium components eliminate false alarms and unbudgeted factory production halts.

● Extended Equipment Lifespan: High-grade switchgear delivers reliable, maintenance-free operation for over two decades.

Supplier Selection Criteria: Beyond the Product

Partnering with an experienced OEM manufacturer is just as crucial as writing precise technical specifications. A qualified supplier acts as an engineering partner throughout the entire project lifecycle.

● Engineering Drawing Support: The supplier must provide comprehensive CAD layouts, 3D step files, and schematics within 48 hours.

● In-House Testing Facilities: Verify that the factory conducts full dielectric, insulation, and synchronization simulation tests.

● Seaworthy Export Packaging: Heavy-duty vacuum-sealed moisture protection prevents ocean freight corrosion.

Vendor Evaluation Checklist Matrix

FAQ

Q: What is the primary function of an automatic generator synchronizer?

An automatic generator synchronizer continuously measures voltage, frequency, and phase angle differences between an incoming generator and a live busbar, making precise micro-adjustments to match them before closing the breaker.

Q: Can I parallel generators of different kW ratings in the same panel?

Yes. Modern digital controllers and advanced generator synchronization panel units can successfully manage mixed-capacity generators, distributing active loads proportionally based on each engine's maximum capability.

Q: How does load sharing work across multiple generators?

The system utilizes dedicated load-sharing modules connected via communication lines to send throttle commands to engine governors, ensuring every running generator carries its exact share of the total plant demand.

Q: Do I need a separate control room for a multi-generator switchboard?

While not always mandatory, installing the switchboard in a clean, temperature-controlled electrical room protects sensitive microprocessors from ambient factory dust, extreme heat, and severe vibration.

Partner with XDEPE for Advanced Paralleling Solutions

Specifying the correct paralleling architecture is vital for maintaining continuous, uninterrupted industrial operations. At XDEPE, we engineer and manufacture custom-built generator synchronization panels and low-voltage switchgear tailored to your exact project parameters. Send your Single-Line Diagram (SLD) to our engineering team today to receive a comprehensive, factory-direct quotation within 24 hours.
