How to Choose Low Voltage Switchgear for Industrial Plants

Introduction

Designing the electrical infrastructure for an industrial plant leaves zero room for error. The power panel serves as the central nervous system of your entire facility.

Learning how to choose low voltage switchgear correctly is one of the most critical decisions an engineering team must make. Making the wrong choice leads to catastrophic short circuits, arc flash hazards, and costly downtime.

Conversely, a properly specified low voltage power distribution system guarantees absolute safety and continuous power delivery for decades. This guide outlines the exact technical parameters and commercial steps required to select the right equipment.

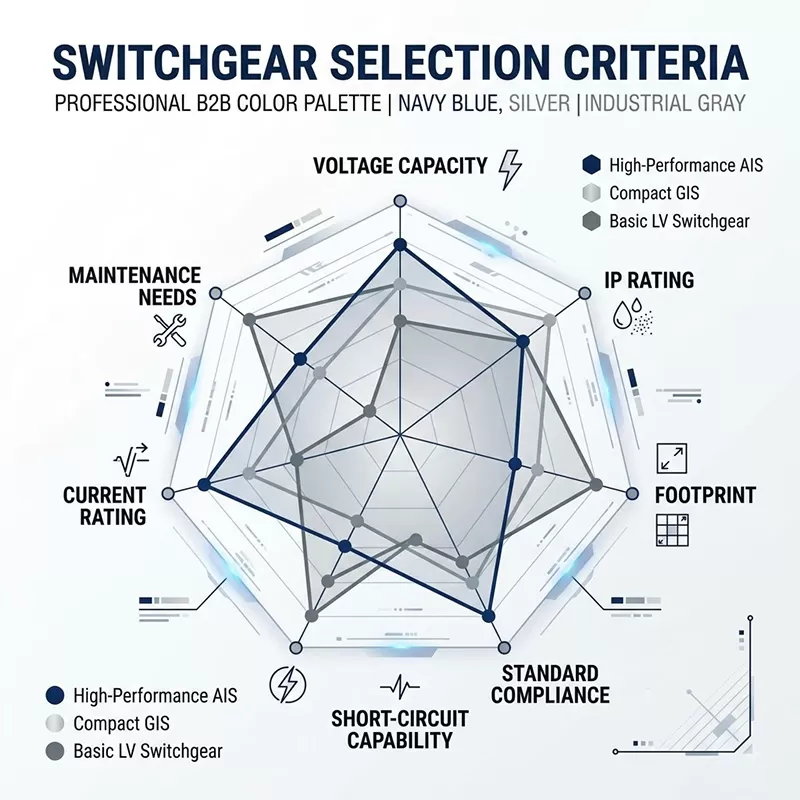

Key Factors to Consider When Selecting Low Voltage Switchgear

Executing an industrial switchgear selection requires a structured engineering approach. EPC contractors and procurement managers must evaluate equipment against specific operational demands.

Voltage and Current Ratings

You must accurately calculate the continuous load and maximum fault capacity of your electrical grid. Undersizing these parameters leads to thermal failure and potential equipment explosions.

● Continuous Current (In): Dictates the size of the main copper busbars, typically ranging from 1600A to 6300A.

● Short-Circuit Withstand Capacity (Icw): The maximum fault current the panel can survive, often rated at 50kA, 85kA, or 100kA for 1 second.

● Operational Voltage (Ue): Standard industrial systems operate at 400V, 415V, 480V, or 690V AC.

Environmental Conditions (IP Ratings/NEMA)

The installation environment dictates the protective enclosure design. Ambient dust, moisture, and corrosive gases rapidly degrade standard panels.

● Indoor Clean Rooms: IP31 or IP42 ratings protect against vertical water drips and small solid objects.

● Harsh & Outdoor Environments: Require a high switchgear IP rating, such as IP54 or IP65 (NEMA 3R/4X).

● Temperature Management: Outdoor and harsh-duty units require sloped roofs, seamless rubber gaskets, and internal space heaters.

Application Scenario vs. Recommended Enclosure Specifications

Space and Footprint Constraints

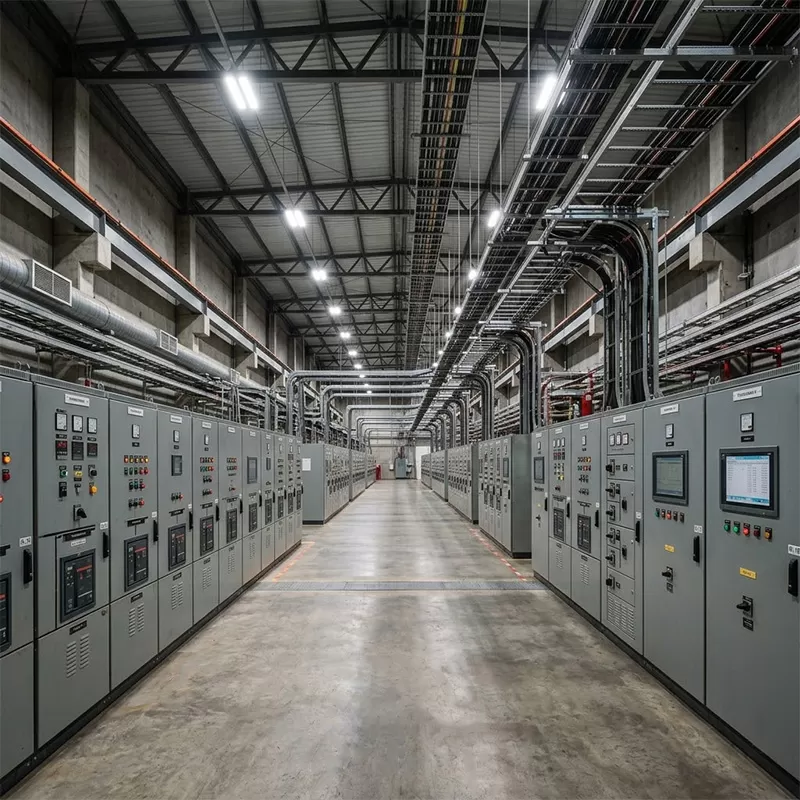

Physical footprint and maintenance clearance dictate the layout of your electrical room.

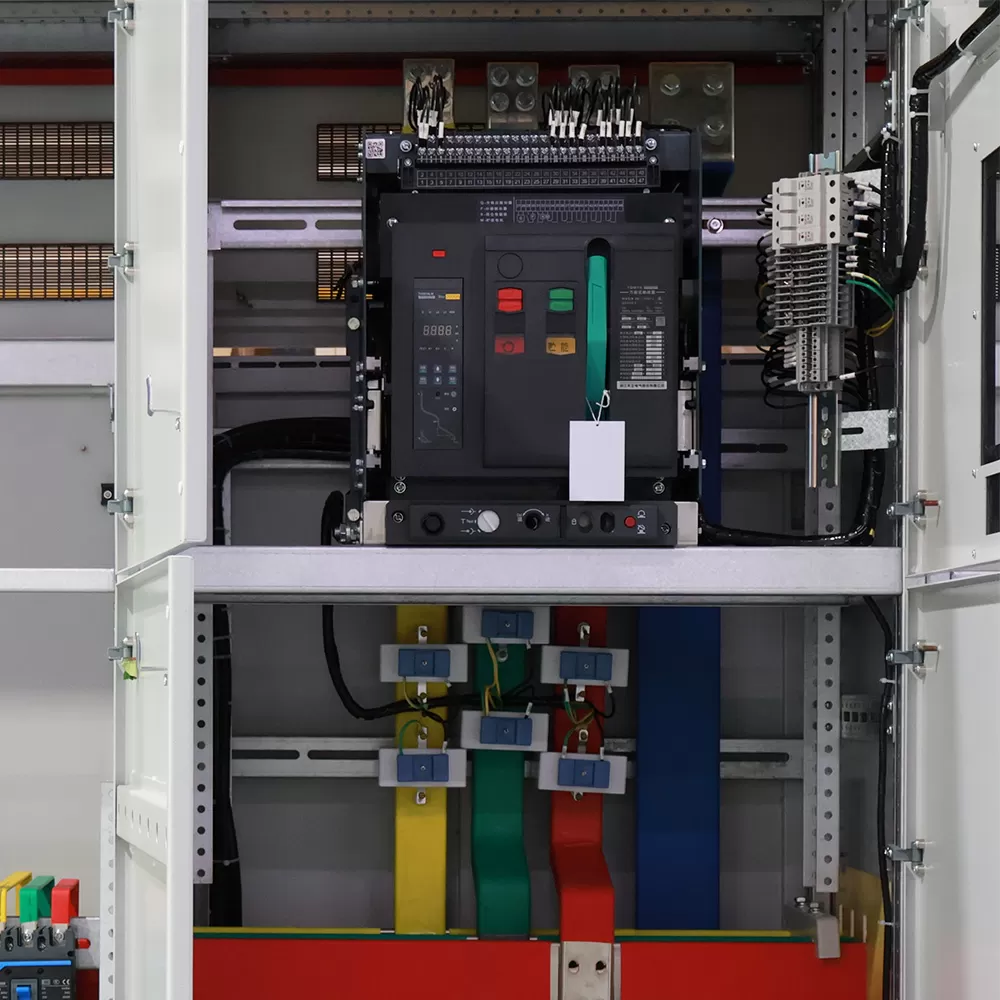

● Maintenance Clearance: Draw-out circuit breakers require significant front space for removal cradles.

● Cable Termination Access: Rear-connected cabinets require at least one meter of rear clearance for heavy cabling.

● Sizing Calculations: Proper low voltage distribution panel sizingprevents overheating and allows future expansion.

Compliance and Certifications (IEC/UL/CE)

International projects must adhere to strict manufacturing and safety standards to pass site inspections.

● IEC Standards: Specifying IEC 61439 compliant switchgear guarantees verified temperature limits and short-circuit strength.

● Internal Segregation: Form 4b separation uses metal barriers to keep busbars, breakers, and cable terminals isolated.

● Third-Party Testing: Always request Type Test Certificates from accredited laboratories like ASTA, KEMA, or TÜV.

Customization vs. Standard Configurations

Off-the-shelf catalog panels rarely fulfill complex industrial power distribution requirements. Every facility features a unique single-line diagram (SLD) and specific operational logic.

Procurement managers should partner with manufacturers that deliver tailored engineering.

● Custom Busbar Routing: Aligns precisely with your incoming transformer feed location.

● Component Integration: Houses your preferred brand of breakers, meters, and protective relays.

● SCADA Connectivity: Integrates custom PLCs and communication gateways for remote monitoring.

Industrial clients should exclusively source fully assembled electrical panels. Buying loose parts and empty boxes for site assembly introduces quality defects and voids warranties.

Factory-built custom switchgear solutions undergo complete assembly, wiring, and testing before shipment. This turnkey approach guarantees plug-and-play installation and minimizes site commissioning delays.

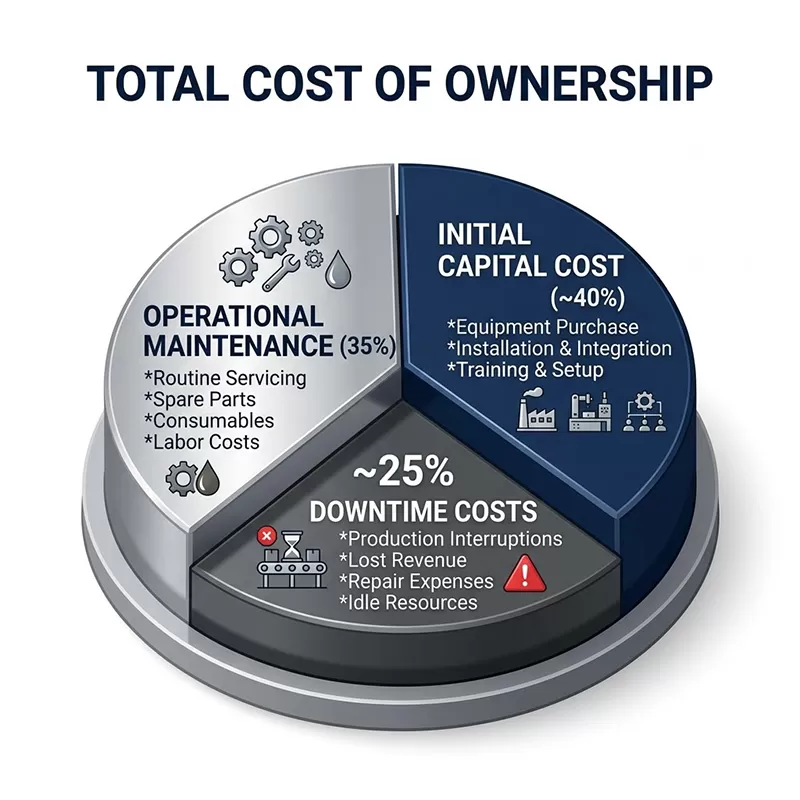

Evaluating the Total Cost of Ownership (TCO)

Selecting equipment based solely on the lowest initial purchase price is a costly mistake. The initial purchase price represents only a small portion of the panel's 25-year lifecycle cost.

Evaluating the switchgear total cost of ownership requires analyzing both operational expenses and downtime risks.

● CAPEX vs. OPEX: High-grade copper busbars reduce internal heat loss and lower continuous power consumption.

● Hot-Swappable Maintenance: Draw-out breakers allow rapid replacement without shutting down the entire plant.

● Downtime Prevention: High short-circuit bracing prevents catastrophic failure during unexpected electrical faults.

Supplier Selection Criteria: Beyond the Product

Evaluating potential manufacturers requires assessing their engineering capabilities and quality control standards.

● Engineering Depth: The supplier must analyze your single-line diagrams and provide full 3D CAD drawings.

● Quality Inspection: Verify that the factory conducts full Factory Acceptance Testing (FAT) prior to dispatch.

● Supply Chain Stability: Experienced factories ensure predictable lead times and reliable spare parts availability.

Vendor Evaluation Checklist for B2B Procurement

FAQ

Q1: What is the benefit of Form 4b separation in industrial switchgear?

Form 4b provides metal barriers between the busbars, functional breaker units, and cable terminals. This prevents internal arc flashes from spreading and allows technicians to work safely in cable compartments while adjacent circuits remain energized.

Q2: How do I calculate the required short-circuit rating for my plant?

The rating is calculated based on transformer capacity, system impedance, and potential fault current contribution from large downstream motors. Your electrical consultant or engineering team performs this via a short-circuit study.

Q3: Why are fully assembled panels preferred over on-site assembly?

Fully assembled panels undergo strict quality control and comprehensive Factory Acceptance Testing (FAT) before shipment. On-site assembly increases labor costs, risks wiring errors, and often compromises international safety certifications.

Q4: How does enclosure IP rating affect thermal performance?

Higher IP ratings (like IP65) seal the cabinet, preventing natural airflow cooling. Manufacturers resolve this by installing internal heat exchangers or sizing the internal copper busbars larger to manage temperature rise naturally.
