ATS Cabinet vs. Generator Synchronization Panel: Which Backup Solution Do You Need?

Introduction

Selecting the wrong emergency power architecture leaves your facility vulnerable to sudden blackouts and unbudgeted capital expenditures. Specifying a basic switch when your plant requires complex paralleling leads to costly system failures and extended downtime.

Understanding the functional boundaries of each system is essential for proper electrical engineering design. This comprehensive comparison guide breaks down the core differences between an automatic transfer switch cabinet and a generator synchronization panel.

What is an Automatic Transfer Switch Cabinet?

An automatic transfer switch cabinet is a dedicated electrical enclosure that automatically shifts a facility's load between the primary utility grid and a single standby generator.

It ensures a seamless transition the moment an electrical grid failure is detected. This equipment serves as the standard safeguard for commercial and light industrial buildings.

○ Monitors incoming utility voltage in real-time to detect outages instantly.

○ Sends an automatic start signal to a single backup diesel generator.

○ Switches the electrical load safely using heavy-duty motorized switches or contactors.

○ Prevents dangerous electrical back-feeding into a dead utility line.

What is a Generator Synchronization Panel?

A generator synchronization panel is an advanced switchboard designed to automatically match, connect, and manage multiple generators running in parallel.

Often referred to as paralleling switchgear, it allows several generators to act as a single, massive unified power source for heavy industrial grids.

○ Synchronizes voltage, frequency, and phase angle of multiple incoming generators.

○ Executes automated dead bus synchronization to bootstrap power plants.

○ Distributes active and reactive loads evenly across all active engines.

○ Automatically starts or stops additional gensets based on real-time plant power demand.

Core Differences Between ATS Cabinets and Synchronization Panels

Understanding how these systems diverge helps engineering contractors match equipment capabilities directly to project demands.

1. Source Capacity and Generator Count

This metric defines how many power sources the system is engineered to manage simultaneously.

● ATS Cabinet: Designed exclusively for one utility source and one single backup generator.

● Generator Synchronization Panel: Engineered to aggregate and manage two or more generators onto a common busbar.

2. Switching Logic and Control Complexity

The internal microprocessors dictate how the system reacts during a transition event.

● ATS Cabinet: Relies on straightforward binary logic to switch between Source A and Source B.

● Generator Synchronization Panel: Utilizes complex closed-loop algorithms to match live sine waves before closing breakers.

3. Load Management and Fuel Efficiency

How the system handles power distribution during varying operational shifts.

● ATS Cabinet: Transfers 100% of the load to a single generator regardless of demand size.

● Generator Synchronization Panel: Dynamically shares loads and sheds running engines during low-demand periods to save fuel.

4. Footprint and Physical Enclosure Size

The physical space required inside the main electrical equipment room.

● ATS Cabinet: Highly compact footprint, requiring minimal wall or floor space.

● Generator Synchronization Panel: Large, multi-cubicle low voltage distribution cabinet layout requiring dedicated floor space.

5. Initial Capital Expenditure (CAPEX) vs. TCO

The initial financial investment required versus long-term operational flexibility.

● ATS Cabinet: Highly cost-effective upfront cost for standard single-generator backup needs.

● Generator Synchronization Panel: Higher initial investment offset by absolute power redundancy and scalability.

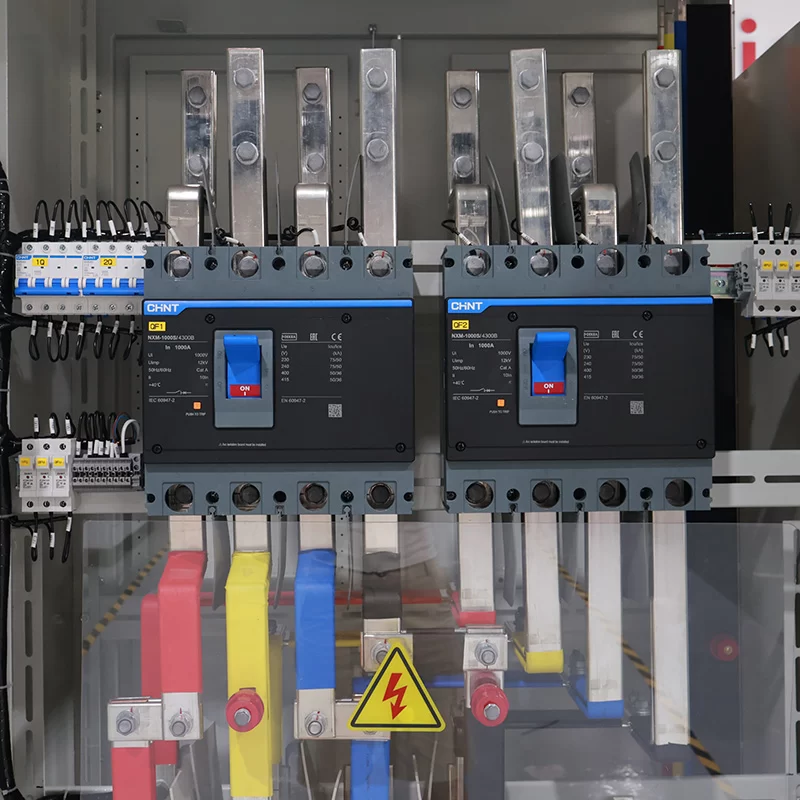

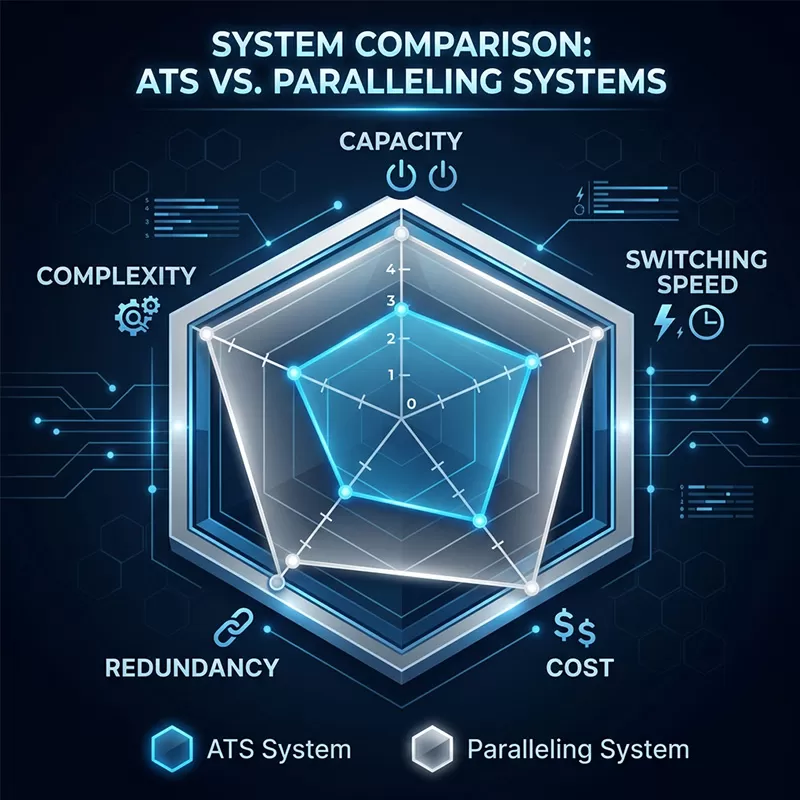

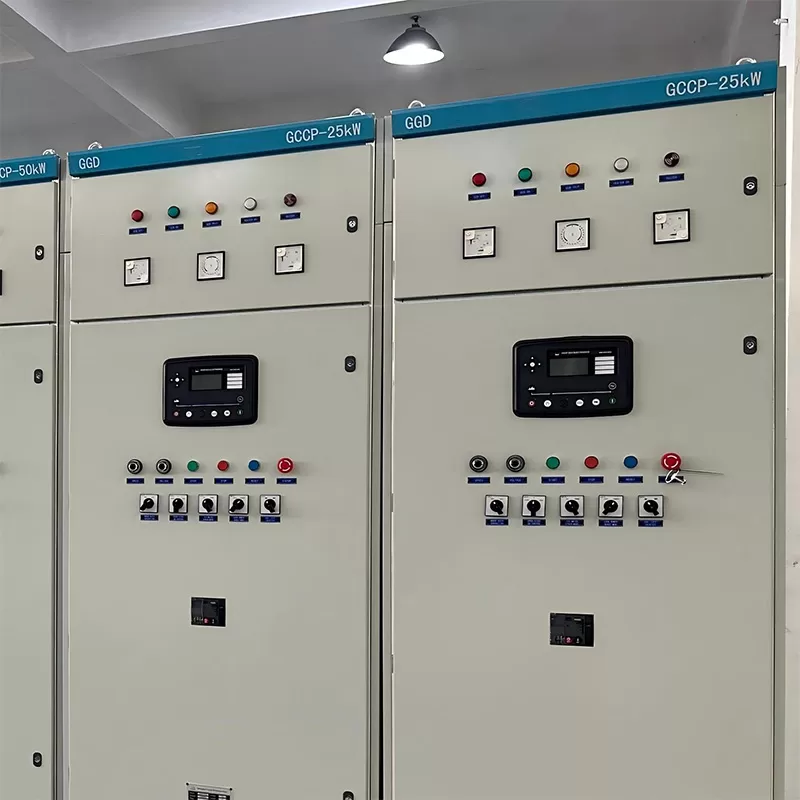

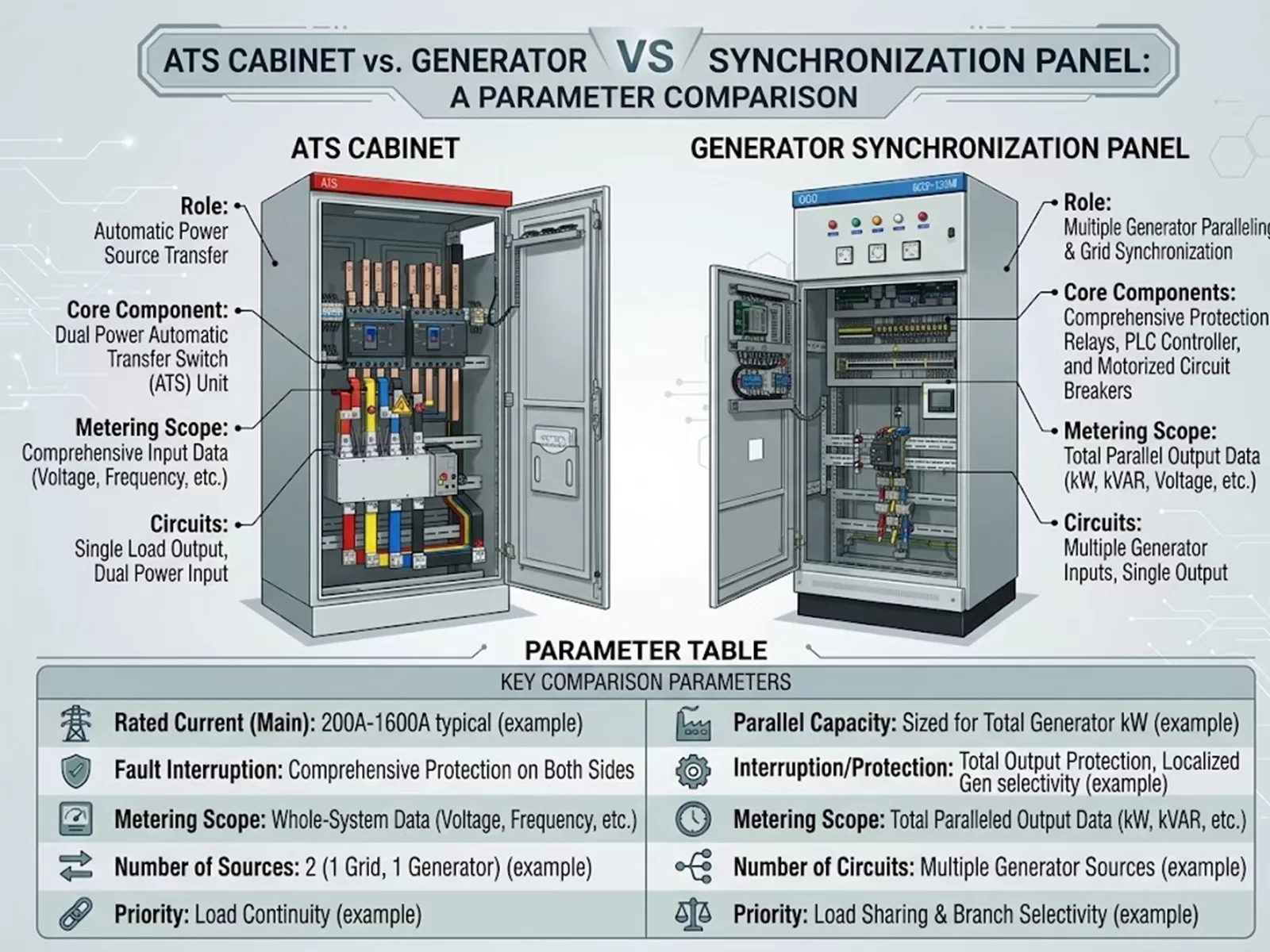

Technical Specification Comparison

The following technical matrix outlines the operational boundaries between both backup solutions.

Technical Capabilities Matrix

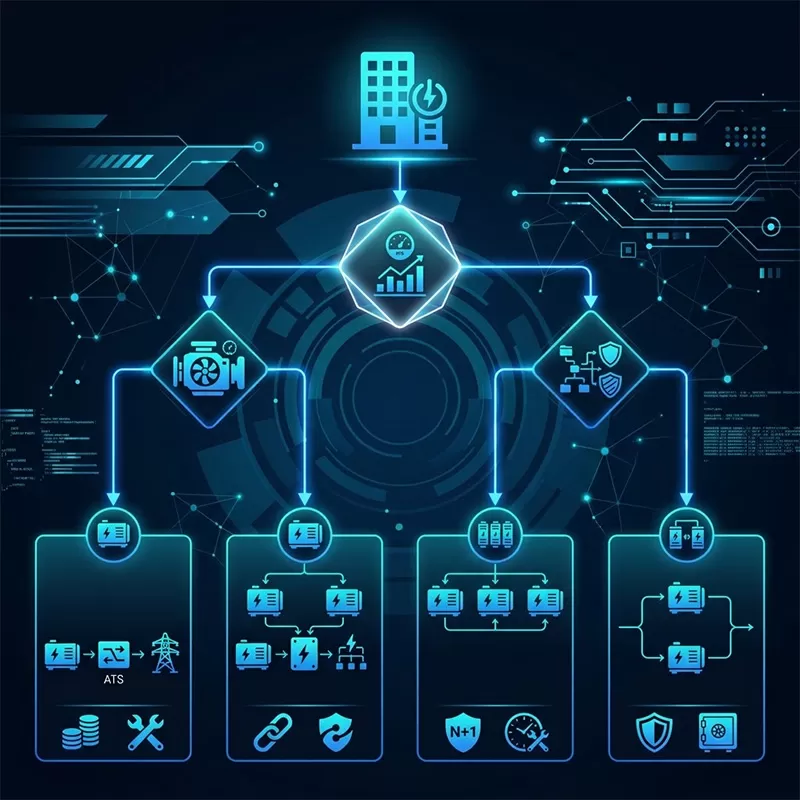

How to Choose the Right Solution?

Selecting the correct architecture depends entirely on your facility's power scale and risk tolerance for outages.

Scenario 1: Mission-Critical Industrial Plants & Data Centers

Facilities requiring 99.999% uptime cannot rely on a single vulnerable generator source.

○ Generator Synchronization Panel: Mandatory to provide N+1 generator redundancy.

○ If one generator fails during an outage, remaining units instantly absorb the load.

○ Eliminates single points of failure in the primary emergency power chain.

Scenario 2: Standard Commercial Buildings & Retail Outlets

Office buildings, retail spaces, and small warehouses have predictable, lower-amperage backup needs.

○ ATS Cabinet: Provides a dependable, cost-effective ATS power cabinet solution.

○ Easily handles emergency lighting, fire pumps, and elevator life-safety loads.

○ Keeps initial MEP project budgets tightly under control.

Scenario 3: The Hybrid Approach for Mega-Projects

Large industrial complexes often combine both systems across their hierarchical distribution network.

○ Use a DG synchronization panel at the primary central powerhouse to aggregate multiple large gensets.

○ Deploy localized automatic transfer switch cabinet units downstream near specific sensitive sub-loads.

Project Application Matrix

Match your specific project profile against this engineering application matrix to finalize your selection.

Project Application Matrix

FAQ

Q: Can a standard ATS cabinet handle multiple generators?

No. A standard ATS is strictly built to switch between a single utility line and one generator source. Attempting to connect multiple un-synchronized generators through an ATS will cause catastrophic equipment damage.

Q: What is the main difference between an ATS and a DG synchronization panel?

 An ATS simply selects and switches between two pre-existing power sources. A synchronization panel actively controls, regulates, and matches the electrical output of multiple generators before tying them together.

Q: Do I still need a low voltage distribution cabinet if I install an ATS?

Yes. The ATS cabinet acts solely as the power-source gatekeeper. The main low voltage distribution cabinet takes that selected power and breaks it down into individual branch circuits for the building.

Q: Is closed-transition switching available in both systems?

Closed-transition (make-before-break) is standard in advanced synchronization panels. While some specialized ATS units offer closed transitions, they require strict utility approval due to brief parallel grid connections.
