Vector VFD Control Panel

Our new High-precision Smart Closed-Loop Vector VFD Control Panel delivers unparalleled operational efficiency across heavy manufacturing environments globally. This advanced architecture optimizes electricity routing dynamically, serving reliably as a high-capacity 3 Phase VFD Control Panel for critical factory systems. Additionally, it integrates perfectly as a specialized pump VFD control panel to eliminate destructive fluid pressure surges, ensuring stable continuous mechanism operations while lowering overall facility infrastructure maintenance overhead completely.

Meet Latest Innovation

Smart Closed-Loop Vector VFD Control Panel Applications & Solutions

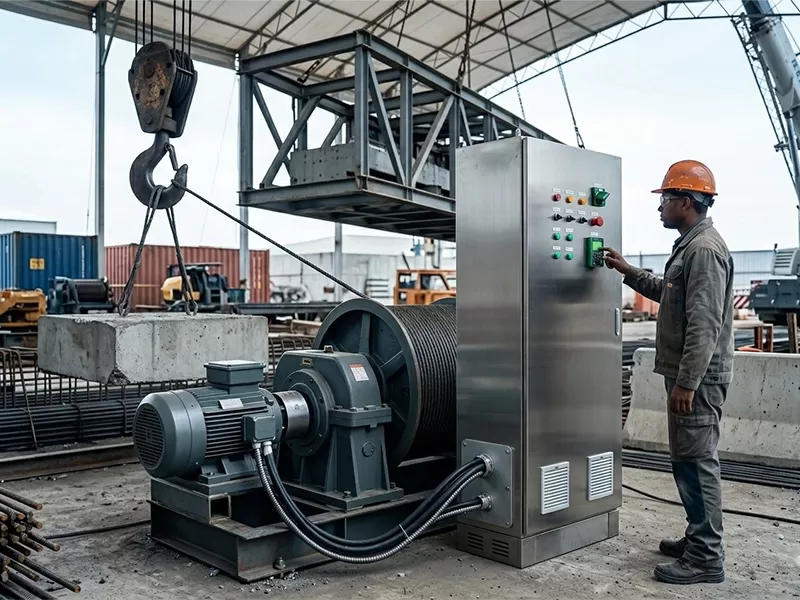

Winch：Managing heavy lifting, the system outputs maximum torque at zero speed via encoder feedback. This reliably prevents load slippage during critical hoisting, ensuring incredibly smooth start-stop mechanical transitions.

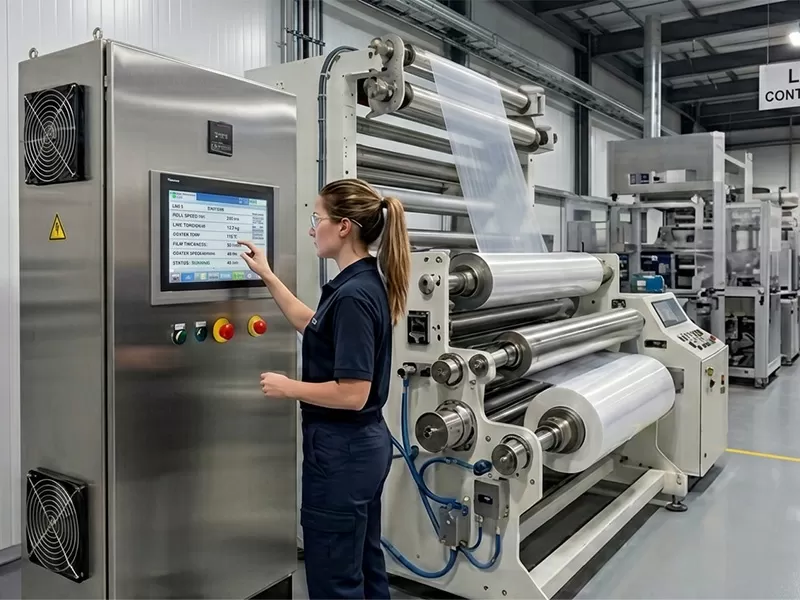

Film Production Line：To maintain constant tension during winding, the panel continuously recalculates roll diameters via sensor feeds. It dynamically auto-matches rotational velocity, completely eliminating film stretching, tearing, or wrinkling.

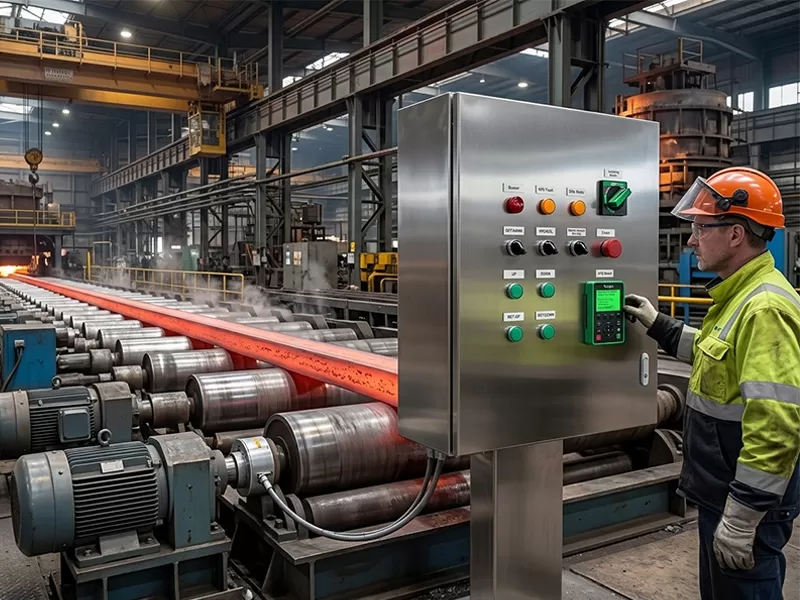

Metallurgical Roller Conveyor：Addressing severe load fluctuations during metal rolling operations, the drive executes real-time speed adjustments continuously. This guarantees highly uniform conveyor velocity, maintaining flawless plate steel structural formation.

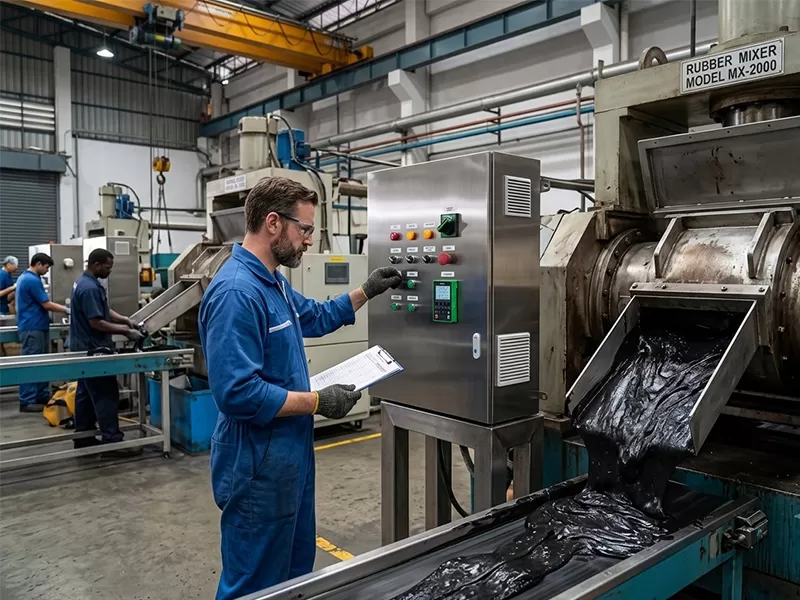

Rubber Mixer：To overcome high material viscosity variations, the loop supplies maximum low-speed rotational torque continuously. It regulates mixing velocity flawlessly, providing stable machine performance throughout intensive raw rubber processing cycles.

Applications Need Smart Closed-Loop Vector VFD Control Panel

Get support from our experts

Custom Options for Smart Closed-Loop Vector VFD Control Panel

Get support from our experts

Why Choose Our Product

Minimizes system power consumption significantly

Delivers exact real-time rotational torque regulation

Prevents dangerous machinery voltage overloads easily

Synchronizes multiple automated assembly conveyor belts

Simplifies complex factory network communication protocols

Resists extreme industrial dust and moisture ingress

Smart Closed-Loop Vector VFD Control Panel Manufacturing Process

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

What is Smart Closed-Loop Vector VFD Control Panel?

As a core automated component, this state-of-the-art Vector control drive panel recalculates encoder feedback data instantly to adjust motor speed. Acting as a flexible Variable frequency drive panel, it modulates incoming alternating current frequency accurately. Furthermore, deploying this rugged Industrial VFD panel enhances mechanical safety protocols throughout heavy industrial processing plants without requiring any constant manual onsite operator calibrations safely.

View Complete Solutions

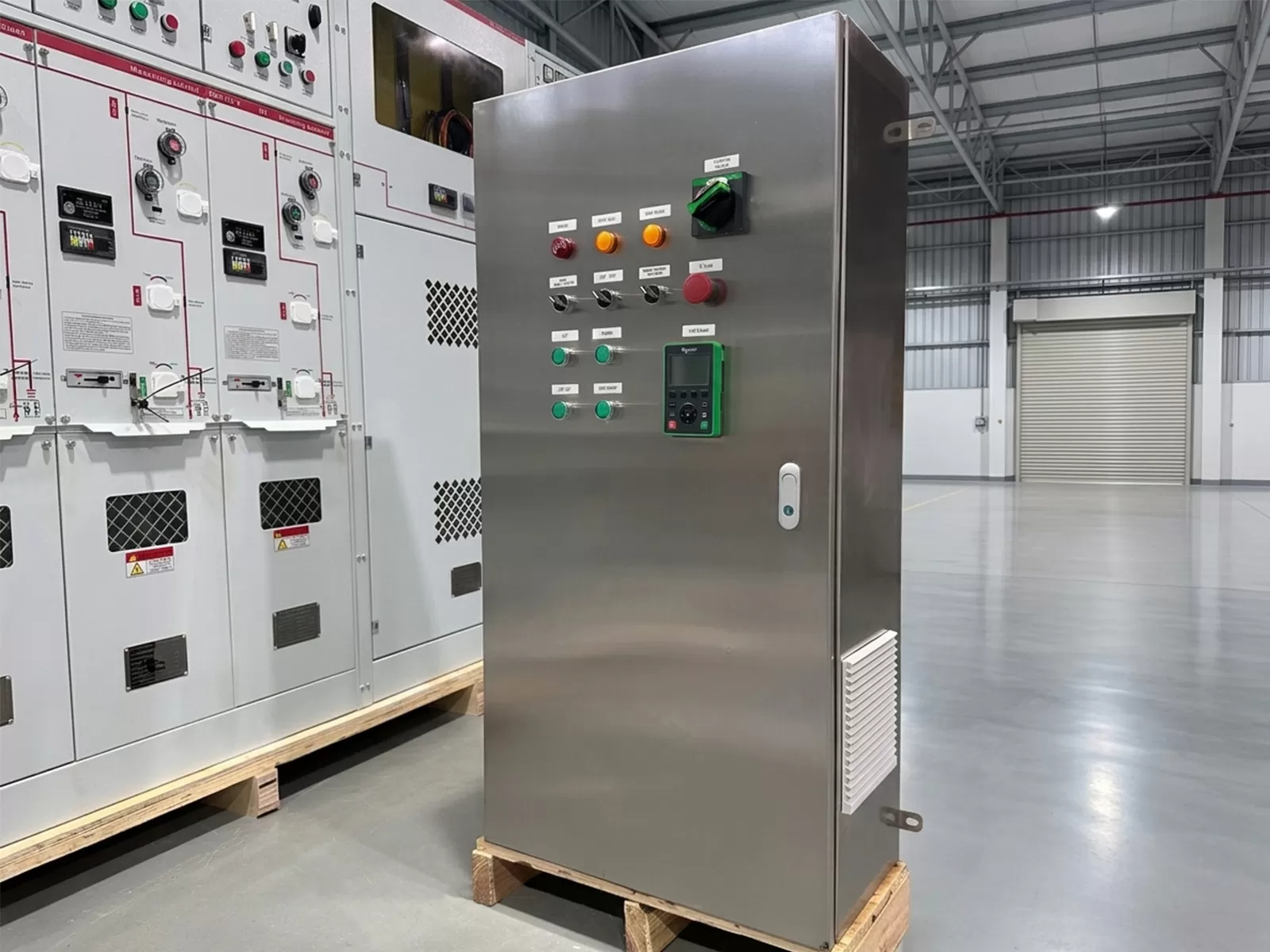

How to choose the Smart Closed-Loop Vector VFD Control Panel?

To optimize workflow, selecting a Customized Smart Closed-Loop Vector VFD Control Panel for Automation Lines ensures exact mechanized synchronization. If managing strict fluid dynamics, choosing a Smart Closed-Loop Vector VFD Control Panel for PID Process Control stabilizes flow rates reliably. Facilities aiming to reduce operating expenses must adopt an Energy-efficient Smart Closed-Loop Vector VFD Control Panel. Finally, high-load lifting requires a specialized Smart Closed-Loop Vector VFD Control Panel for Precision Torque Regulation to prevent material slippage safely during intensive industrial operations.

Technical Specification Matrix: Automation Solutions

System Classification	Operational Control Method / Parameters	Optimal Industrial Application Scope
Heavy-Duty Vector Panel	Closed-loop encoder feedback with real-time vector orientation.	High-capacity hoists, mine winches, and steel rolling mills.
Multi-Phase Automation Panel	3-phase power frequency modulation via advanced IGBT gating.	Continuous automotive assembly lines and multi-stage conveyors.
Process Fluid Control Enclosure	Proportional-integral-derivative (PID) loop sensor monitoring.	Municipal water booster stations and chemical dosing lines.
High-Precision Tension Hub	Dynamic rotational velocity matching with load-cell inputs.	High-speed plastic film manufacturing and paper rewinding plants.
High-Frequency Ventilation Hub	Dual-channel thermal sensing with dynamic CFM exhaust adaptation.	High-heat foundry operations and localized server containment zones.
Multi-Drive Synchronous Bus Cabinet	Shared DC bus architecture distributing centralized load balancing uniformly.	Multi-axis robotic handling cells and multi-stage textile webs.
Low-Harmonic Filter Integrated Panel	Active harmonic mitigation cutting total distortion below 5% thresholds.	Grid-sensitive laboratory environments and high-capacity data centers.
Smart HMI Touch-Screen Unit	Multi-protocol Modbus/Profinet integration with real-time diagnostic output.	Complex decentralized production lines and automated facility networks.

FAQs About Vector VFD Control Panel

Q: What is the main benefit of closed-loop vector control?

A: It provides full rated torque even at zero rotational speed, preventing heavy loads from slipping or dropping safely.

Q: Can these panels handle extreme voltage fluctuations?

A: Yes, the integrated components absorb high-voltage line surges to safeguard sensitive internal processing boards completely.

Q: How does PID control assist pump operations?

A: It continuously adjusts motor frequencies based on sensor pressure feedback, maintaining constant water pressure flawlessly.

Q: What enclosures protect these VFD units?

A: High-grade stainless steel casings shield delicate electronics against moisture, corrosive gases, and factory dust ingress effectively.

Q: Why are encoders necessary for tension regulation?

A: They send micro-second speed corrections to prevent material tearing or wrinkling during high-speed film winding.

Q: Do these drives require external cooling systems?

A: Most panels feature built-in extraction fans and heat sinks to maintain stable operating temperatures easily.
