Skid-mounted Substation

The advanced Skid-mounted Substation delivers an exceptionally robust electrical solution for modern green energy generation projects. As a highly reliable Solar Farm Substation and Wind Farm Substation, it efficiently integrates step-up transformers and switchgear into a unified, transportable framework. Industry professionals trust this durable Renewable Energy Substation to ensure seamless power conversion in harsh environments. This innovative Skid-mounted Transformer Station perfectly maximizes operational efficiency while significantly minimizing complex site construction times worldwide.

Meet Latest Innovation

Solar/Wind Farm Skid-mounted Substation Applications & Solutions

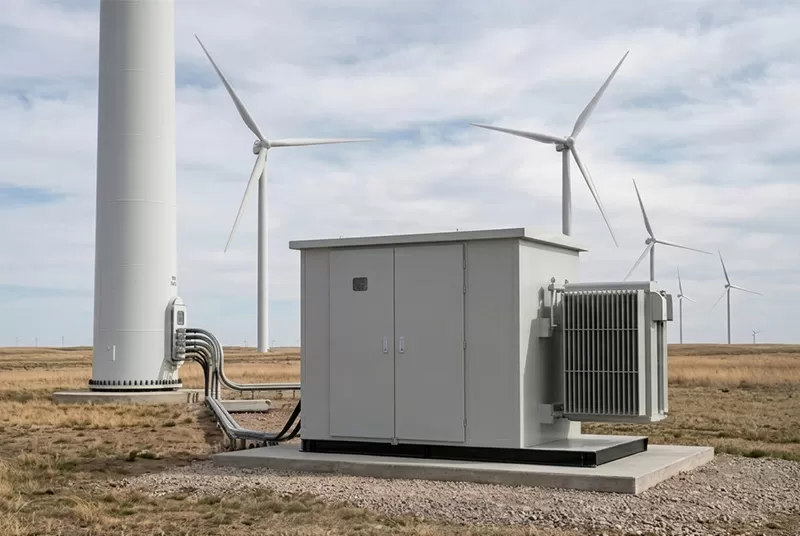

Onshore Wind Field：It handles low-voltage output from individual turbines, safely stepping up power for the grid. Its high-protection design perfectly adapts to harsh field environments, simplifying individual fault troubleshooting efficiently.

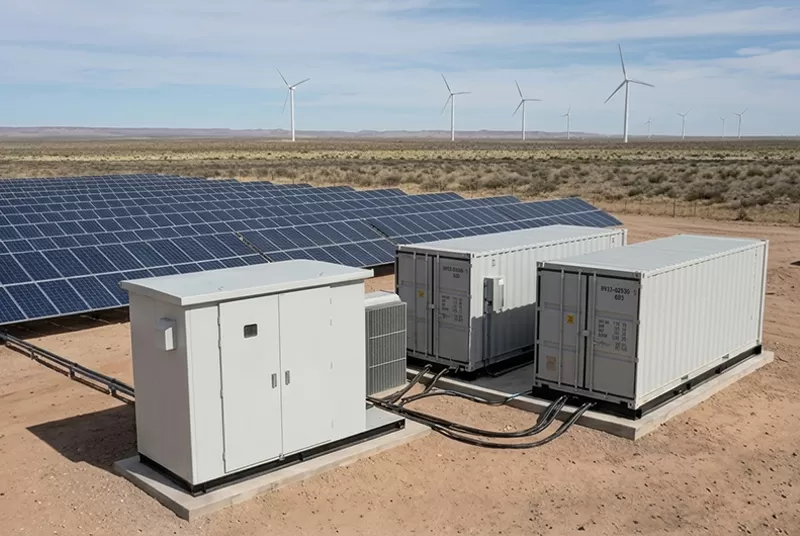

Wind & Solar Storage Station：It excellently supports bidirectional voltage conversion for hybrid renewable operations. This integrated system significantly shortens networking cycles, drastically reducing overall civil engineering and complex field wiring costs.

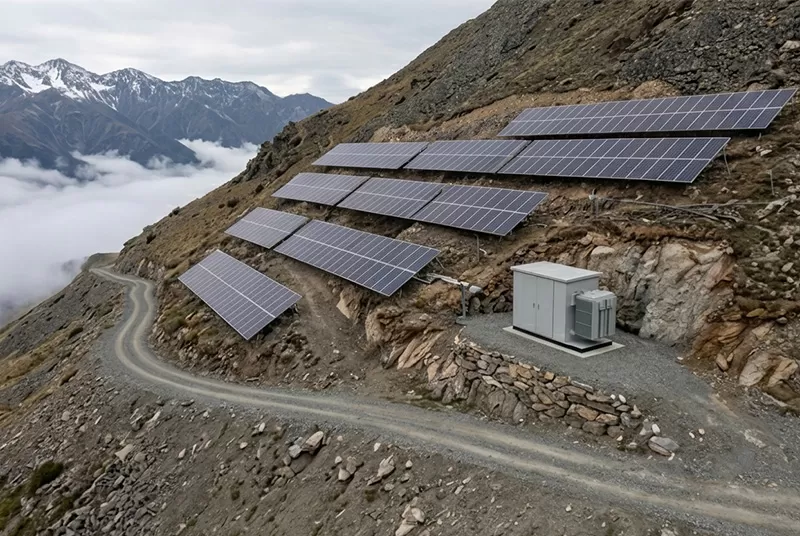

Mountain Power Station：It perfectly adapts to rugged terrains with scattered layouts, massively reducing land leveling expenses. Its robust casing effectively resists severe mountain humidity, massive temperature drops, and lightning strikes securely.

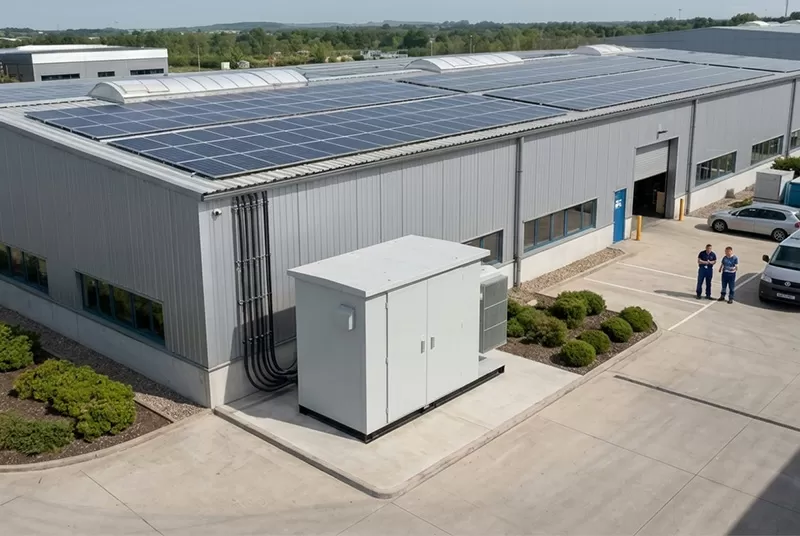

Distributed Photovoltaic：It efficiently steps up distributed solar energy for factory grids while saving space. The pre-assembled structure bypasses complex foundations, enabling incredibly rapid project deployment and fast site acceptance.

Applications Need Solar/Wind Farm Skid-mounted Substation

Get support from our experts

Custom Options for Solar Wind Farm Skid-mounted Substation

Get support from our experts

Why Choose Our Product

Integrated design drastically reduces complex on-site construction times

Robust framework enables extremely secure and rapid transportation

High protection rating ensures excellent outdoor weather resistance

Modular components allow for highly flexible system upgrades

Optimized cooling prevents dangerous transformer overheating continuously

Unified assembly significantly lowers overall project installation costs

Solar Wind Farm Skid-mounted Substation Manufacturing Process

Busbar Insulation & Initial Installation

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

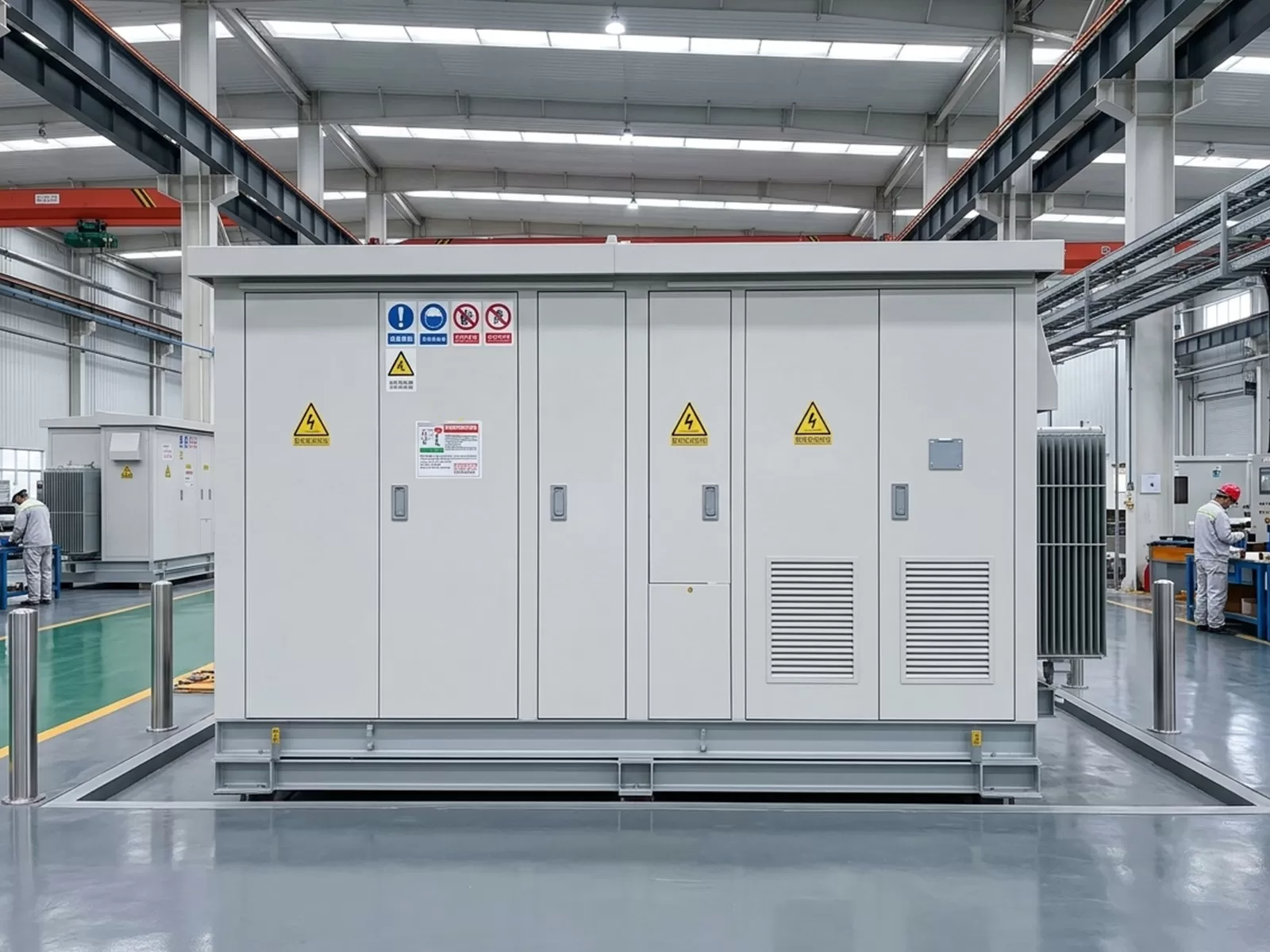

What is Solar/Wind Farm Skid-mounted Substation?

It is a specialized, factory-assembled power distribution unit securely mounted on a rigid steel base. This Weatherproof Skid-mounted Solar/Wind Farm Skid-mounted Substation efficiently combines essential high-voltage equipment, transformers, and low-voltage controls without requiring traditional deep concrete foundations. By utilizing this compact architecture, operators can rapidly deploy highly resilient electrical infrastructure directly into remote renewable energy generation sites safely.

View Complete Solutions

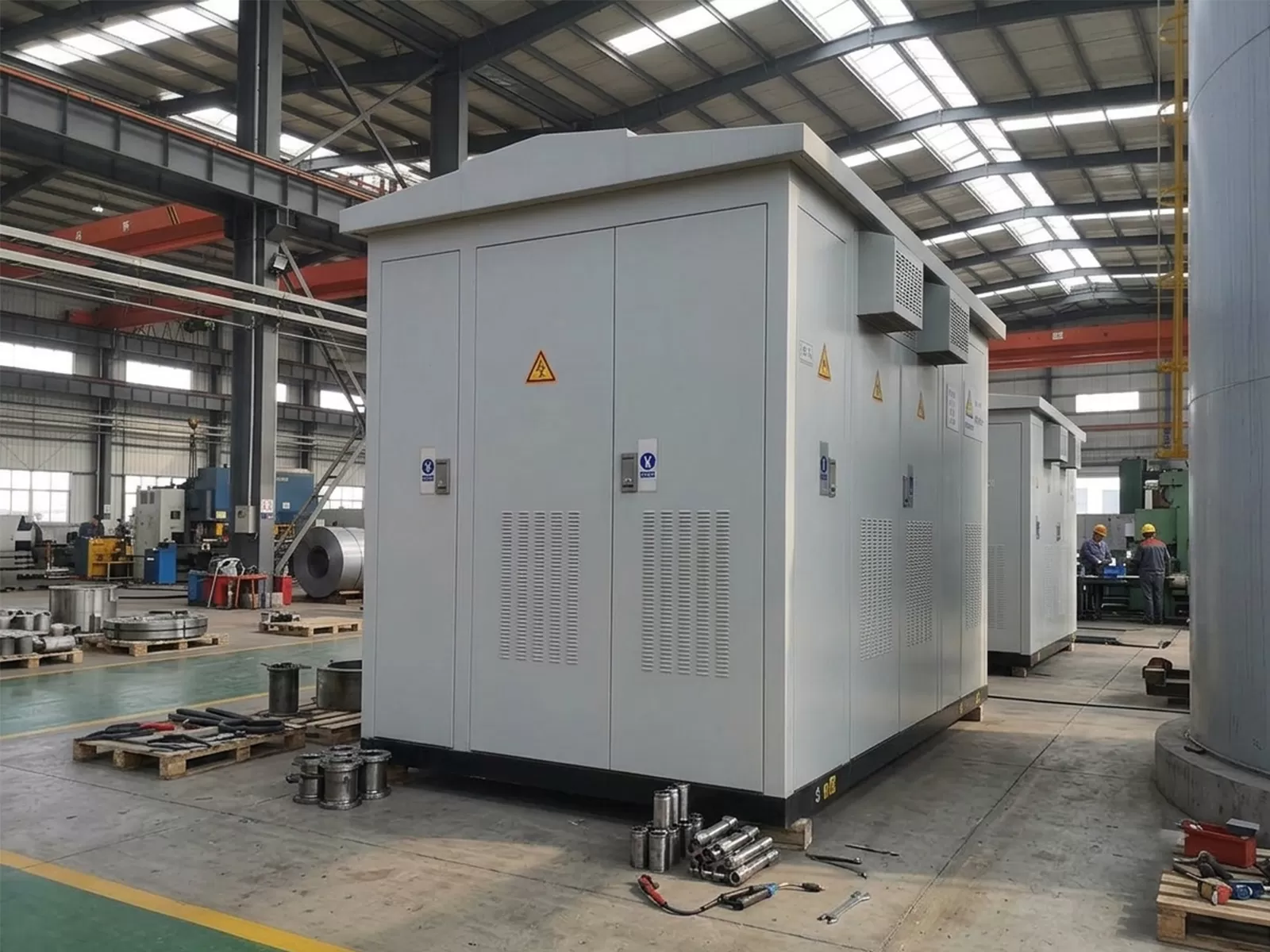

How to Select Solar/Wind Farm Skid-mounted Substation?

Selecting the perfect system requires carefully evaluating your specific environmental conditions and power collection capacity. For vast turbine arrays, deploying a Skid-mounted Solar/Wind Farm Skid-mounted Substation for Wind Energy Step-up safely handles massive generation loads. When building expandable grid networks, a Modular Skid-mounted Solar/Wind Farm Skid-mounted Substation provides excellent scalability. Finally, utilizing a Skid-mounted Solar/Wind Farm Skid-mounted Substation for PV Power Collection guarantees maximum energy transfer efficiency, ensuring your customized setup completely matches demanding local environmental and electrical operational requirements.

Technical Parameters & Comparisons

Specification / Feature	Traditional Built-in-Place Substation	Skid-mounted Substation
Foundation Requirement	Deep, complex concrete foundations	Simple flat surface or minor support
Equipment Mobility	Fixed permanently, impossible to relocate	Highly portable via standard flatbed trucks
Site Installation Time	Several weeks to months	Extremely fast, plug-and-play rapid setup
Target Application	General utility and urban power grids	Dedicated renewable energy and remote sites
System Assembly	Assembled piece-by-piece on the field	Fully factory-assembled and pre-tested internally
Environmental Resilience	Standard weatherproofing for mild climates	Enhanced anti-corrosion for severe outdoor environments
Space Utilization	Requires expansive, permanently cleared land	Highly compact, requiring a minimal footprint

FAQs About Skid-mounted Substation

Q: What environments suit this equipment?

A: Its high-protection casing perfectly withstands harsh environments, including humid mountains, dusty deserts, and coastal wind farms.

Q: Is a deep concrete foundation required?

A: No, the rigid steel skid base only requires a leveled surface or minimal support, saving civil engineering costs.

Q: How is the equipment transported?

A: The complete factory-assembled unit is easily lifted and transported directly to remote sites using standard heavy-duty flatbed trucks.

Q: Can it handle extreme outdoor temperatures?

A: Yes, it features optimized natural ventilation and environmental controls to prevent overheating or freezing in severe climates.

Q: Is maintenance difficult in remote areas?

A: No, the modular layout allows technicians quick, safe access to isolated components for extremely efficient field repairs.

Q: Can it integrate with energy storage?

A: Absolutely, it effortlessly supports bidirectional power flow, making it ideal for modern hybrid wind, solar, and battery storage stations.
