MV Air Insulated Metering Cabinet

The premier MV Metering Switchgear represents a state-of-the-art primary solution for modern medium-voltage electricity networks requiring absolute operational precision. Operating seamlessly as a specialized Medium Voltage Service Entrance Cabinet, this advanced equipment streamlines heavy utility power intake while providing critical fault containment. It ensures excellent environmental protection and long-term structural longevity, making it the ideal choice for safely managing high-capacity commercial and industrial power distribution systems globally.

Meet Latest Innovation

MV Air Insulated Metering & Service Entrance Cabinet Applications & Solutions

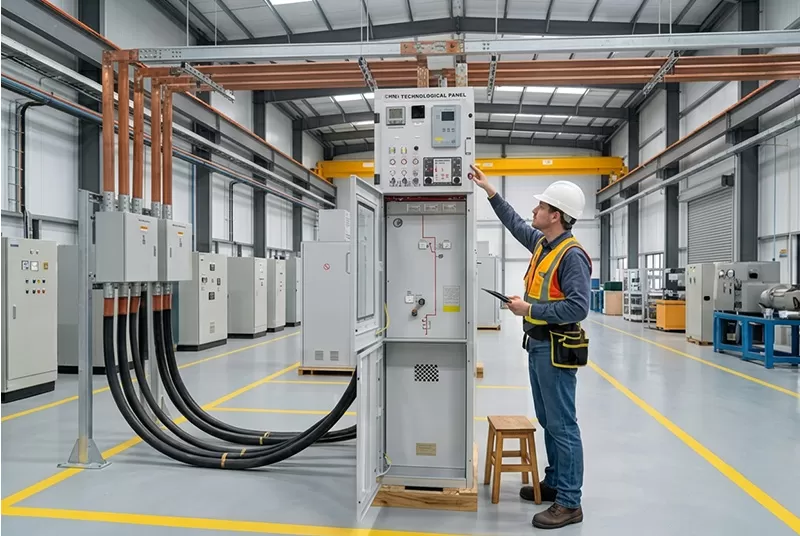

Industrial Park：Serving as the main utility boundary node, this system handles 10kV power intake and trade metering while managing full factory power distribution and downline transformer safety.

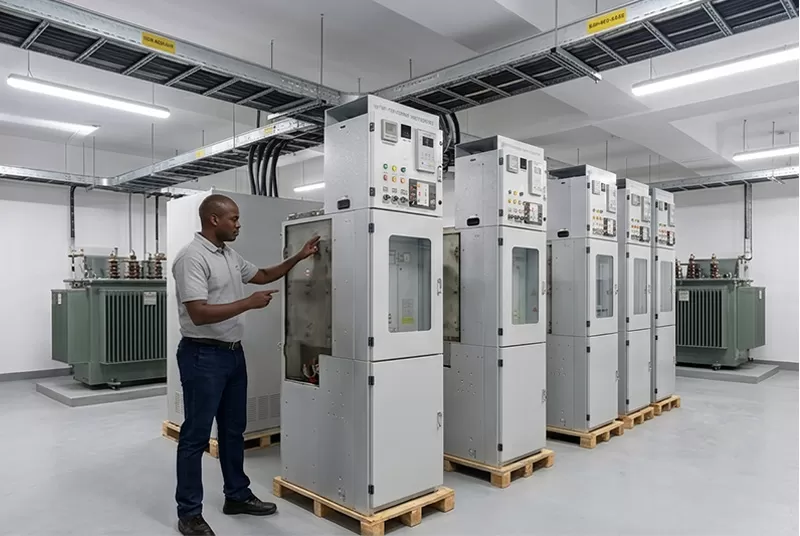

Commercial Complex：This configuration accepts incoming municipal power to track total building energy consumption for billing, serving as the essential starting node for all downstream commercial substation transformers.

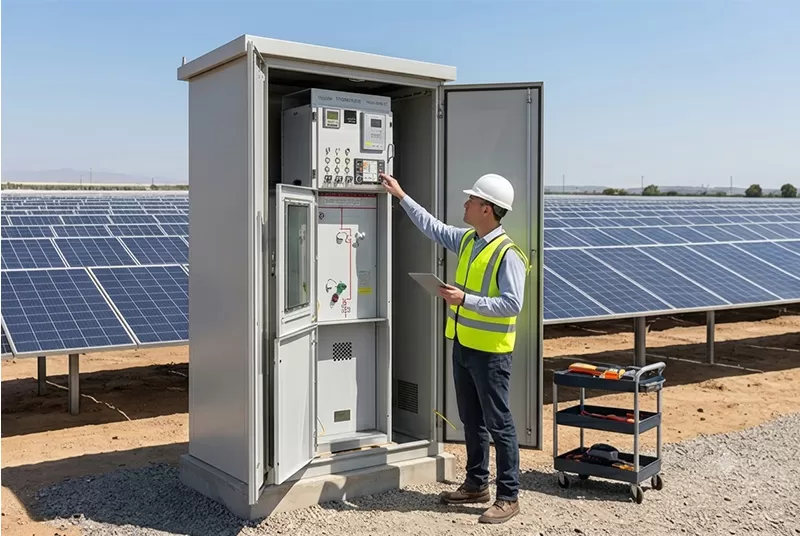

Photovoltaic Power Station：Deploying the MV Air Insulated Metering & Service Entrance Cabinet for High Voltage Connection measures solar energy fed into grids, providing crucial overcurrent and short-circuit protection.

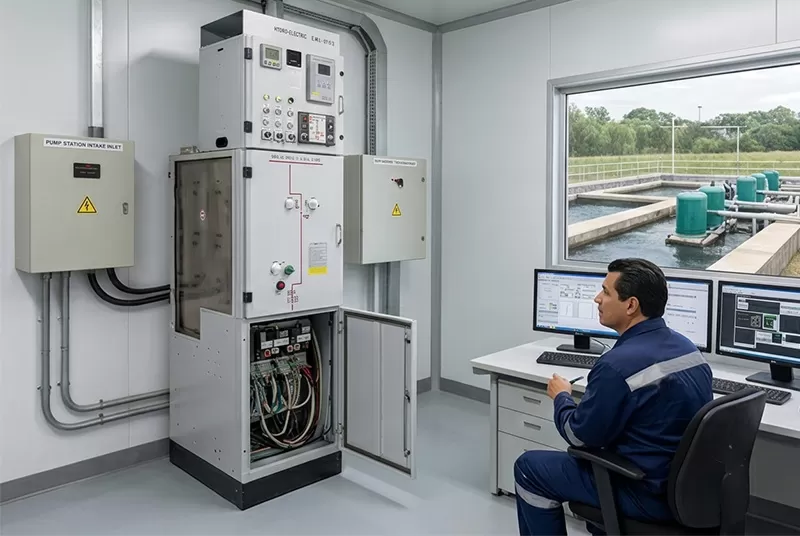

Sewage Pumping Station：This system manages outdoor 10kV grid electricity and tracks total treatment plant power usage, supplying secure energy distribution and incoming circuit protection for heavy pump machinery.

Applications Need MV Air Insulated Metering & Service Entrance Cabinet

Get support from our experts

Custom Options for MV Air Insulated Metering & Service Entrance Cabinet

Get support from our experts

Why Choose Our Product

Integrates high-precision current and potential instrument transformers seamlessly

Features a robust air-insulated design minimizing maintenance overhead

Secure metallic partitions guarantee maximum safety for substation operators

Compact footprint drastically reduces electrical control room floor space

Strict multi-point mechanical interlocks prevent dangerous manual operational errors

Heavy-duty galvanized steel enclosure offers superior long-term corrosion resistance

MV Air Insulated Metering & Service Entrance Cabinet Manufacturing Process

Busbar Insulation & Initial Installation

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

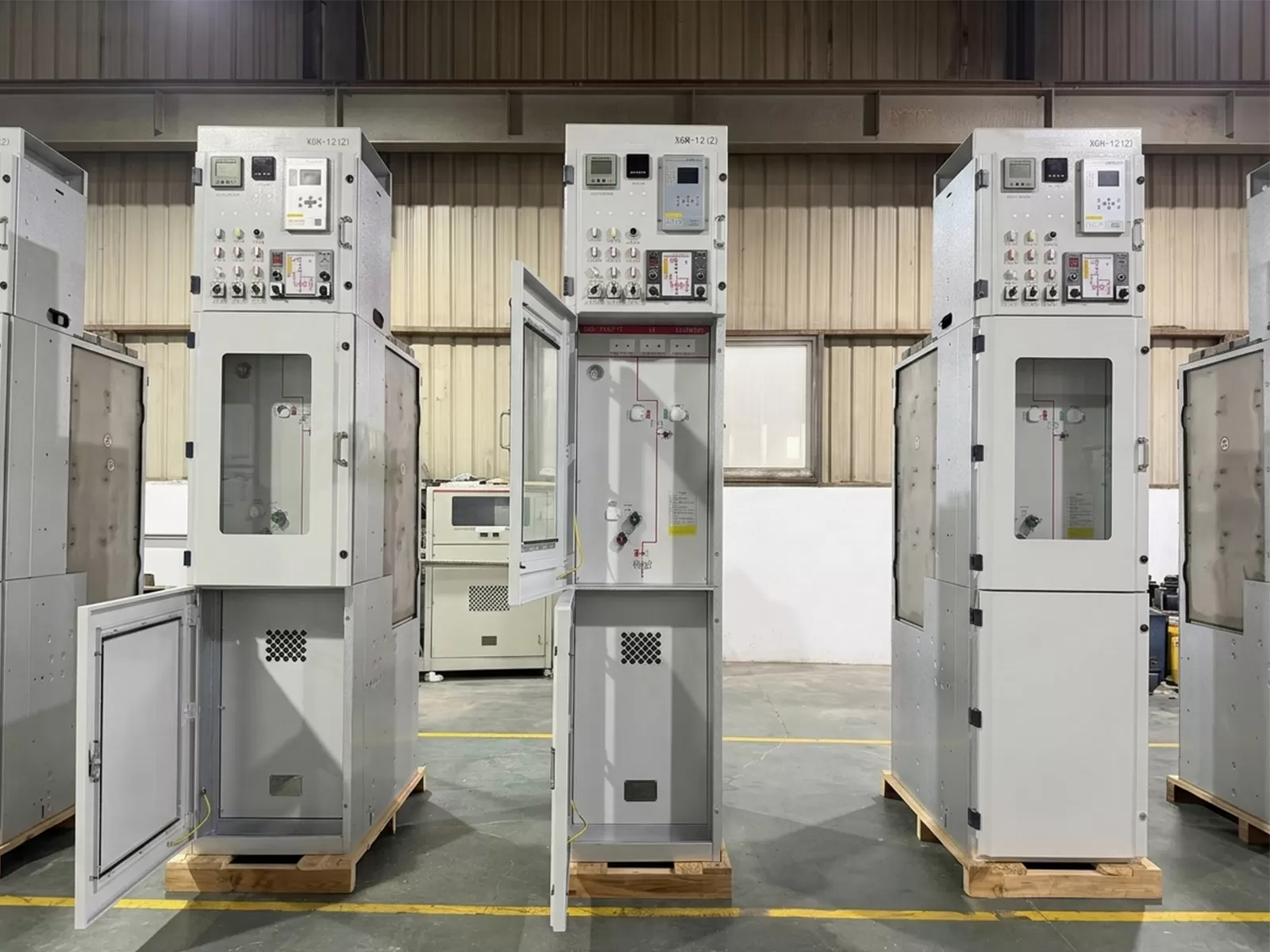

What is MV Air Insulated Metering & Service Entrance Cabinet?

This specialized Air Insulated Metering Panel functions as a secure central gateway for primary utility power. Serving as a reliable High Voltage Metering Cabinet, it integrates precision instruments to measure electricity consumption accurately. Combined with a dedicated MV Incomer Cabinet, the entire assembly safeguards downline transformers and distribution circuits against massive short-circuit currents while establishing a clean connection to the main grid.

View Complete Solutions

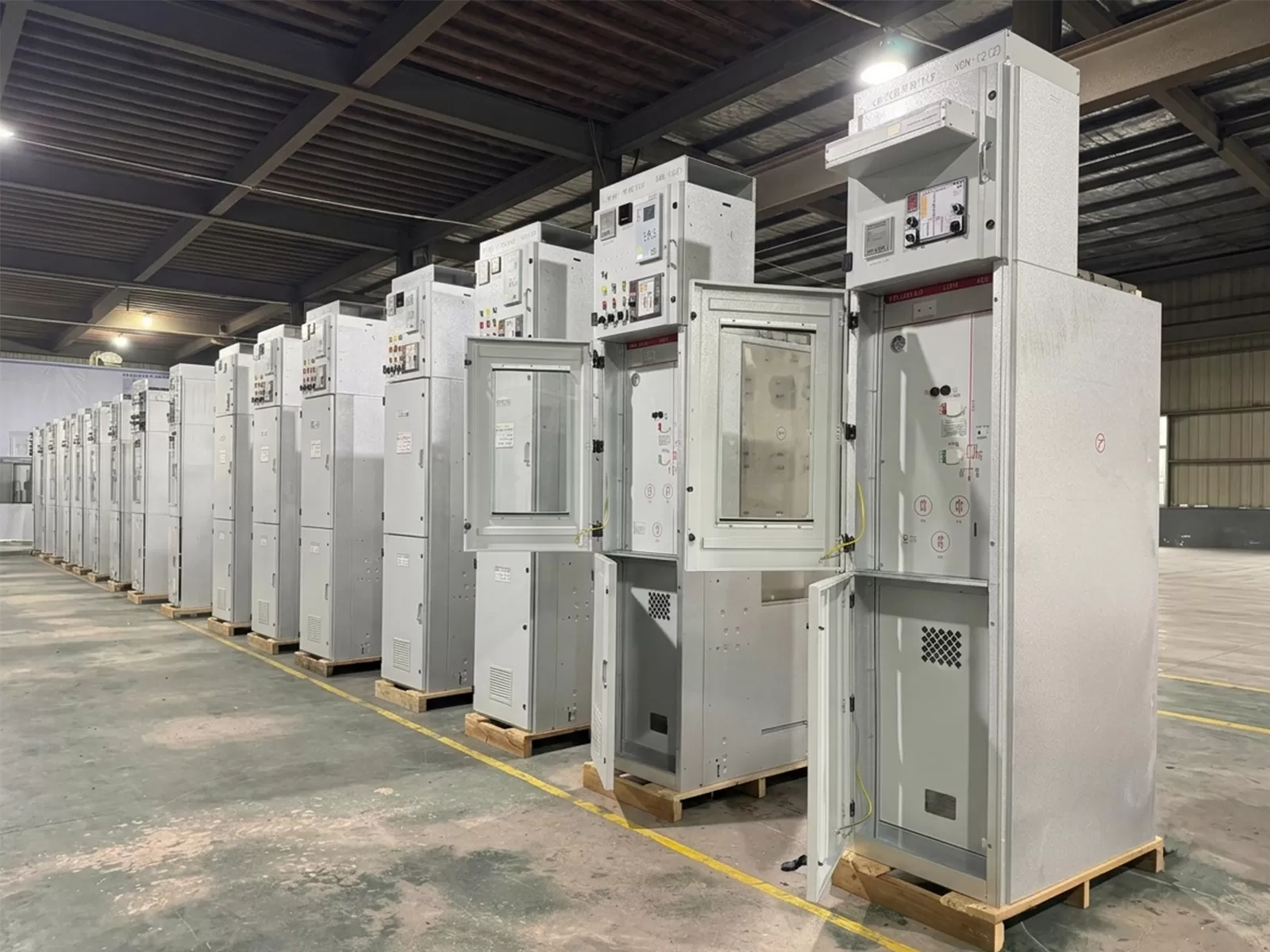

How to Select MV Air Insulated Metering & Service Entrance Cabinet?

Selecting the optimal system requires carefully evaluating your localized grid connection rules and maximum expected load profiles. For facilities demanding absolute measurement fidelity, selecting a High-Precision MV Air Insulated Metering & Service Entrance Cabinet is essential to prevent costly revenue billing discrepancies. Additionally, ensure the system incorporates a Metal-Enclosed MV Air Insulated Metering & Service Entrance Cabinet configuration to guarantee superb physical enclosure protection against harsh environmental dust and moisture. Always confirm total compliance with regional engineering code requirements and global utility distribution standards before finalizing your order.

Key Technical Parameters & Protection Scope

Cabinet Component / Specification	Core Functionality	System Protection Scope
Current Transformers (CT)	Steps down primary high currents to standardized measurable signals.	Overcurrent monitoring and highly accurate billing data logging.
Voltage Transformers (PT)	Steps down medium line voltage for safe instrument reading.	Voltage surge tracking and precision system metering.
Disconnector Switch	Creates a visible physical break in the circuit.	Safe isolated entry during maintenance operations.
Digital Energy Meter	Tracks active and reactive power usage in real-time.	Commercial billing verification and utility telemetry logging.
Surge Arresters	Diverts transient high-voltage lighting impulses safely to ground.	Overvoltage protection for sensitive internal metering electronics.
Enclosure Protection	Heavy IP4X steel shell blocks debris entry.	Environmental shielding for continuous outdoor/indoor reliability.
Anti-Misoperation Interlocks	Mechanically locks access doors during active execution states.	Operator physical safety and prevention of accidental contact.

FAQs About MV Air Insulated Metering Cabinet

Q: What is the main purpose of this equipment?

A: It operates safely as an integrated MV Air Insulated Metering & Service Entrance Cabinet for Grid Power Metering to record commercial energy trade.

Q: Can it withstand severe outdoor industrial environments?

A: Yes, the Heavy-Duty MV Air Insulated Metering & Service Entrance Cabinet option features reinforced weatherproofing for ultimate longevity.

Q: Does it include automated circuit protection features?

A: Yes, it incorporates advanced vacuum circuit breakers and digital relays to instantly isolate heavy overcurrent faults.

Q: What insulation material is utilized inside?

A: It utilizes clean, eco-friendly air insulation combined with highly insulated busbar sleeves to maximize overall operational safety.

Q: Is it compatible with international smart grids?

A: Absolutely, the digital meters support RS485 and Modbus protocols for seamless remote monitoring and automated data transmission.

Q: How does it ensure operator maintenance safety?

A: It employs strict five-prevention mechanical interlocking mechanisms to completely block unauthorized access during high-voltage operations.
