Fixed Type High Voltage Switchboard

The Fixed Type High Voltage Switchboard delivers exceptional performance for demanding medium-voltage distribution systems. Engineered as a highly dependable High Voltage Fixed Switchgear, it guarantees long-term stability in continuous electrical operations. This advanced HV Fixed Distribution Board provides excellent fault isolation, safeguarding critical industrial machinery. By choosing this solution, facilities achieve uninterrupted performance, making it an indispensable asset for maximizing overall plant efficiency and electrical network infrastructure reliability.

Meet Latest Innovation

Fixed Type High Voltage Switchboard Applications & Solutions

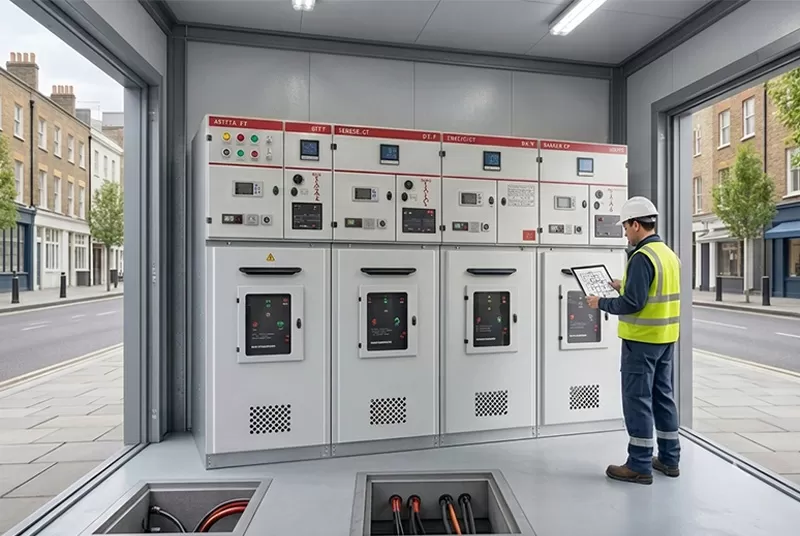

Municipal Environmental Network：It enables urban 10kV power grid line sectionalization. When a downstream fault occurs, it rapidly isolates the broken segment, ensuring continuous, stable power delivery to neighboring residential areas.

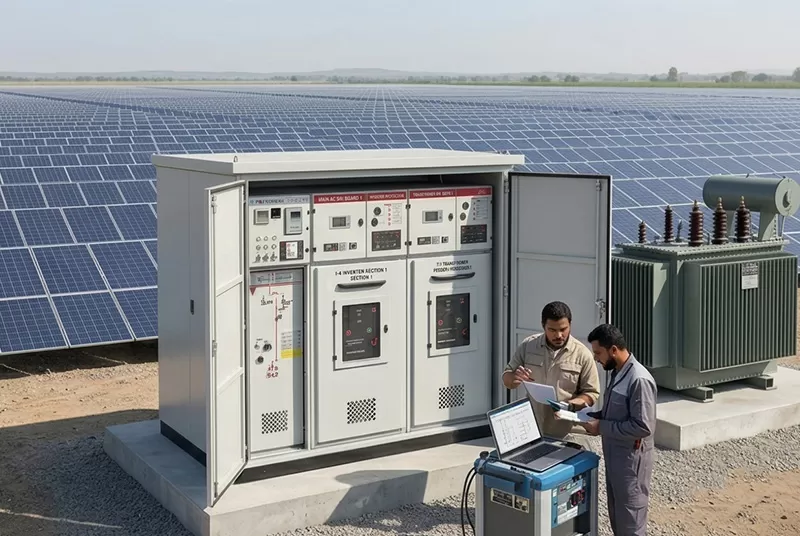

New Energy Power Station：This switchboard aggregates massive solar and wind power. It channels generated electricity into booster transformers for grid connection while providing essential overload protection for inversion circuits.

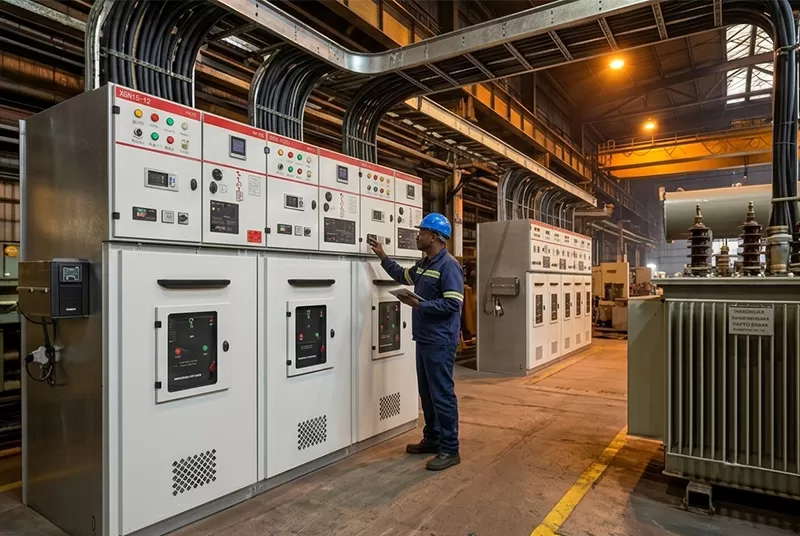

Factory Power Distribution：Serving as the main plant power hub, it distributes medium-voltage electricity to heavy motors and workshop transformers, delivering automated circuit breaking during high-current fault events.

Commercial Complex：It coordinates heavy electrical demands from central HVAC systems, elevators, and public lighting. Precision branch management significantly reduces risks of widespread, disruptive commercial blackouts.

Applications Need Fixed Type High Voltage Switchboard

Get support from our experts

Custom Options for Fixed Type High Voltage Switchboard

Get support from our experts

Why Choose Our Product

Heavy-duty metallic frame ensures superior structural integrity

Maintenance-free fixed architecture reduces long-term operational costs

Comprehensive mechanical safety interlocks prevent dangerous operational human errors

Optimized indoor design saves valuable electrical substation floor space

Highly efficient thermal dissipation channels manage heat during peak loads

Fully customizable configurations easily match specific industrial power project requirements

Fixed Type High Voltage Switchboard Manufacturing Process

Busbar Insulation & Initial Installation

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

What is Fixed Type High Voltage Switchboard?

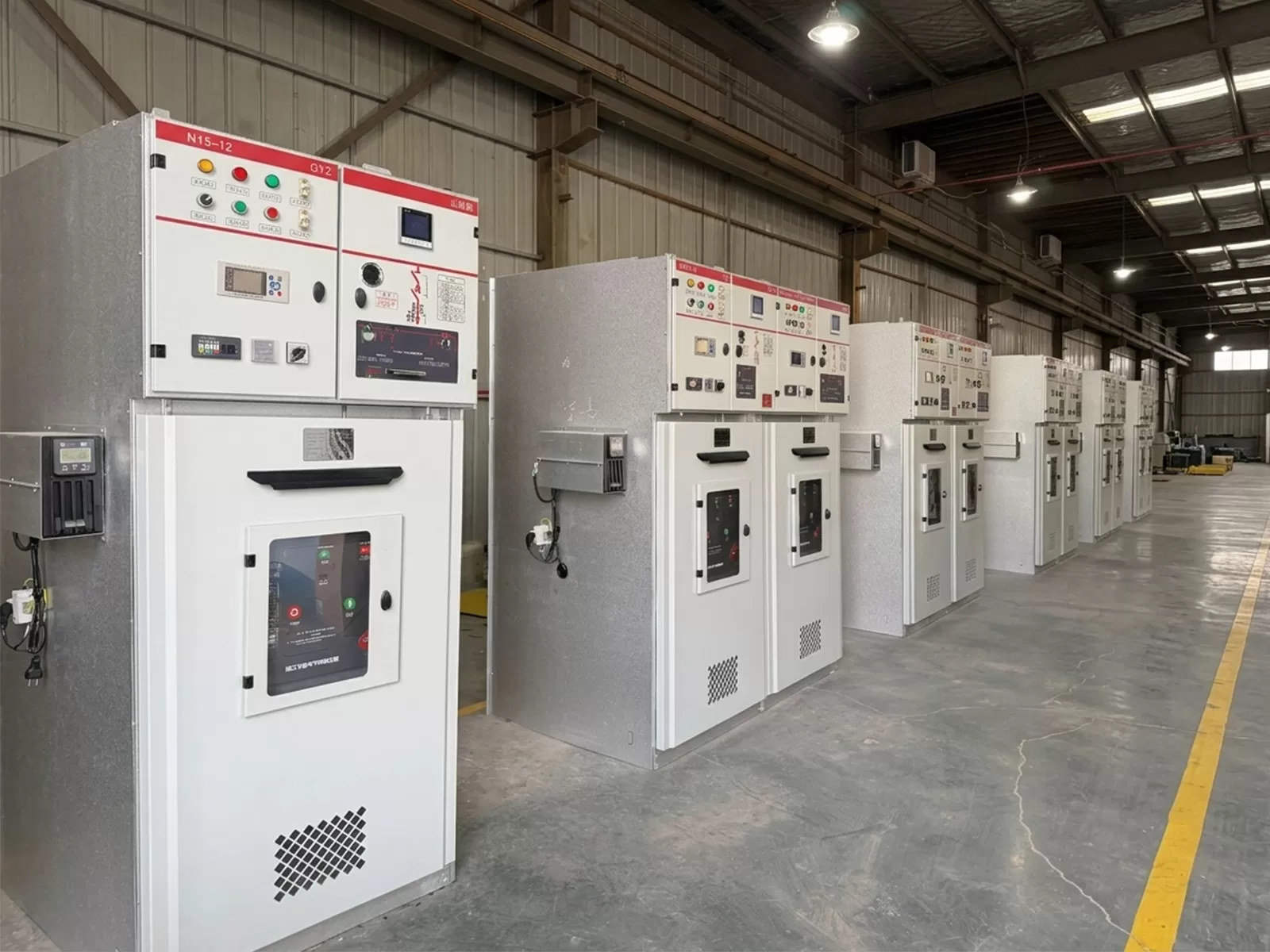

This specialized Fixed Type Metal-Clad Switchgear serves as a secure containment system for electrical components. As a robust High Voltage Power Switchboard , it arranges circuit breakers, main busbars, and protection relays into distinct, isolated compartments. This structure prevents internal arc propagation. Consequently, the Robust Fixed Type High Voltage Switchboard effectively shields nearby operators while maintaining maximum structural stability during unexpected high-current electrical fault conditions.

View Complete Solutions

How to Select Fixed Type High Voltage Switchboard?

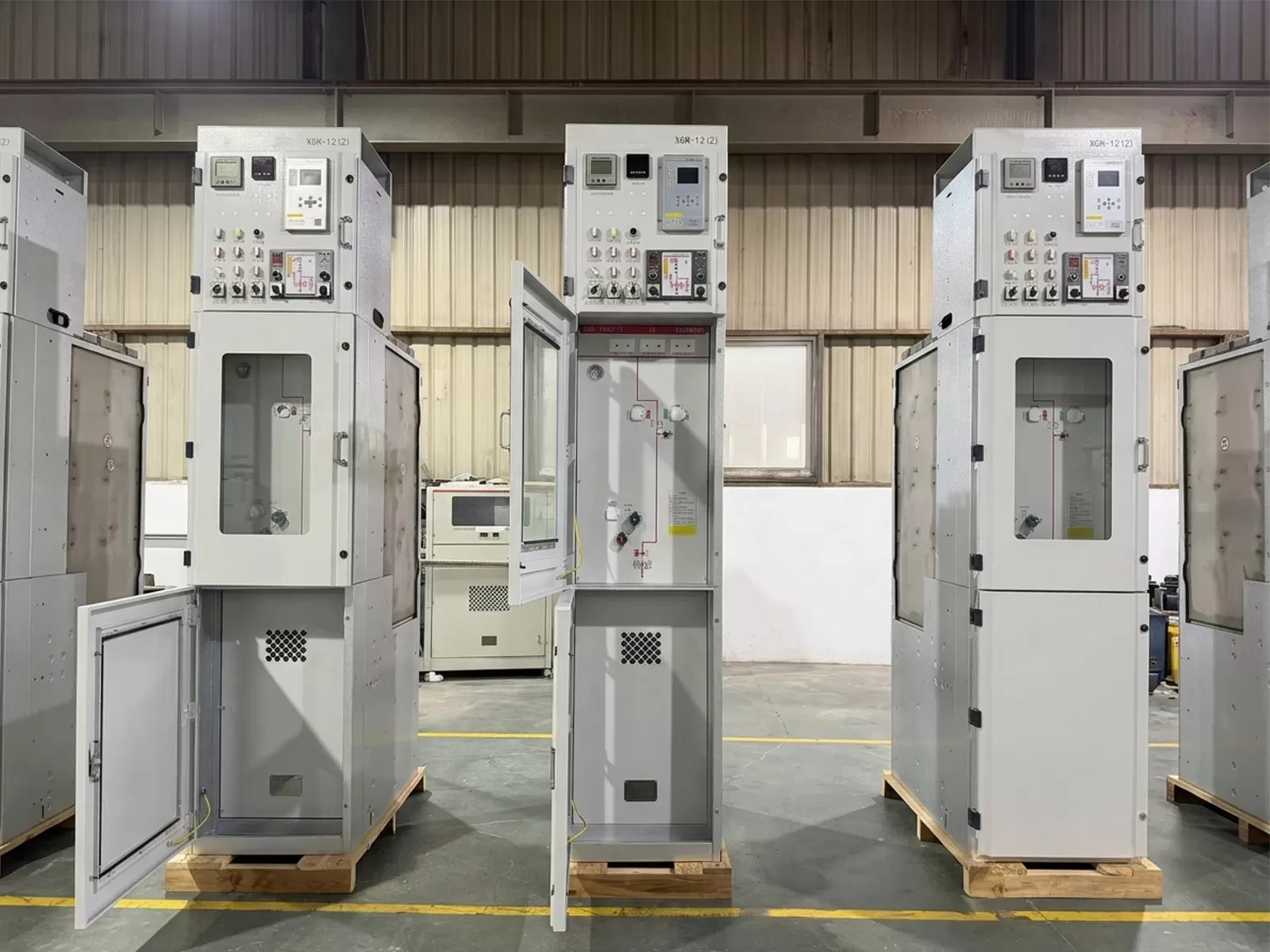

Selecting the ideal unit requires analyzing your grid architecture and specific short-circuit current ratings. When assessing heavy industrial environments, choosing a Metal-Enclosed Fixed Type High Voltage Switchboard ensures maximum protection against harsh environmental contaminants. For general transmission infrastructure, installing a Fixed Type High Voltage Switchboard for Power Distribution optimizes electrical network efficiency. Additionally, systems requiring strict compliance must utilize a Standardized Fixed Type High Voltage Switchboard . Finally, verify full relay compatibility with a specialized Fixed Type High Voltage Switchboard for Grid Protection to ensure seamless, automated fault response across your entire grid.

Key Technical Parameters & Operational Value

Technical Parameter	Specification Value	Operational Significance
Rated Voltage	12kV / 24kV	Supports standard medium-voltage distribution grids reliably.
Rated Current	Up to 1250A	Handles high-power industrial machinery loads effortlessly.
Short-Time Withstand Current	25kA / 4s	Withstands severe thermal stress during short circuits safely.
Peak Withstand Current	63kA	Resists massive mechanical forces during peak electrical faults.
Protection Degree	IP4X	Prevents solid foreign objects and dust from entering compartments.
Insulation Medium	Air Insulation	Offers an eco-friendly design with minimal maintenance needs.
Enclosure Material	Al-Zn Coated Steel	Provides superior corrosion resistance and long structural lifespan.
Interlocking Method	Five-Prevention Mechanical	Ensures strict operational safety sequences for personnel protection.

FAQs About Fixed Type High Voltage Switchboard

Q: What is the primary benefit of a fixed type switchboard?

A: It features fixed internal components, providing high structural reliability and minimizing mechanical wear from moving parts over time.

Q: Can this equipment be installed outdoors?

A: No, it is strictly designed for secure installation inside climate-controlled electrical rooms or industrial substations.

Q: What safety interlocks does it include?

A: It integrates standard "five-prevention" mechanical interlocks to completely prevent accidental contact and hazardous misoperation.

Q: Is the enclosure protected against corrosion?

A: Yes, the heavy-duty enclosure uses premium aluminum-zinc coated steel sheets to ensure long-lasting rust and corrosion protection.

Q: Does it require frequent maintenance?

A: No, the fixed components and air insulation dramatically lower routine inspection and component replacement requirements.

Q: Can it integrate with smart grid systems?

A: Yes, it easily connects with advanced digital protection relays and PLCs for real-time remote monitoring.
