Fixed Compartment Switchgear

The Modular Fixed Compartmentalized Switchgear for Industrial Power is a vital LV switchgear designed to ensure safe and continuous electrical supply across diverse facilities. Operating primarily as a robust main distribution board, this advanced Industrial electrical cabinet organizes internal components into isolated sections. This structural design prevents fault propagation, making it an essential substation distribution cabinet that guarantees maximum personnel safety and seamless operational stability for high-demand modern infrastructure projects.

Meet Latest Innovation

Fixed Compartmentalized Switchgear Applications & Solutions

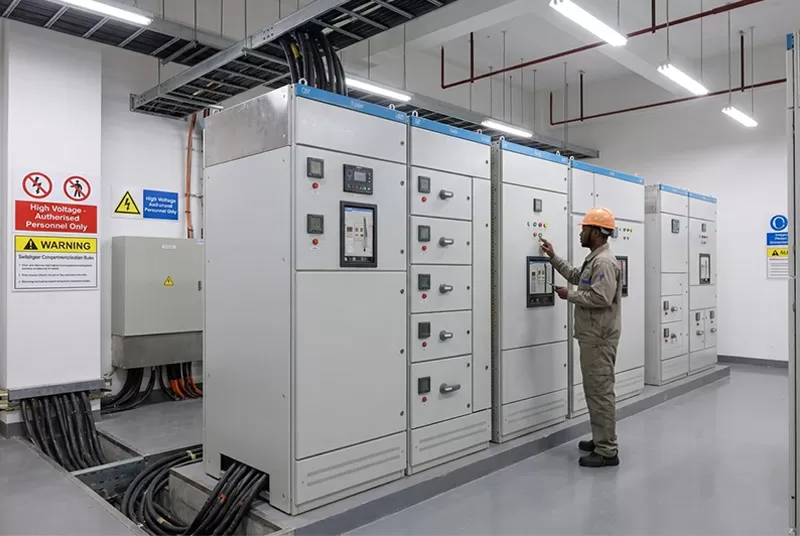

Factory Distribution Room：Serving as the main distribution board, it manages high-power loads, prevents short-circuit impacts, and guarantees continuous operation across industrial manufacturing production lines.

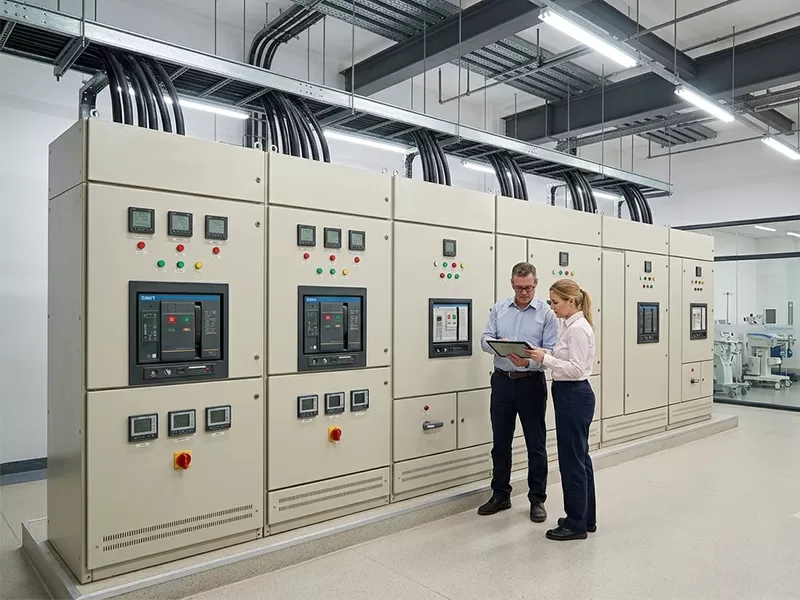

Hospital Power Distribution System：It handles critical dual-source grid feeds and UPS inputs. Independent compartments prevent localized faults from disrupting essential power to emergency rooms and surgical theaters.

Commercial Complex：This reliable LV switchgear safely centralizes power for HVAC and lighting systems, separating circuits to significantly reduce arc flash hazards in crowded retail environments.

Municipal infrastructure pumping station：Controlling heavy drainage pumps, the enclosed structure provides resilient defense against moisture, lowering equipment breakdown risks in critical water treatment and sewage facilities.

Applications Need Fixed Compartmentalized Switchgear

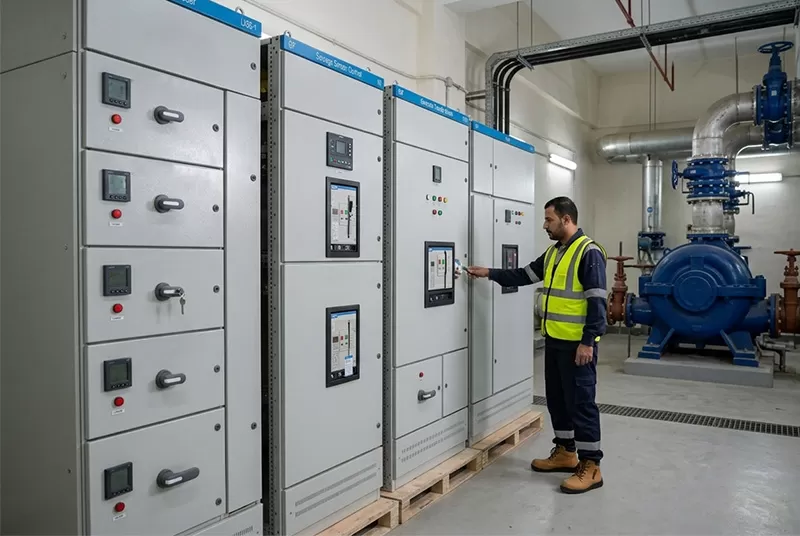

Water & Environmental Protection Project

Get support from our experts

Custom Options for Fixed Compartmentalized Switchgear

Get support from our experts

Why Choose Our Product

Exceptional fault isolation enhances overall system safety

Rigid structure withstands severe short-circuit impacts effortlessly

Separated compartments prevent arc flash propagation perfectly

High-capacity busbars handle large electrical loads reliably

Streamlined maintenance layout minimizes facility downtime drastically

Adaptable configurations suit various industrial site requirements

Fixed Compartmentalized Switchgear Manufacturing Process

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

What is Fixed Compartmentalized Switchgear?

A Fixed Compartmentalized Switchgear is premium electrical switchgear equipment featuring permanently mounted switching devices enclosed within heavily partitioned metallic compartments. Unlike standard open enclosures, this Reliable Fixed Compartmentalized Low Voltage Switchgear segregates busbars, functional units, and cable terminals into distinct zones. This physical separation prevents localized arc faults from affecting adjacent circuits, thereby delivering unmatched operational reliability for critical commercial and heavy manufacturing power grids.

View Complete Solutions

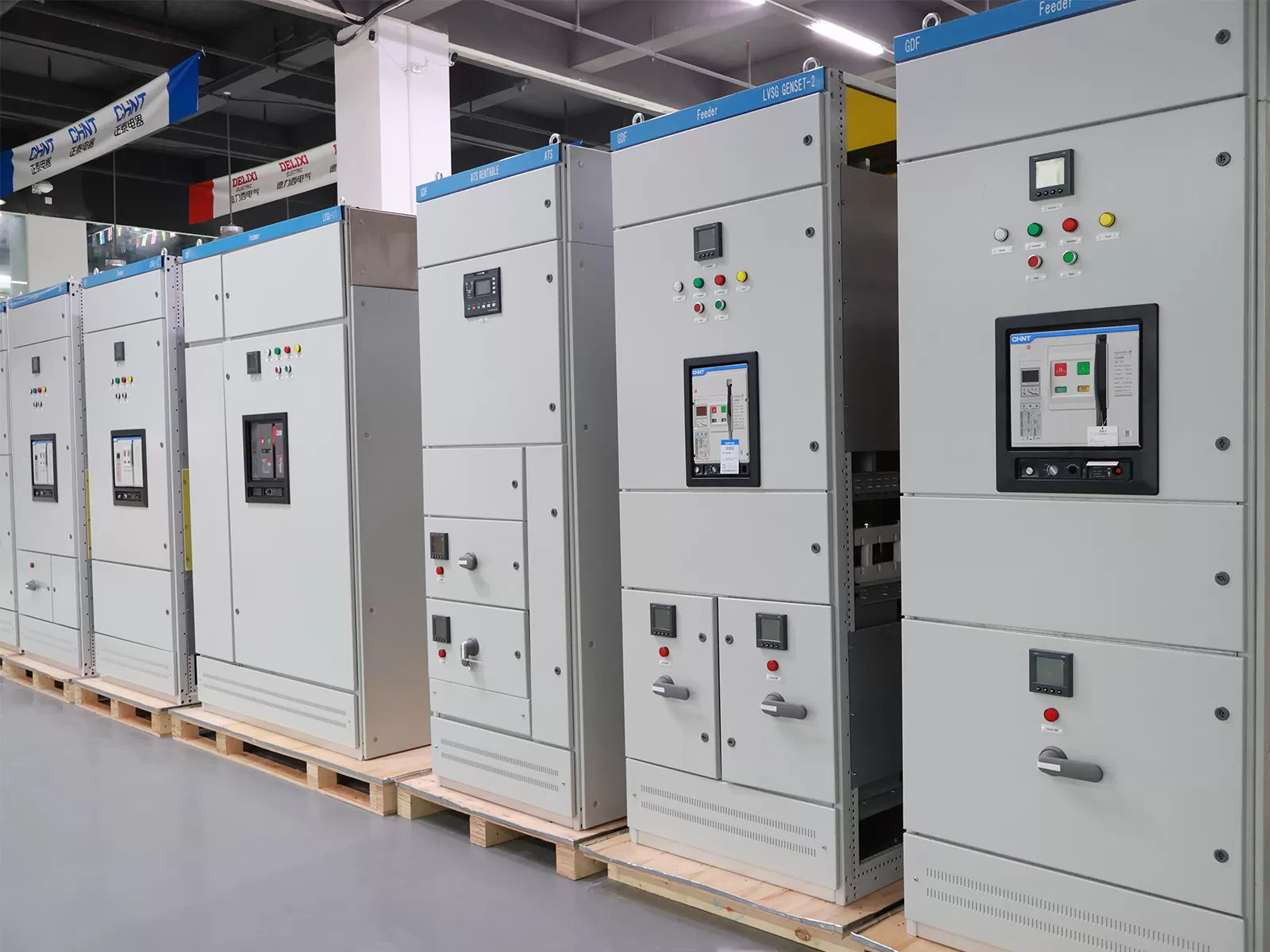

How to Select Fixed Compartmentalized Switchgear?

Selecting the ideal 3 phase Fixed Compartmentalized Switchgear involves thoroughly analyzing your specific facility load requirements and calculating anticipated short-circuit current levels. You must verify that the chosen Fixed Compartmentalized Switchgear for substations matches your primary transformer rating while maintaining adequate expansion margins. Additionally, evaluate the internal partition forms to ensure they provide necessary arc containment capabilities. Finally, verify that the selected configuration adheres strictly to international safety standards, prioritizing durable construction materials and reliable breaker components to guarantee long-term operational resilience within your specialized environment.

Product Comparison: Fixed vs. Draw-out Switchgear

Feature / Aspect	Fixed Compartmentalized Switchgear	Standard Draw-out Switchgear
Internal Isolation	High (distinct separated zones)	Very High (fully modular)
Fault Protection	Excellent arc fault containment	Superior (removable live units)
Cost Efficiency	Highly economical for heavy loads	Premium cost investment
Typical Use Cases	Factory mains, commercial buildings	Motor control centers (MCC)
Maintenance Style	Fixed in-place servicing	Quick swap replacement

FAQs About Fixed Compartment Switchgear

Q: What is its primary function?

A: It safely distributes low voltage power while physically isolating internal components to prevent destructive cross-faults.

Q: Can it handle high short-circuit currents?

A: Yes, its rigid metal framing is engineered to withstand extreme electrodynamic forces during heavy short-circuit faults.

Q: Is it suitable for outdoor environments?

A: Standard units are for indoor use. Outdoor applications require specialized weatherproof enclosures to prevent moisture ingress.

Q: How does it differ from draw-out types?

A: Internal breakers are permanently fixed in isolated compartments rather than mounted on removable sliding chassis units.

Q: What maintenance is typically required?

A: Routine thermal scanning, tightening of terminal connections, and periodic cleaning of the isolated compartment interiors.

Q: Does it meet international safety standards?

A: Yes, it is rigorously designed and manufactured to comply with stringent IEC electrical safety regulations globally.
