EV Charging Station Distribution Panel

The EV Charging Station Distribution Board is a vital infrastructure solution designed to distribute power safely across modern electric vehicle charging networks. Engineered as a robust EV Charging Feeder Pillar, it houses precision circuit breakers, metering modules, and surge protection. Featuring an EV Charging Control Panel with Smart Metering, this panel manages dynamic energy loads, protects upstream transformers, and ensures maximum operational uptime for public, commercial, and fleet charging deployments worldwide.

Meet Latest Innovation

EV Charging Station Distribution Panel Applications & Solutions

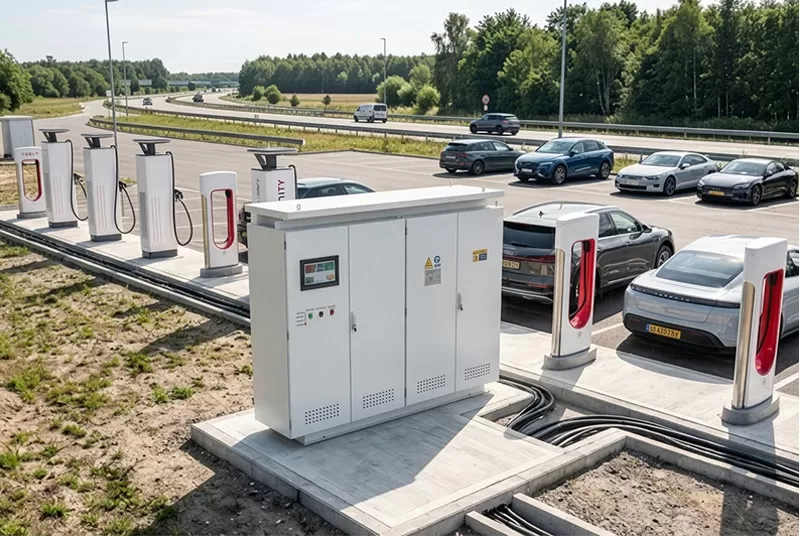

Expressway Service Area：Concentrating power for multiple ultra-fast chargers, this 1200A Main Distribution Board for Public EV Stations delivers balanced voltage, unified overcurrent protection, and rapid leakage tripping for high-volume transit stops.

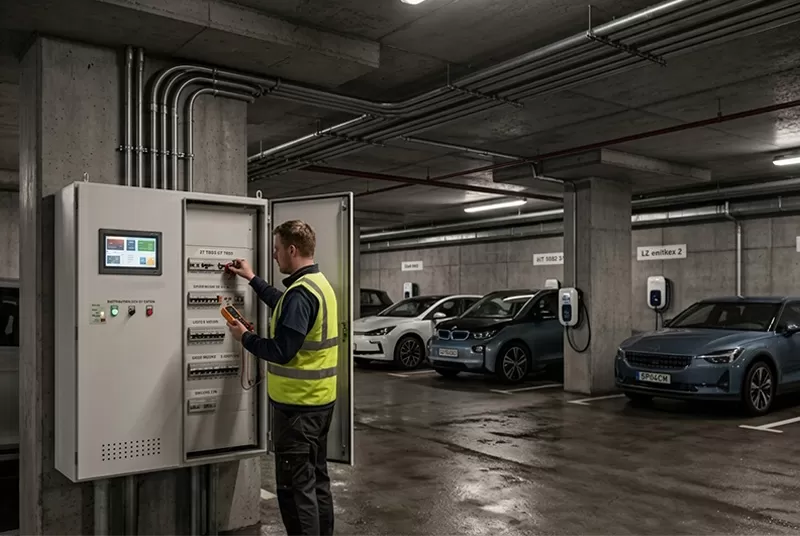

Commercial Underground Garage： Managing dozens of AC chargers, the 400V AC Distribution Cabinet for Commercial EV Fleets utilizes independent branch breakers, allowing technicians to isolate individual chargers for maintenance without interrupting shopping center power.

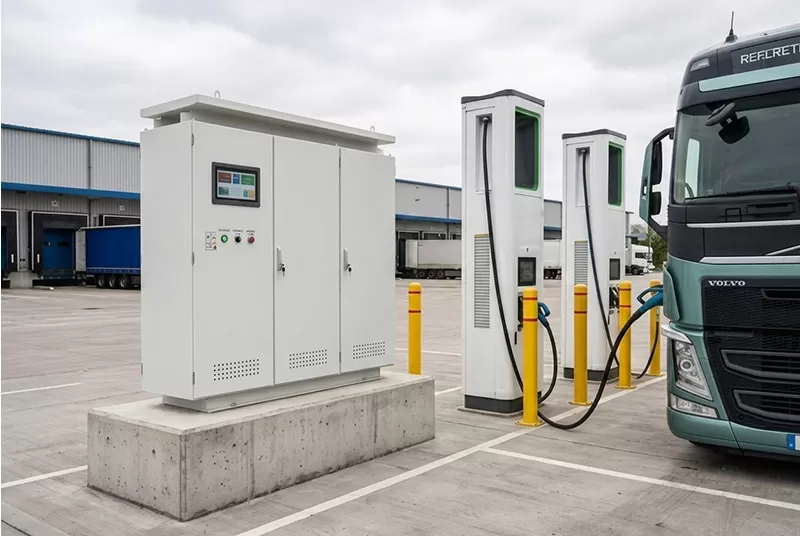

Logistics Park：Paired with DC Fast Charging Station Low Voltage Switchgear, this Dynamic Load Balancing EV Distribution Cabinet manages heavy-duty fleet charging demands, balancing high-power DC loads to maintain grid connection stability.

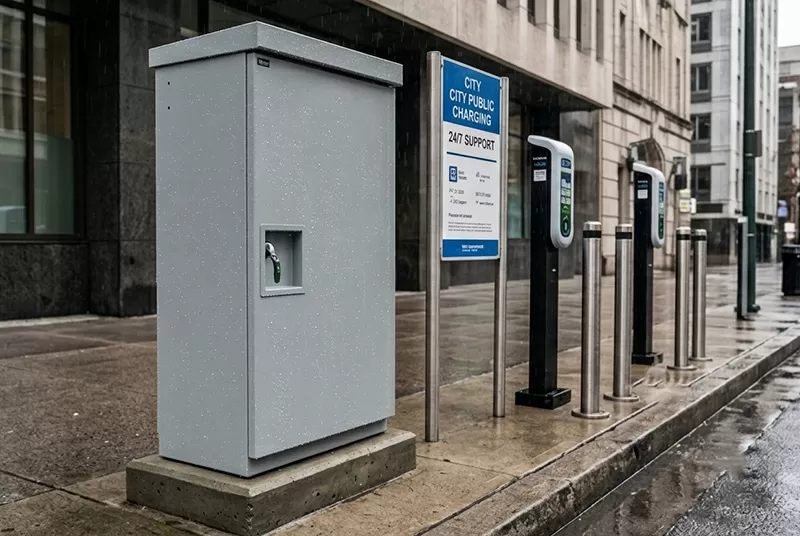

Public Outdoor Charging Station：Enclosed as an Outdoor IP55 EV Charging Protection Board, the EV Charging Feeder Pillar provides all-weather enclosure protection, safeguarding sensitive metering and distribution circuits against rain, dust, and temperature swings.

Applications Need EV Charging Station Distribution Panel

Get support from our experts

Custom Options for EV Charging Station Distribution Panel

Get support from our experts

Why Choose Our Product

Centralized protection safeguards multiple charging piles efficiently

Dynamic load management prevents severe grid overload tripping

Weatherproof IP55 construction guarantees long-term outdoor reliability

Pre-wired modular interior significantly simplifies on-site installation

Precision smart metering supports transparent energy cost allocation

Rapid branch isolation allows safe, independent charger maintenance

EV Charging Station Distribution Panel Manufacturing Process

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

What is EV Charging Station Distribution Panel?

An EVSE Power Distribution Switchgear serves as the central electrical distribution node connecting utility supply transformers to multiple EV charging units. Utilizing a Low Voltage EV Infrastructure Panel architecture, it monitors voltage stability, current draw, and earth leakage continuously. If an electrical fault occurs at an individual charger, the panel trips the affected branch breaker instantly, keeping remaining charging points operational.

View Complete Solutions

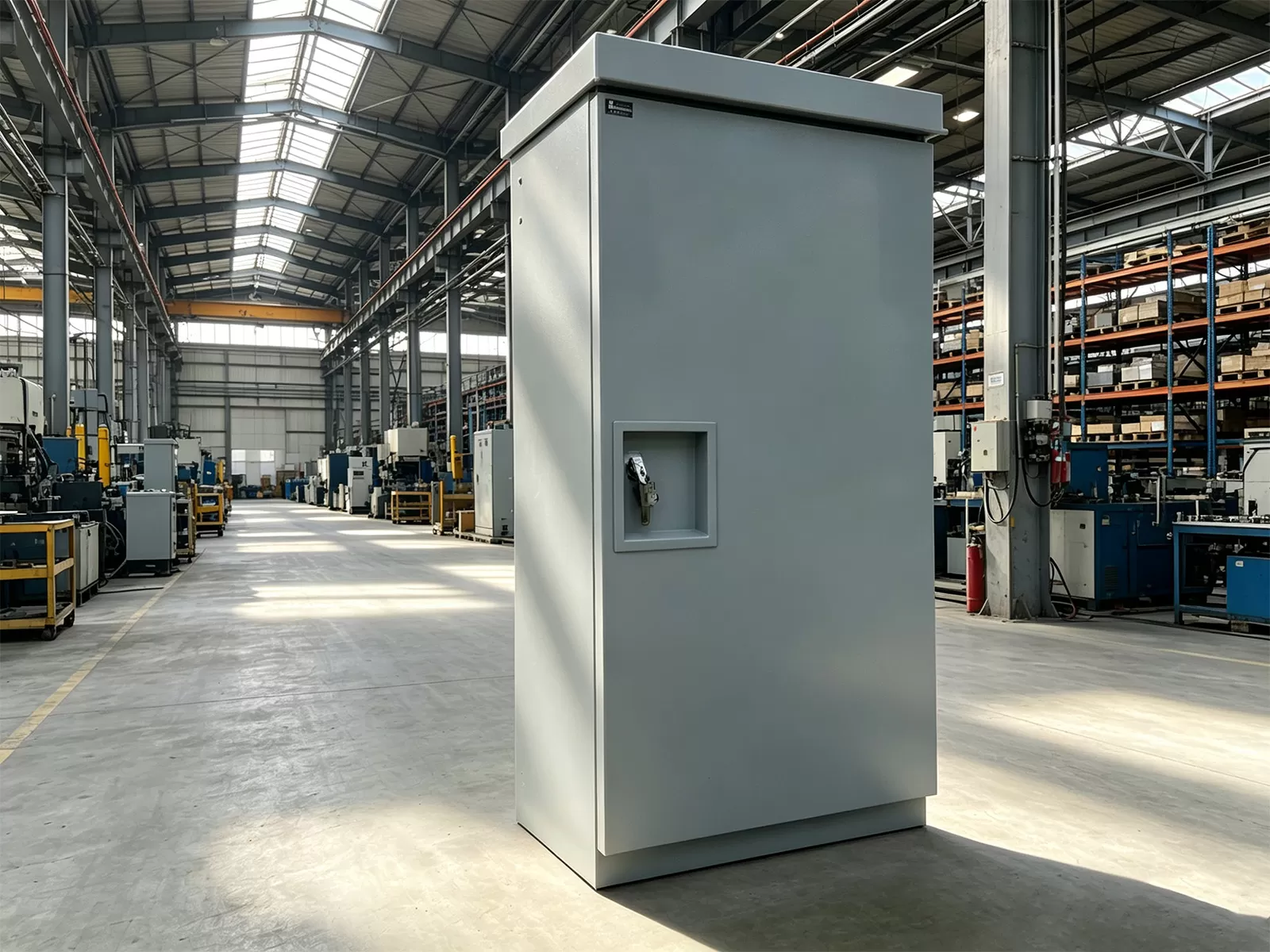

How to Select EV Charging Station Distribution Panel?

Selecting the right distribution panel requires evaluating total charging station capacity, peak concurrent loads, and future expansion needs. Heavy-duty public charging hubs require a 1200A Main Distribution Board for Public EV Stations to manage high incoming currents, while commercial site operations demand a 400V AC Distribution Cabinet for Commercial EV Fleets. For outdoor sites, select an Outdoor IP55 EV Charging Protection Board with a Dynamic Load Balancing EV Distribution Cabinet system. For ultra-fast charger hubs, ensure integration with DC Fast Charging Station Low Voltage Switchgear.

Product Comparison & Specifications

Feature / Parameter	EV Charging Station Distribution Panel	Standard Low Voltage Distribution Panel
Primary Application	EV charging infrastructure & chargers	General industrial & building loads
Dynamic Load Balancing	Integrated real-time load management	Not supported
Smart Energy Metering	Integrated multi-channel smart metering	Standard analog / basic digital meter
Rated Busbar Current	Up to 1200A high-capacity busbar	100A – 800A standard busbar
Ingress Protection (IP)	Outdoor IP55 weather-resistant rating	Indoor IP20 – IP42
Protection Modules	Type B RCD, SPD & overcurrent protection	Basic MCCB / MCB protection
DC Fast Charging Support	Dedicated DC fast charger switchgear	Limited or unoptimized

FAQs About EV Charging Station Distribution Panel

Q: What does a Dynamic Load Balancing EV Distribution Cabinet do?

A: It dynamically adjusts power distribution among active chargers based on total grid capacity, preventing main breaker trips during peak hours.

Q: Why is an Outdoor IP55 EV Charging Protection Board required?

A: An IP55 rating ensures complete dust protection and resistance to rain, safeguarding internal switchgear in harsh outdoor environments.

Q: Can it support both AC chargers and DC fast chargers?

A: Yes, it can feed AC slow chargers and integrate with DC Fast Charging Station Low Voltage Switchgear simultaneously.

Q: What is the benefit of an EV Charging Control Panel with Smart Metering?

A: It monitors individual charger power usage accurately, enabling real-time billing, energy auditing, and remote telemetry tracking.

Q: When should a 1200A Main Distribution Board be specified?

A: A 1200A rating is essential for large-scale public charging hubs running multiple high-power DC fast chargers concurrently.

Q: Does it allow independent charger maintenance?

A: Yes, individual branch circuit breakers allow operators to isolate and repair a single charger without shutting down the entire station.
