33/36kV Gas Insulated Switchgear

The premier 33kV Gas Insulated Switchgear offers an elite, high-performance solution for modern electrical networks requiring uncompromising reliability. Engineered as a robust 36kV GIS Switchgear, this advanced equipment integrates state-of-the-art protection technologies to manage high-voltage distribution with incredible precision. By deploying this sophisticated Medium Voltage Gas Insulated Switchgear, critical industrial facilities achieve maximum grid stability and long-term operational excellence, making it the essential choice for safely regulating energy flow within high-demand power infrastructure globally.

Meet Latest Innovation

33kV/36kV Medium Voltage Gas Insulated switchgear Applications & Solutions

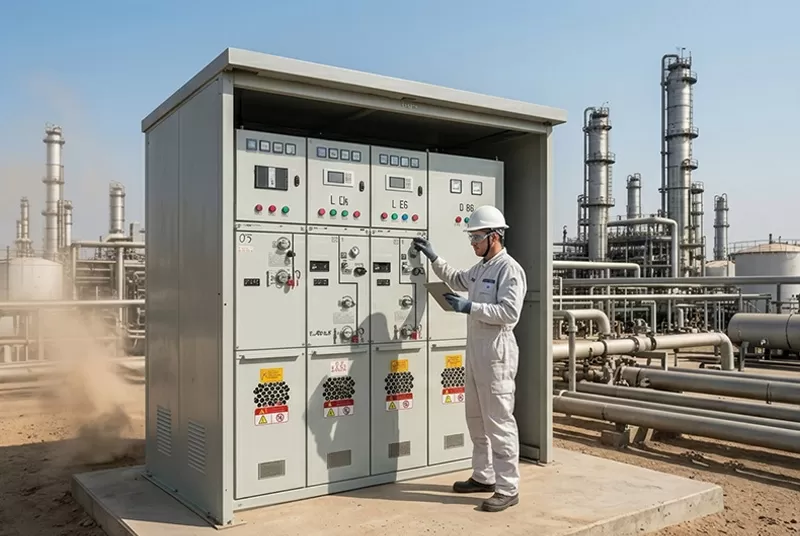

Chemical Industrial Park：This switchgear uses a sealed gas chamber to block corrosive gases and moisture. It centrally manages factory power, ensuring instant fault protection for heavy motors and pump groups.

New Energy Power Station： It aggregates output from multiple wind or solar units, performing voltage regulation and grid protection. The sealed enclosure resists harsh desert temperatures and dust, ensuring low maintenance.

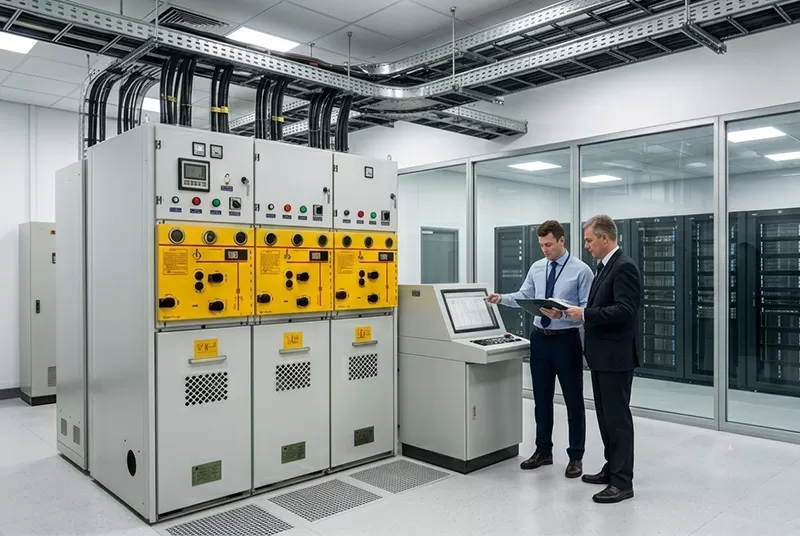

Large Data Centers：As the core high-voltage entry point, it provides dual-redundant power for critical UPS and transformers. It enables 99.999% uptime by instantly isolating faults before server data loss occurs.

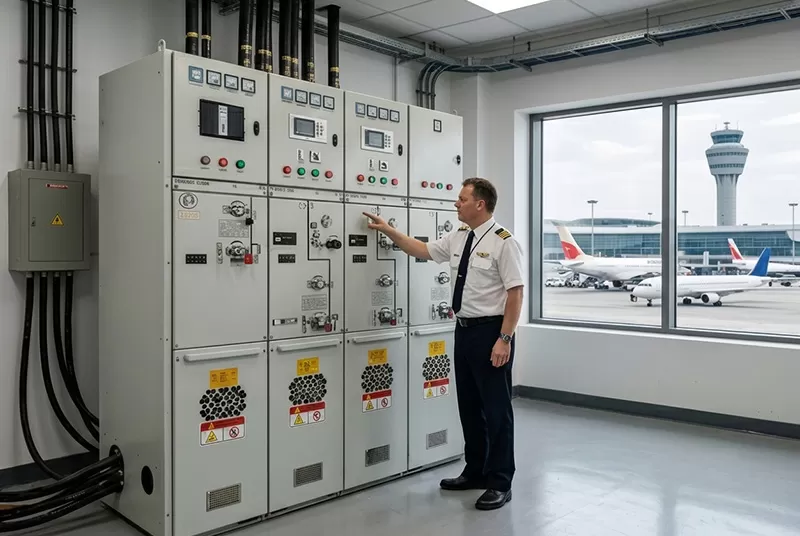

Transportation Hub：Serving airports and transit stations, this equipment manages dense energy loads for lighting, air control, and emergency systems, offering high insulation security for dense public spaces.

Applications Need 33kV/36kV Medium Voltage Gas Insulated switchgear

Get support from our experts

Custom Options for 33kV/36kV Medium Voltage Gas Insulated switchgear

Get support from our experts

Why Choose Our Product

Fully sealed gas tank prevents all environmental contamination

Ultra-compact architecture saves valuable electrical substation floor space

SF6 insulation ensures superior, long-term dielectric performance stability

Modular design enables rapid, safe future grid expansion

Maintenance-free internal components drastically lower operational lifetime costs

Advanced mechanical interlocks guarantee absolute personnel safety daily

33kV/36kV Medium Voltage Gas Insulated switchgear Manufacturing Process

Busbar Insulation & Initial Installation

Know more about our production Visit our factory

Xdepe Certification

Trusted Partner

"We've partnered with Xdepe for years on custom distribution cabinet packages and power solutions. Their designs fit factory needs perfectly, with efficient workflow from design to delivery. Cabinets are durable, standard-compliant and steady in operation. The team delivers on time with proactive optimization advice, offering one-stop service from component selection to assembly and after-sales support."

Ka* E**d

"Xdepe has long undertaken custom electrical panel large industrial power distribution projects with solid reliability. It optimizes solutions to balance practicality, energy saving and cost control. Modular cabinets allow easy installation and maintenance. With fair pricing and on-time delivery, technical support is available 24/7, highly recommended for the industry."

Ah** Ha*n

"Xdepe fully meets strict standards for distribution cabinets. It fits harsh working conditions and connects seamlessly with smart energy systems. The cabinets excel in safety protection, insulation and corrosion resistance with stable performance. Responsible service throughout all stages helps reduce energy consumption and operating costs, making it an ideal long-term partner."

Ca* Me**z

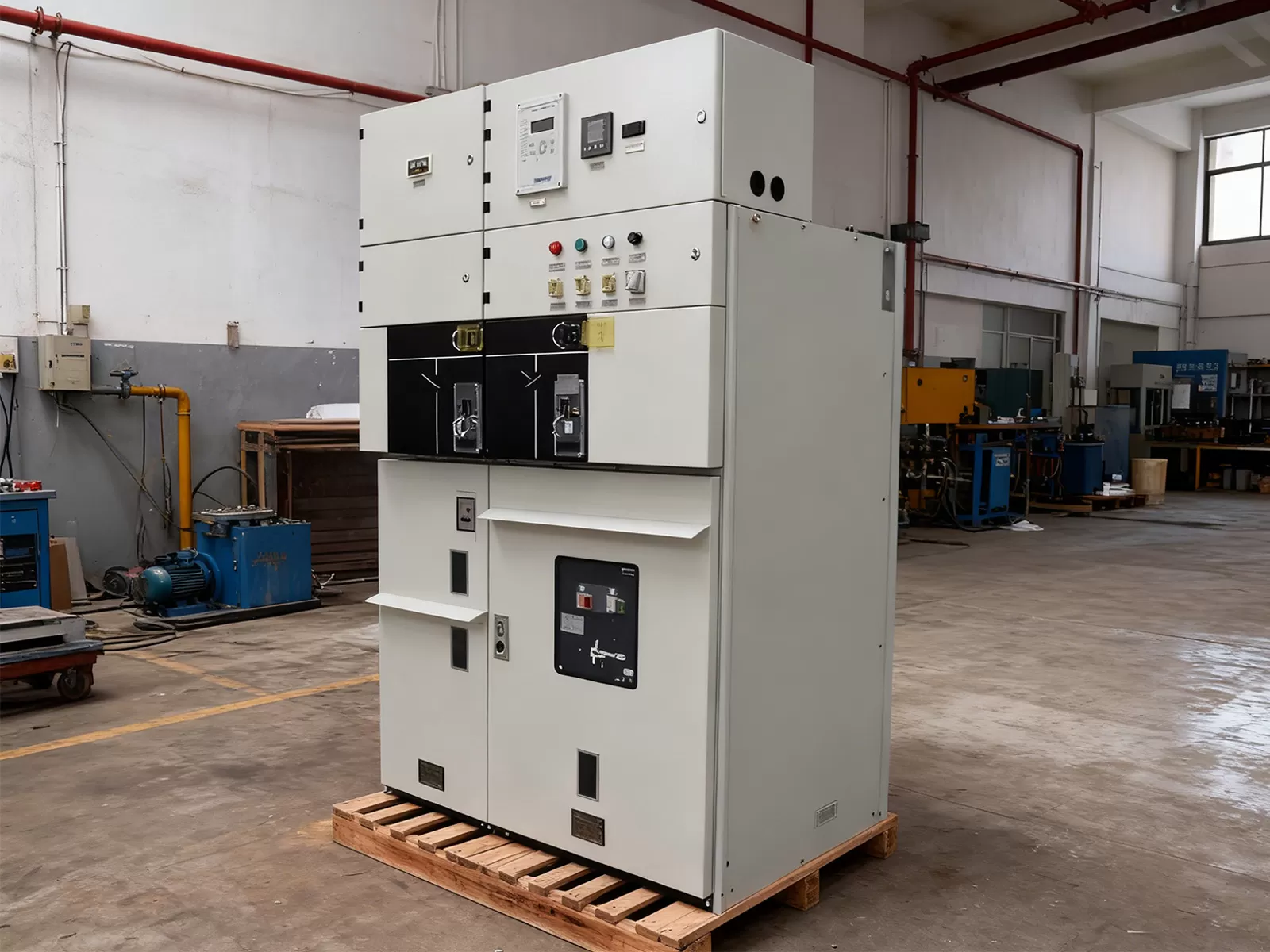

What is 33kV/36kV Medium Voltage Gas Insulated switchgear?

This high-efficiency Compact 33kV/36kV Medium Voltage Gas Insulated switchgear functions as a centralized hub for primary grid power. Operating as a dependable SF6 Insulated Switchgear , it uses inert gas to effectively insulate all critical live components. Combined with a robust 33kV MV Switchgear configuration, the assembly provides an impenetrable protective barrier against massive short-circuit currents while establishing a clean, secure connection for high-voltage power distribution networks.

View Complete Solutions

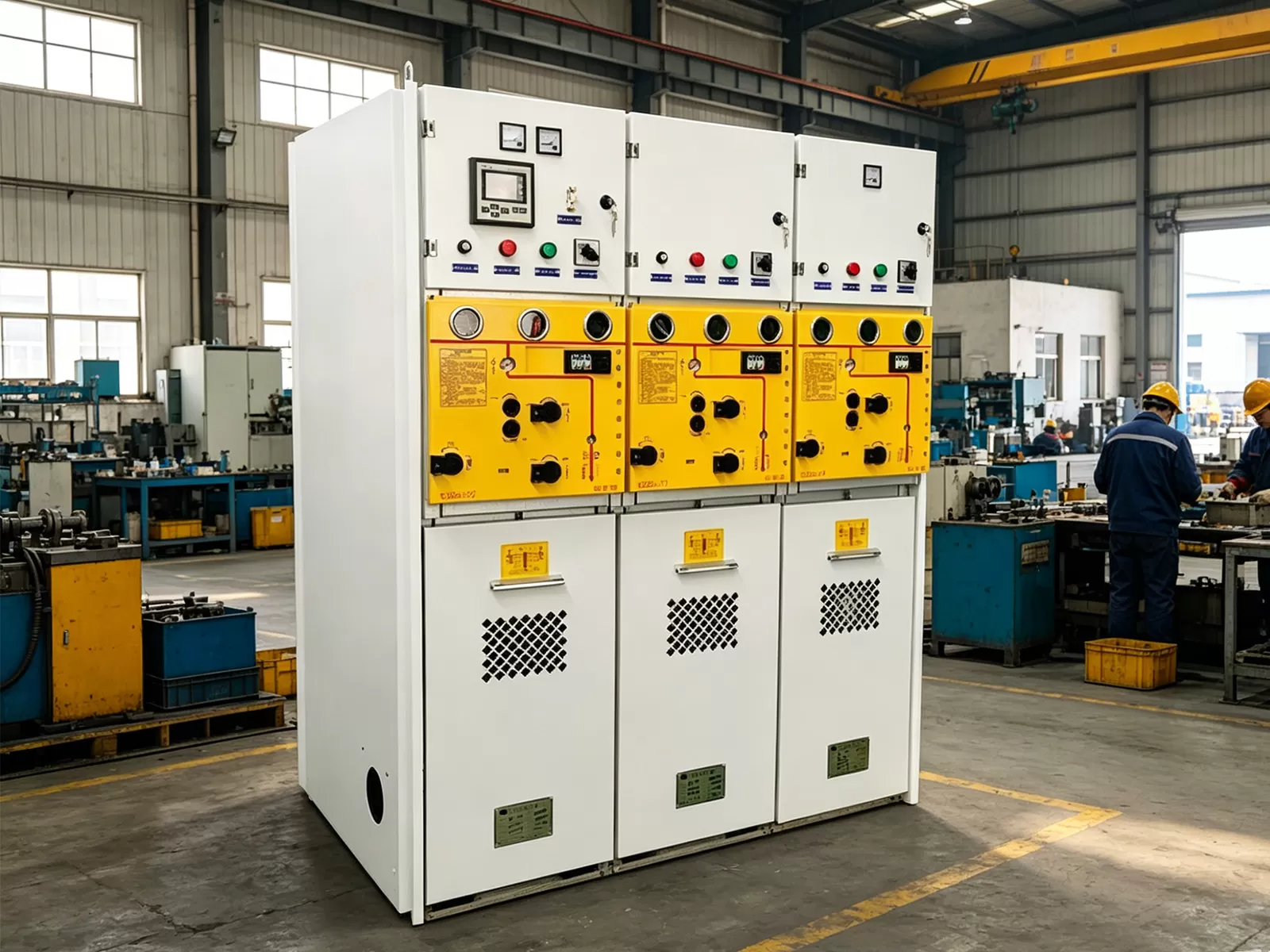

How to Select 33kV/36kV Medium Voltage Gas Insulated switchgear?

Selecting the optimal system requires carefully evaluating your localized grid requirements and peak load profiles. For facilities demanding absolute reliability, selecting a Modular 33kV/36kV Medium Voltage Gas Insulated switchgear configuration is essential to allow for flexible future infrastructure scaling. Additionally, ensure the system incorporates an Indoor 33kV/36kV Medium Voltage Gas Insulated switchgear setup to guarantee superb physical protection against moisture. For massive renewable projects, choose a 33kV/36kV Medium Voltage Gas Insulated switchgear for Renewable Energy Substations to ensure seamless grid integration, and for critical municipal utility hubs, always implement a 33kV/36kV Medium Voltage Gas Insulated switchgear for Grid Power Distribution to ensure total system uptime.

Key Technical Parameters & Application Scope

Technical Parameter	Specification Value	Operational Significance
Rated Voltage	33kV / 36kV	Supports large-scale regional grid distribution safely.
Insulation Medium	SF6 Gas	Provides exceptional dielectric strength in compact spaces.
Protection Degree	IP67	Blocks all dust, moisture, and hazardous contaminants.
Short-Circuit Rating	25kA / 3s	Withstands and clears massive thermal electrical faults.
Service Life	30+ Years	Ensures long-term infrastructure investment security.
Maintenance	Virtually Zero	Minimizes routine technician inspection and labor costs.
Operation Type	Motorized/Manual	Supports both local and remote automated control.

FAQs About 33/36kV Gas Insulated Switchgear

Q: What is the primary insulation medium?

A: It utilizes high-purity SF6 gas, providing superior electrical insulation and arc-quenching performance within a compact, fully sealed enclosure.

Q: Is this equipment suitable for outdoor use?

A: No, it is strictly designed for installation in indoor substations or climate-controlled electrical control rooms for maximum reliability.

Q: How does it improve grid safety?

A: Its fully sealed, grounded tank design completely eliminates accidental contact risks and prevents internal arc propagation during faults.

Q: Can it be integrated into smart grids?

A: Yes, it supports digital SCADA systems for seamless remote telemetry, automated monitoring, and real-time operational fault analysis.

Q: What maintenance is required?

A:The primary gas-insulated compartments are maintenance-free, drastically reducing routine inspection requirements compared to traditional air-insulated systems.

Q: Is it space-efficient?

A: Absolutely, its compact design drastically reduces the required footprint, saving significant substation floor space in high-density urban areas.
